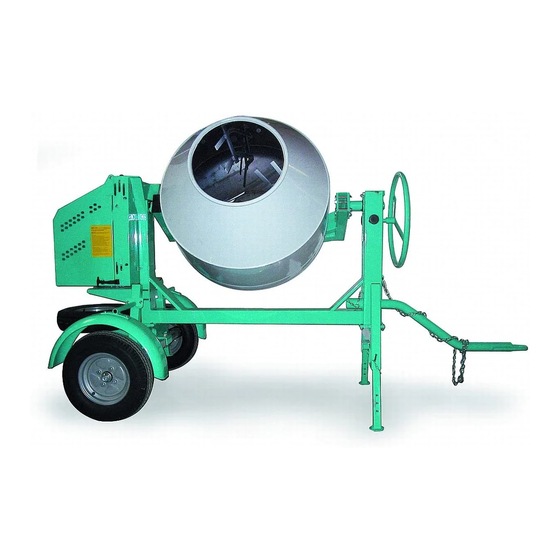

- Page 1 U.S.A. inc. WORKMAN 350 II MULTIMIXER Model 1105855 MANUAL INSTRUCTION PARTS LIST Manual Part. number 3209281_R05 - 2005/03 Write in the serial n° of yuor machine here Machine serial N°...
- Page 2 IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER Thank-you for purchasing a Workman 350 II from an Imer U.S.A. dealer. Your decision is an intelligent one. There is no other concrete mixer in the world which delivers the benefits and features of the Workman 350 II.
-
Page 3: Table Of Contents
IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER IMER U.S.A., INC. WORKMAN 350 II MULTIMIXER INSTRUCTION MANUAL NOTE: Please read this manual before beginning to assemble or operate this piece of equipment. ASSEMBLY ..................4 IMPORTANT NOTES AND ADVICE ..........5 OPERATING INSTRUCTIONS ............ -
Page 4: Assembly
ASSEMBLY TOWING Essentially the Workman 350 II is fully assembled and ready to operate when it leaves the assembly facility here at Imer U.S.A. However, there are a couple items which should always be checked before towing the Workman 350 II. -
Page 5: Important Notes And Advice
Workman 350 II In the interest of safety, whoever uses the Workman 350 II should first read this manual and become familiar with all of the important safety notes. Failure to follow this advice may result in injury to yourself and others. - Page 6 Allow other persons around the mixer while it is operating DO NOT Operate the Workman II 350 if you are uncertain as to how to run the machine..Contact your local Imer Distributor or call Imer U.S.A. at (800) 275-5463...
-
Page 7: Operating Instructions
IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER OPERATING INSTRUCTIONS 1. Before starting the engine read the Honda manual provided and become familiar with the GX160 powerplant. Especially important is to check the oil level daily and change it monthly. Additionally, cleaning the air filter weekly ensures consistently good performance. -
Page 8: Maintenance
2. Essentially the gearbox is sealed for life.The quality of the gears and the lubricant are such that changing the oil is not necessary. If you want to change the oil,see your dealer or call IMER U.S.A directly for instruction. - Page 9 - to place the drum on the shaft cone, making sure that shaft shear pin is inside its seat in the drum cone. - to block drum tighting screw with washer by following tighting torques: Workman 350 II: 300 ± 20 Nm. - 9 -...
-
Page 10: Basic Trouble Shooting - Technical Specifications
79" x 50" x 66" Overall Storage Dimensions 79" x 50" x 66" Weight 545 LBS (248 Kg) *Capacity based upon usable volume Due to Imer U.S.A. 's commitment to Reasearch and Development, specifications are subject to change without notice. - 10 -... -
Page 11: Spare Parts
IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER SPARE PARTS DRAWING 1.3 (WORKMAN II 350 CONCRETE MIXER - 1105855) Ref. P.n. Main Description NOTES 3209275 MAIN FRAME 3209277 TOW BAR 3209183 3206635 DRUM ASS'Y 3210467 T-BOLT 3210466 T-BOLT WASHER 3209954 STABILIZING FOOT... - Page 12 IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER DRAWING 1.3 WORKMAN II 350 CONCRETE MIXER - 12 -...
- Page 13 IMER U.S.A. Inc. WORKMAN 350 II MULTIMIXER TABLE 2 - GEAR BOX - WORKMAN II 350 (COD. 3210476) RIF. COD. NOTE 2222148 BOLT M10X65 Z 3213179 OIL SEAL 90X65X10 2222153 BOLT M10X100 Z 3209515 GEAR BOX CASE 3209811 GEAR BOX GASKET...
- Page 14 Office: (510) 670-7970 Fax: (510) 783-4255 We warrant to the original purchaser that the IMER equipment described herein (the "equipment") shall be free from defects in material and workmanship under normal use and service for which it was intended for period of one (1) year from the date of purchase by the original purchaser.
