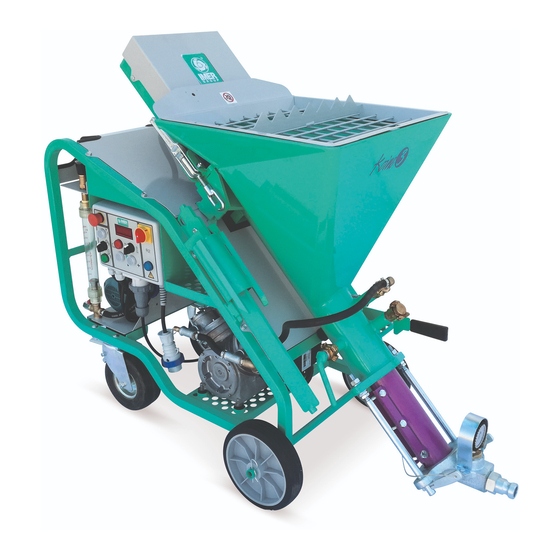

IMER KOINE 3 Operating, Maintenance, Spare Parts Manual

Mortar mixer
Hide thumbs

Advertisement

Quick Links

Download this manual
(1106007-1106008-1106009)
MORTAR MIXER
Operating,maintenance,spare parts manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KOINE 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMER KOINE 3

Summary of Contents for IMER KOINE 3

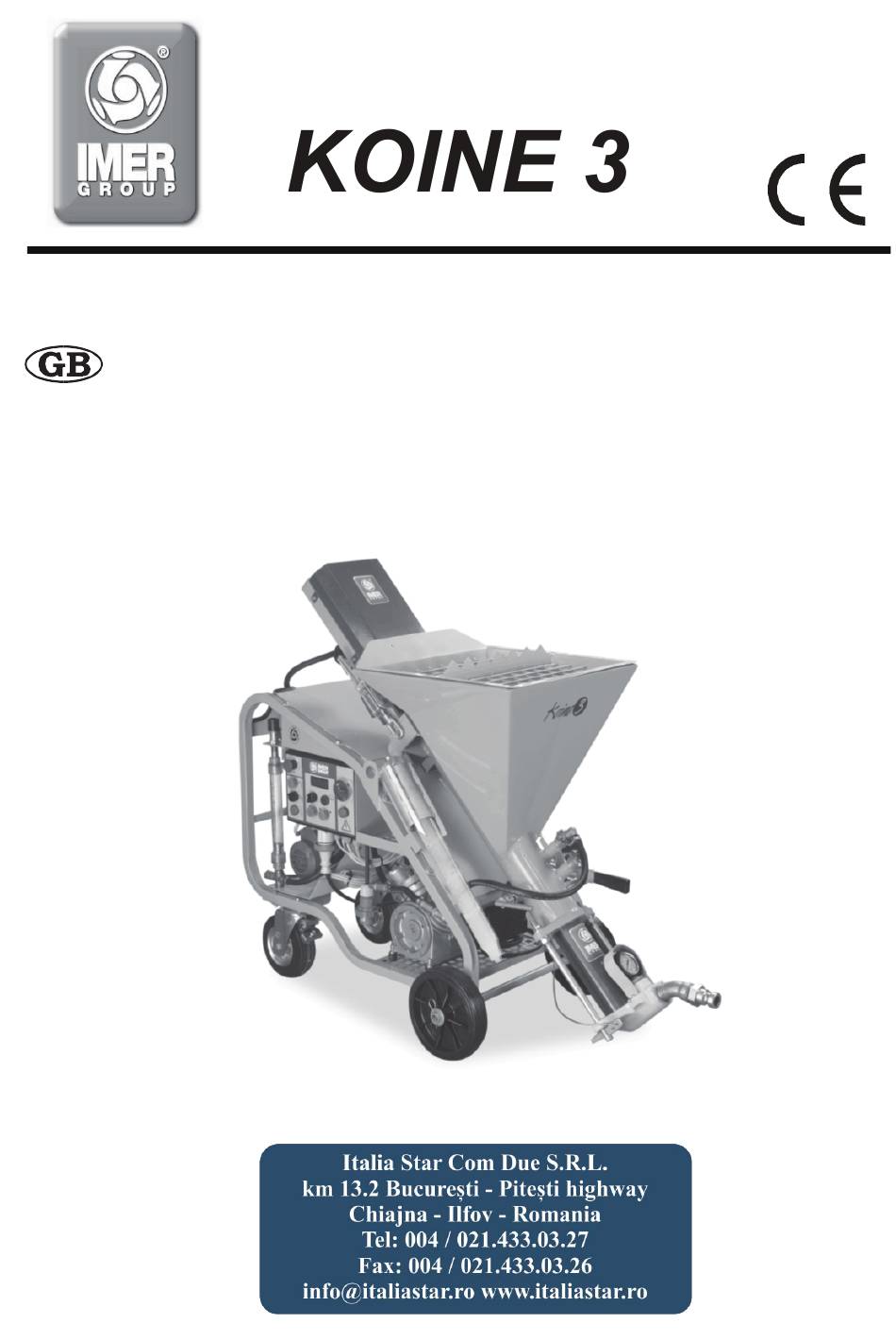

  • Page 1 (1106007-1106008-1106009) MORTAR MIXER Operating,maintenance,spare parts manual...

  • Page 2: Декларация За Съответствие

    Producator si titularul fisei tehnice: - Manufacturer and holder of the technical file: - Fabbricante e detentore del fascicolo tecnico: - производител и притежател на техническото досие: - Fabricante y el titular del expediente técnico: - A múszaki dokumentáció gyártója és birtokosa IMER International S.p.A Loc. Salceto, 53-55 - (53036) Poggibonsi - Siena -Italia Adresa: - Address: - Indirizzo: - Aдрес: - Direcciòn: - Cím:...
  • Page 3 IMER INTERNATIONAL S.p.A. KOINE 3 FIG. 1 ENGLISH 1-WHEELED FRAME 2-HOPPER UNIT 3-MOTOR UNIT 4-GRID 5-MATERIAL OUTFEED UNIT 6-WATER CIRCUIT 7-SELF-PRIMING PUMP 8-ELECTRICAL PANEL 9-COMPRESSOR IM250 10-AIR UNIT 11-SCRAPER...
  • Page 4 IMER INTERNATIONAL S.p.A. KOINE 3 - TA B L E - K O IN E 3 K O IN E 3 L T E C H N IC A L D AT A K O IN E 3 11 0 6 0 0 7...

  • Page 5: Water Circuit

    Table 1 provides the technical specifications of the plastering The plastering machine Koine 3 is constructed according to machine, with reference to figure 1. standard EN 60204-1, with protection against water sprays and protection against overload and power failure.
  • Page 6 IMER INTERNATIONAL S.p.A. KOINE 3 The hazardous points on the IMER plastering machine are pro- tected by means of suitable safety devices, which must remain fitted at all times and kept in perfect condition, such as the elec- tric motor cooling fan guard, the grid on the hopper to prevent...
  • Page 7 IMER INTERNATIONAL S.p.A. KOINE 3 Connect the water hose (table 1) from the pump to the water Take the material hoses and check that they are in perfect mains. condition, that the couplings are intact and all relative seals are The water mains must guarantee a minimum flow rate of present.
  • Page 8 IMER INTERNATIONAL S.p.A. KOINE 3...
  • Page 9 KOINE 3 To insert the screw in the stator, use the lubricant spray available from IMER. Never use mineral oil or grease for screw assembly as this may damage the stator. Avoid all types of benzene. In the case of a power failure during operation promptly wash the machine and pipes.
  • Page 10 Every six months arrange for an inspection of the machine by an authorised IMER service centre. Repairs to the electrical installation must be performed exclusively by specialised personnel. Use exclusively original IMER spare parts; modifications to parts are strictly prohibited.
  • Page 11 IMER INTERNATIONAL S.p.A. La macchina non parte Acqua Machine does not start Material Machine does not start Machine does not start Grid Machine does not start Electrical current and compressor does not start and the blue light is Machine does not start but...
  • Page 12 IMER INTERNATIONAL S.p.A. KOINE 3 INDICATOR LAMP TABLE BLUE (ref. 2) Power supply OK, line present - No electric power supply - no line - Main switch set to 0 RED (ref. 6) Grid not fitted correctly - Grid fitted correctly GREEN (ref.
  • Page 13 IMER INTERNATIONAL S.p.A. KOINE 3 Fig.1 Tav.1...
  • Page 14 IMER INTERNATIONAL S.p.A. KOINE 3 FROM SE RIAL NUMBER TAV. 1 - MAC H IN E S TR U C TU R E - Rif. C od. N o te 3224886 F RA ME 3224947 HOP PE R 3227781 MA NIF OLD...
  • Page 15 IMER INTERNATIONAL S.p.A. KOINE 3 3229155 QUADRO ELETTRICO FROM SERIAL NUMBER 3007858 Fig.3 Tav.3...
  • Page 16 ASSEMBLY BLUE +LED 24 VDC 24 VDC 230V 2P+T 16A 6H 3203504 PLUG IP67 380-415V 6P+T 6H 3226203 SOCKET 6P+T IP67 KOINE 3 230V 3229162 INVERTER COVER 3230320 CONTACTOR INVERTER CARD 3229204 STEP 230V 3226120 MAGNETIC SENSOR COMPLETE MOTOR 3226119...
  • Page 17 IMER INTERNATIONAL S.p.A. KOINE 3 COMPRESSOR IM250 230V-50HZ 0.75Kw COMPRESSOR IM250 220V-60HZ 0.9Kw Fig.4 Tav.4...
  • Page 18 IMER INTERNATIONAL S.p.A.
  • Page 19 IMER INTERNATIONAL S.p.A. TAV. 4 - - COMPRES SOR IM250 230V - 50H Z 0.75Kw - - COMPRESSOR IM250 220V - 60HZ 0.9Kw - Rif. Cod. N ote F ROM T O SE R IAL NU MBE R 3235673...
  • Page 20 IMER INTERNATIONAL S.p.A. KOINE 3 Fig.5 Tav.5...
  • Page 21 IMER INTERNATIONAL S.p.A. KOINE 3 FROM SERIAL NUMBER TAV. 5 - -HYDRAULIC UNIT- Rif. Cod. Note 3223730 RING NUT 1/2" 3223619 NIPPLES M.M 1"-1/2" 3224207 WATER PUMP NGXM2 230V 50Hz 3229344 WATER PUMP NGXM2 220V 60Hz 3223630 PRESSURE SWITCH 1-5 BAR...
  • Page 22 IMER INTERNATIONAL S.p.A. KOINE 3 GRUPPO ARIA GRUPPO ARIA KOINE 3 Rif. Cod. Note 1/4" 3223630 PRESSURE SWITCH CIL.1-5 BAR 3223632 BRANCH FITTING M 1/2" L=50mm 3223730 RING NUT M.F 1/2" 3224169 HOSE CLAMP F 1/2" D.13 3224203 QUICK CONNECTOR M 1/2"...
  • Page 23 IMER INTERNATIONAL S.p.A. KOINE 3 1107005: KIT MALTA PREMISCELATA TAV. 1107005:KIT MALTA PREMISCELATA TRADIZIONALE Rif. Cod. Note 1107540 SPRAY JET 1107551 N°10 DUSE D10 N°10 WASHING SPONGE 1107519 N°5 TRADITIONAL 1107558 DEFLECTOR D12 3223694 NOZZLE CLEANER D4.5 15m MATERIAL HOLDER...
  • Page 24 IMER INTERNATIONAL S.p.A.
  • Page 25 IMER INTERNATIONAL S.p.A.
  • Page 26 IMER INTERNATIONAL S.p.A. KOINE 3 MACHINE REGISTER ,TESTS AND MAINTENANCE - MACHINE PART TESTS RESULTS, NOTES AND SIGNATURE OF COMPILER DATE PLACE OF INSTALLATION...

  • Page 27: Certificat De Garantie

    CERTIFICAT DE GARANTIE Seria AA Nr. ___________ Nume marca produs:_______________________ Model : _________________________________ Seria nr.:________________________________ Accesorii:________________________________ Vanzator:________________________________ Semnatura si stampila: _____________________ Cumparator:_____________________________ Adresa :_________________________________ Data cumpararii: __________________________ Semnatura/stampila: ___________________________ : ........ISTRIBUITOR : ............ : ..........DRESA Prin prezenta confirm ca am primit produsul in perfecta stare de functionare impreuna cu ghidul de utilizare in limba romana si am luat la cunostiinta ca prezentul certificat de garantie este valabil numai insotit de factura de achizitie si de bon fiscal sau chitanta.
  • Page 28 · Aparatul prezinta deteriorari cauzate de accidente mecanice, lovituri, socuri, patrunderi de lichide, expuneri la foc, utilizare gresita sau neglijenta, schimbari ale starii aparatului, pastrarea in conditii improprii – functionarea repetata in regim de mari diferente de temperatura care cauzeaza fenomenul de “condens” intern, expunerea excesiva la umezeala sau radiatii solare, neglijenta in utilizare;...
