- Page 1 4200 Series Getting Started Guide Software & Documentation To download software, the 4200 Series User Manual, and other supporting documentation scan the QR code here or on the tester to visit downloads.cirris.com. downloads.cirris.com...
-
Page 2: Getting Started

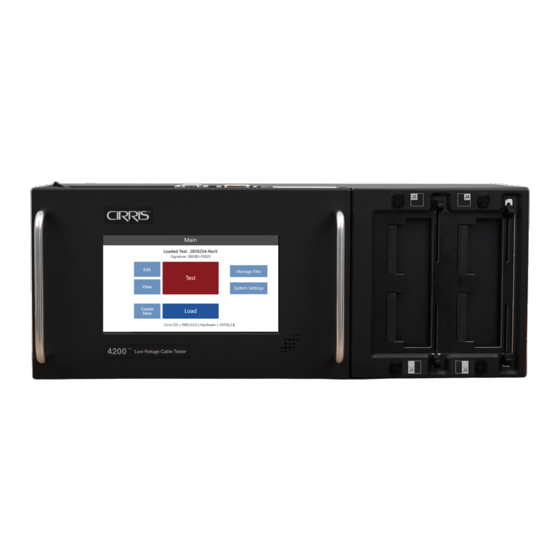

Getting Started Cirris 4200 Series Testers combine thorough and flexible testing capabilities with a simple, touchscreen user interface for ease of operation. This guide will help the new user set up the tester and become familiar with its operation by working through the process of creating a test program and testing a cable. -
Page 3: Intended Use
New Cirris testers ship with a Certificate of Calibration valid for one year. Cirris recommends that the calibration be validated annually at a minimum thereafter. The validation can be performed by Cirris or by the end user or a calibration service provider using a 4200/4250 Performance Verification Kit. Contact your Cirris sales representative for more information. - Page 4 Power Supply and Cord ☐ Certificate of Calibration ☐ WiFi Antenna You may have also received: ■ Expansion Scanners ■ Performance Verification Kit ■ Cirris Adapters ■ Smart USB to Serial Printer Cable ■ Tilt Stand ■ Label Printer Cirris...
-
Page 5: Hardware Setup
Printer/Serial 2 Networking While it’s not required to operate the tester, installing the included Cirris Hub software on a PC allows the tester to take advantage of its built-in Ethernet or WiFi networking capability to perform a variety of tasks including: ●... -
Page 6: System Settings
There are three system settings that should be changed or confirmed initially. On the Main Menu, select System Settings. Several alternate languages are available for the 4200 Series user interface. To change the default language, select an alternate from the drop down box at the top of the screen. -
Page 7: Adapter Installation
(a complete list can be found on the Cirris web site). However, if the DUT includes connectors that have no direct adapter mates, test cables can be used to connect the connector on a standard Cirris adapter to the DUT connector. - Page 8 Signature: XXXXXX-00000 Manage Files Edit Test System Settings View Create Load Cirris 4250 Tester | SN: XXXXXXXX Calibration Verified: MM-DD-YY | Due: MM-DD-YY Operator: 3. Press Edit Learn Settings to Create New Test adjust settings per the cable Learn Settings specifications.
-
Page 9: Perform A Learn
Verify and Save Learned Test Program screen. Review the program and verify that the settings are correct and that the connections and any components match the documentation for the DUT. 4200 Series Getting Started Guide... - Page 10 1. Navigate to a location Manage Files within the directory to save the test program. If using NewTest.wir the Cirris Hub Software, New Folder saving files to the network Delete location (F:) will allow other Copy / Move networked testers to use the test program also.
- Page 11 “Failed” and the error details will appear in the test window. For more information on errors, refer to the 4200 Series User Manual. 7. When the test is complete, disconnect the DUT from the tester. The test screen will reset and be ready for the operator to connect another cable, or press Done to return to the Main Menu.
-
Page 12: Help & Support
Warranty Cirris Inc. warrants new products manufactured by Cirris Inc. to be free from de- fects in material and workmanship for a period of twelve months. Products not manufactured by Cirris Inc. are warranted by their manufacturer. Cirris Inc. at its option will repair or replace faulty goods and is not responsible for any conse- quential loss incurred due to faulty goods.
