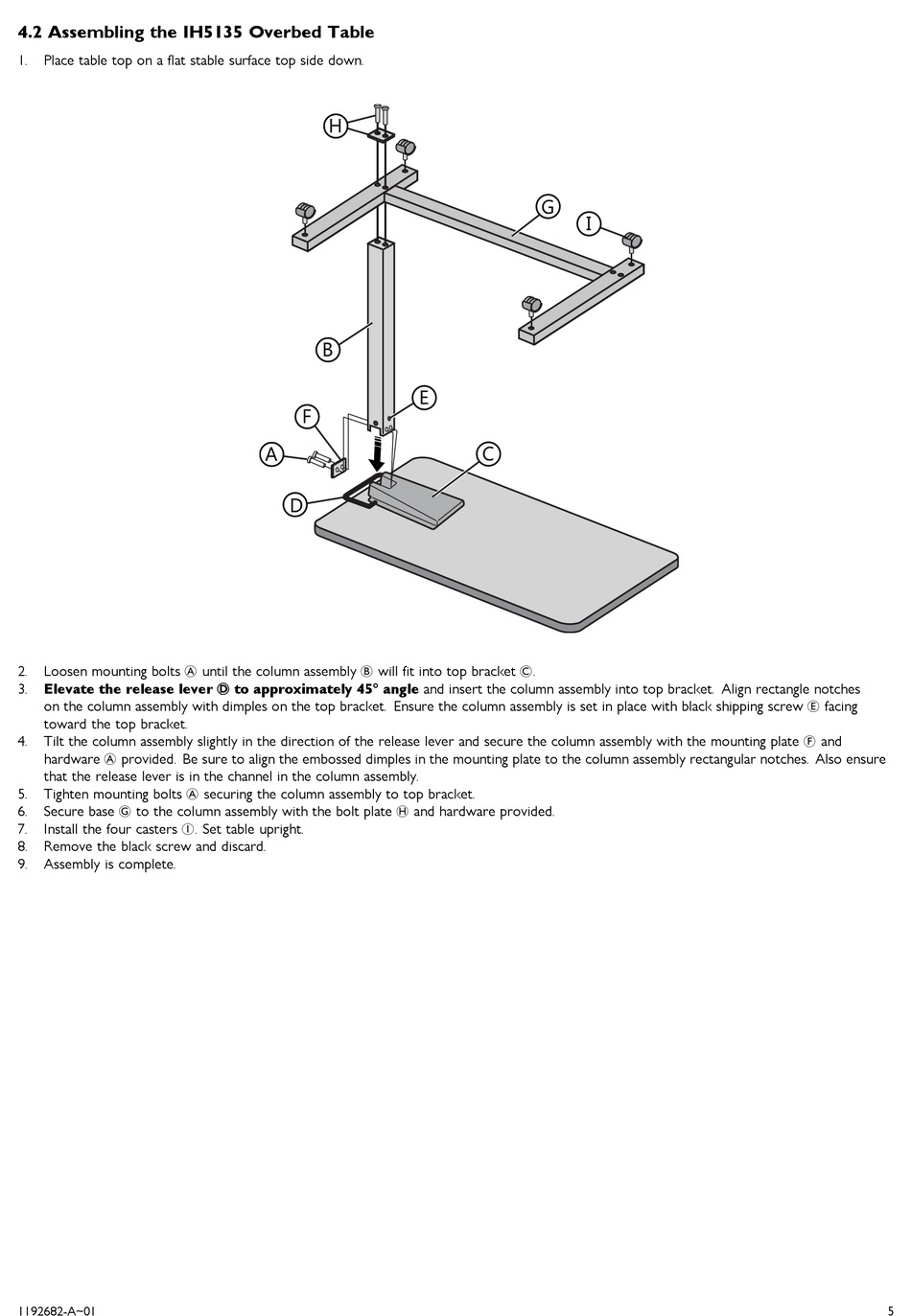

4.2 Assembling the IH5135 Overbed Table
1. Place table top on a flat stable surface top side down.
2. Loosen mounting bolts A until the column assembly B will fit into top bracket C.
Elevate the release lever D D D to approximately 45° angle and insert the column assembly into top bracket. Align rectangle notches
3.
on the column assembly with dimples on the top bracket. Ensure the column assembly is set in place with black shipping screw E facing
toward the top bracket.
4. Tilt the column assembly slightly in the direction of the release lever and secure the column assembly with the mounting plate F and
hardware A provided. Be sure to align the embossed dimples in the mounting plate to the column assembly rectangular notches. Also ensure
that the release lever is in the channel in the column assembly.
5. Tighten mounting bolts A securing the column assembly to top bracket.
Secure base G to the column assembly with the bolt plate H and hardware provided.
6.
Install the four casters I. Set table upright.
7.
8. Remove the black screw and discard.
9. Assembly is complete.
1192682-A~01
H
B
E
A C
5
