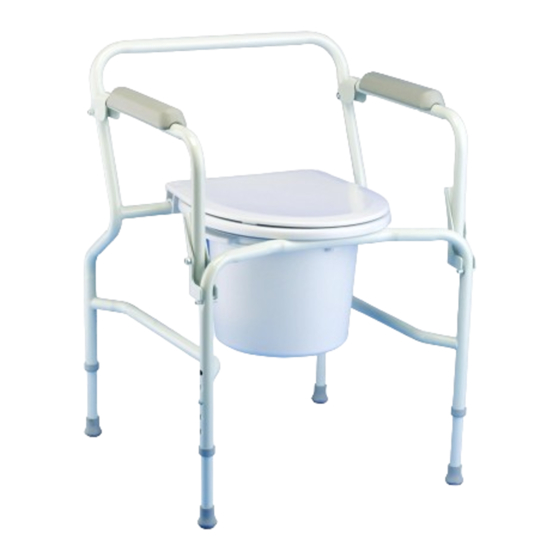

Drop arm commode

Advertisement

Quick Links

Drop Arm Commode
Installation Instructions
Model No. 9669
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact
Carrier/Invacare for further instructions.
Safety Summary
To ensure the safe and proper installation of the Drop Arm Commode, these instructions
MUST be followed:
WARNING
DO NOT use this equipment without first reading and understanding this instruction
sheet. If you are unable to understand the warnings, cautions and instructions,
contact a healthcare professional, dealer or technical personnel if applicable, before
attempting to install this equipment - otherwise, injury or damage may occur.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
Snap buttons MUST be fully engaged and aligned in the proper height adjustment
hole of each leg before use. This ensures that the legs are securely locked and an
even height adjustment is achieved.
Make certain all screws, nuts and/or bolts are tight at all times.
Inspect rubber tips on the leg extensions for rips, wear or if they are missing. Replace
them immediately if any of these conditions exist.
Leg extensions with rubber tips MUST be in contact with the floor at all times.
Toilet seat MUST be down before attempting to sit on the commode. Pail holders
are not constructed to support the weight of an individual, only the pail and its
contents.
Use the arm supports only for assistance. DO NOT attempt to use the arms to
support full body weight.
Arms should be unlatched and dropped to assist in transfer onto/off the device.
Users with limited physical capabilities should be supervised or assisted when using
the commode.
The Commode listed has a weight limitation of 250 lbs (114 kg). Consult a qualified
technician if assistance is required in selecting the appropriate Invacare commode
for you.
INSTALLATION WARNING
Before removing/installing seat and lid, allow seat/ring to reach room temperature if
exposed to cold. This will help prevent the seat clamps from breaking when being
removed/installed onto commode back frame rail.
For more information regarding Invacare products, parts, and services,
please visit www.invacare.com
1
Part No 1062011
Drop Arm Commode
