1 General
1.1 Symbols
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage.
DANGER!
– Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING!
– Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Gives useful tips, recommendations and information of efficient, trouble-free use.
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

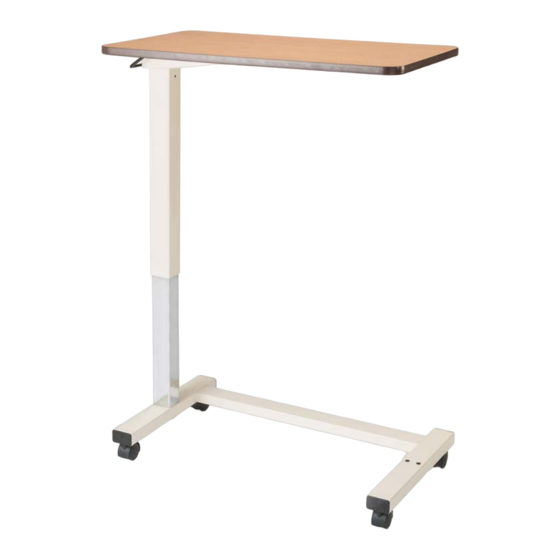

Overbed Table
en IH1010 and IH5135 Overbed Table
User Manual
IenI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IH1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Invacare IH1010

Summary of Contents for Invacare IH1010

  • Page 1 Overbed Table en IH1010 and IH5135 Overbed Table User Manual IenI 1 General 1.1 Symbols Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. DANGER! – Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 2: General Guidelines

    – ALWAYS wear safety glasses and use extreme caution when removing the shipping pin (black screw) from the column assembly of the overbed table. The maximum weight for the IH1010 Overbed table is 50 lbs. The maximum weight for the IH5135 Overbed table is 100 lbs.

  • Page 3: Specifications

    3 Specifications 3.1 Specifications Specification IH1010 IH5135 Table Top Dimensions 15 X 30 inches 18 X 32 inches Table Top Material Wood Grain High Pressure Laminate Wood Grain High Pressure Laminate 30–45 inches Height Range 28–45 inches (15 one inch increments)
  • Page 4 Overbed Table 4 Assembly 4.1 Assembling the IH1010 Overbed Table Place table top on a flat stable surface top side down. Insert release lever with rounded side up into the column assembly over pin. While holding the release lever A in place, rotate the column assembly B and insert into table top bracket C.
  • Page 5 4.2 Assembling the IH5135 Overbed Table Place table top on a flat stable surface top side down. Loosen mounting bolts A until the column assembly B will fit into top bracket C. Elevate the release lever D D D to approximately 45° angle and insert the column assembly into top bracket. Align rectangle notches on the column assembly with dimples on the top bracket.

  • Page 6: Maintenance

    Overbed Table 5 Usage 5.1 Using the Overbed Table To raise the table top, lift from anywhere on the underside of the table top to a desired height. To lower the table top, squeeze the release lever and push down on table to desired height. 6 Maintenance 6.1 Cleaning Before using any cleaning products, test a small area on the corner of the table to make sure the cleaning product does not cause...
  • Page 7 Notes...

  • Page 8: Limited Warranty

    This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants its product to be free from defects in materials and workmanship for one year for the original purchaser. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option with refurbished or new...
