84-INCH BED EXTENSION
Assembly, Installation and Operating Instructions
Model No. 5143 and 5143IVC
NOTE: Check ALL parts for shipping damage. If shipping damage is noted, DO NOT use.
Contact Invacare for further instruction.
To ensure the safe installation of the 84-inch bed extension, these instructions MUST be
followed:
DO NOT install this equipment without first reading and understanding this
instruction sheet. If you are unable to understand the warnings, cautions,
and instructions, contact a healthcare professional, dealer or technical
personnel before attempting to use this equipment - otherwise injury or
damage may occur.
Ensure ALL screws and nuts are tight at all times.
The 84-inch Bed Extension Kit DOES NOT change the weight limitation of
your bed. Refer to your owner's manual for correct weight limitation.

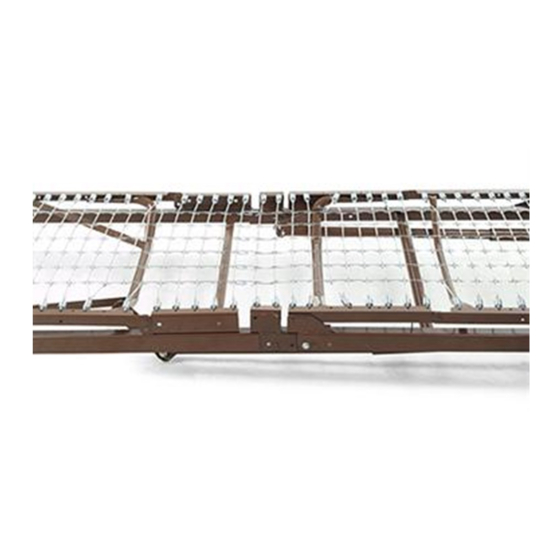

PURPOSE:

For conversion of a Mobilite 80-inch Split Spring Mattress Platform to an 84-inch Mattress
Platform.

TOOLS REQUIRED:

Two (2) 1/2-inch Open End Wrenches
One (1) Vise Grip
Kit Includes the Following:
ITEM
PART NO.
1
7000M465
2
7000M466
3
7000M713
4a
7000M469
4b
1118839
5
53000M699
6
53000M701
7
53000M434
8
54000M641
9
51000M135

DISASSEMBLY

1. Remove the main drive shaft from the bed.
2. Retract the footboard drive shaft.
3. Disconnect head spring pull tube by removing cotter and clevis pins.
Part No. 53000M701
SAVE THESE INSTRUCTIONS

SAFETY SUMMARY

WARNING
QTY.
DESCRIPTION
1
Extension Weldment L.H.
1
Extension Weldment R.H.
1
Drive Shaft Assembly
1
Pull Tube End Assembly (5143)
1
Pull Tube End Assembly (5143IVC)
2
Link Fabric Extension
w/ Open Hooks Attached
1
Instruction Sheet
2
Bi-way Locknut
2
5/16-18 x 1-inch Bolt
4
Helical Spring
1
84-Inch Bed Extension
