Overbed Table
4 Assembly

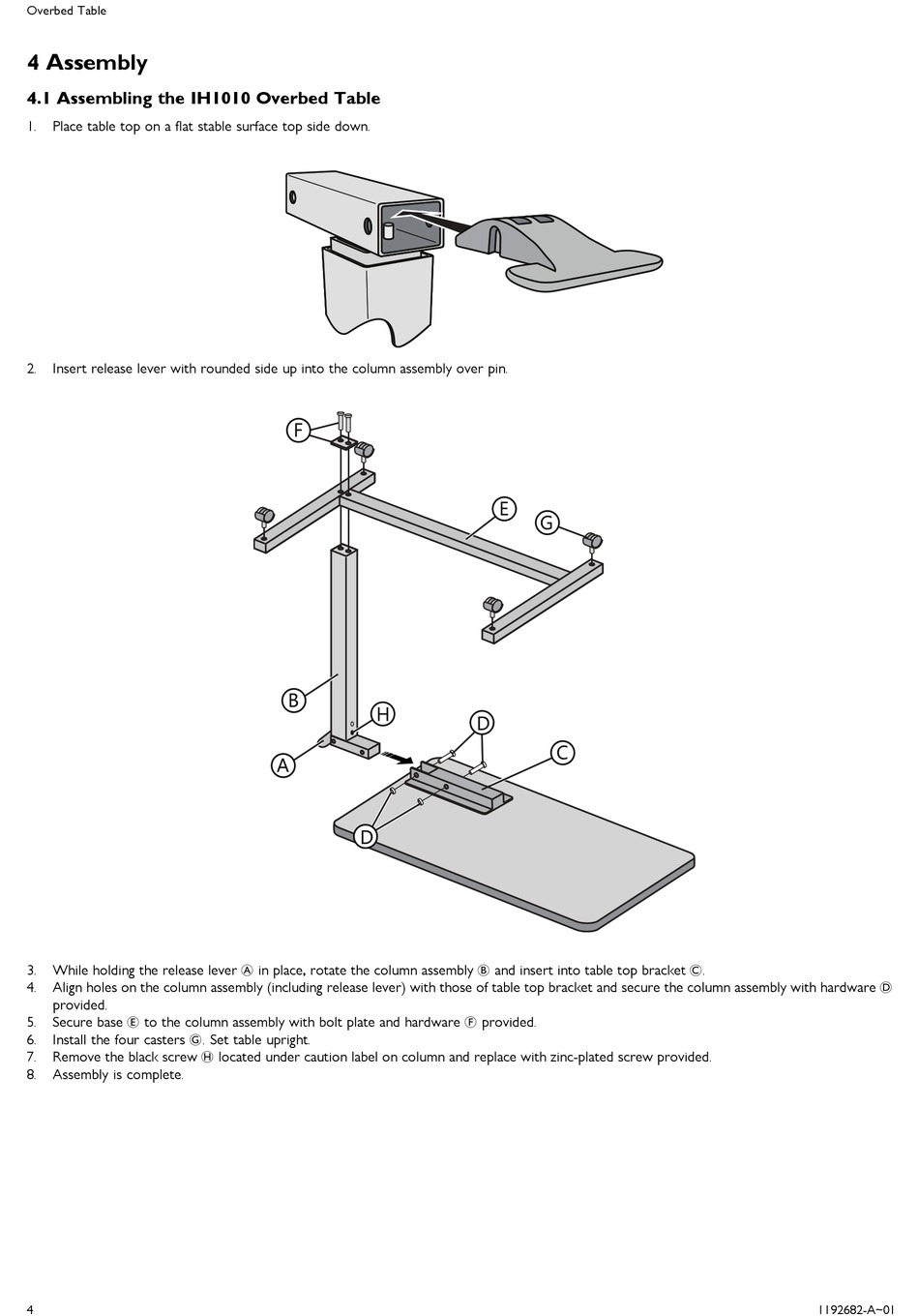

4.1 Assembling the IH1010 Overbed Table
1. Place table top on a flat stable surface top side down.
2. Insert release lever with rounded side up into the column assembly over pin.
While holding the release lever A in place, rotate the column assembly B and insert into table top bracket C.
3.
Align holes on the column assembly (including release lever) with those of table top bracket and secure the column assembly with hardware D
4.
provided.
5. Secure base E to the column assembly with bolt plate and hardware F provided.
6. Install the four casters G. Set table upright.
Remove the black screw H located under caution label on column and replace with zinc-plated screw provided.
7.
8. Assembly is complete.
