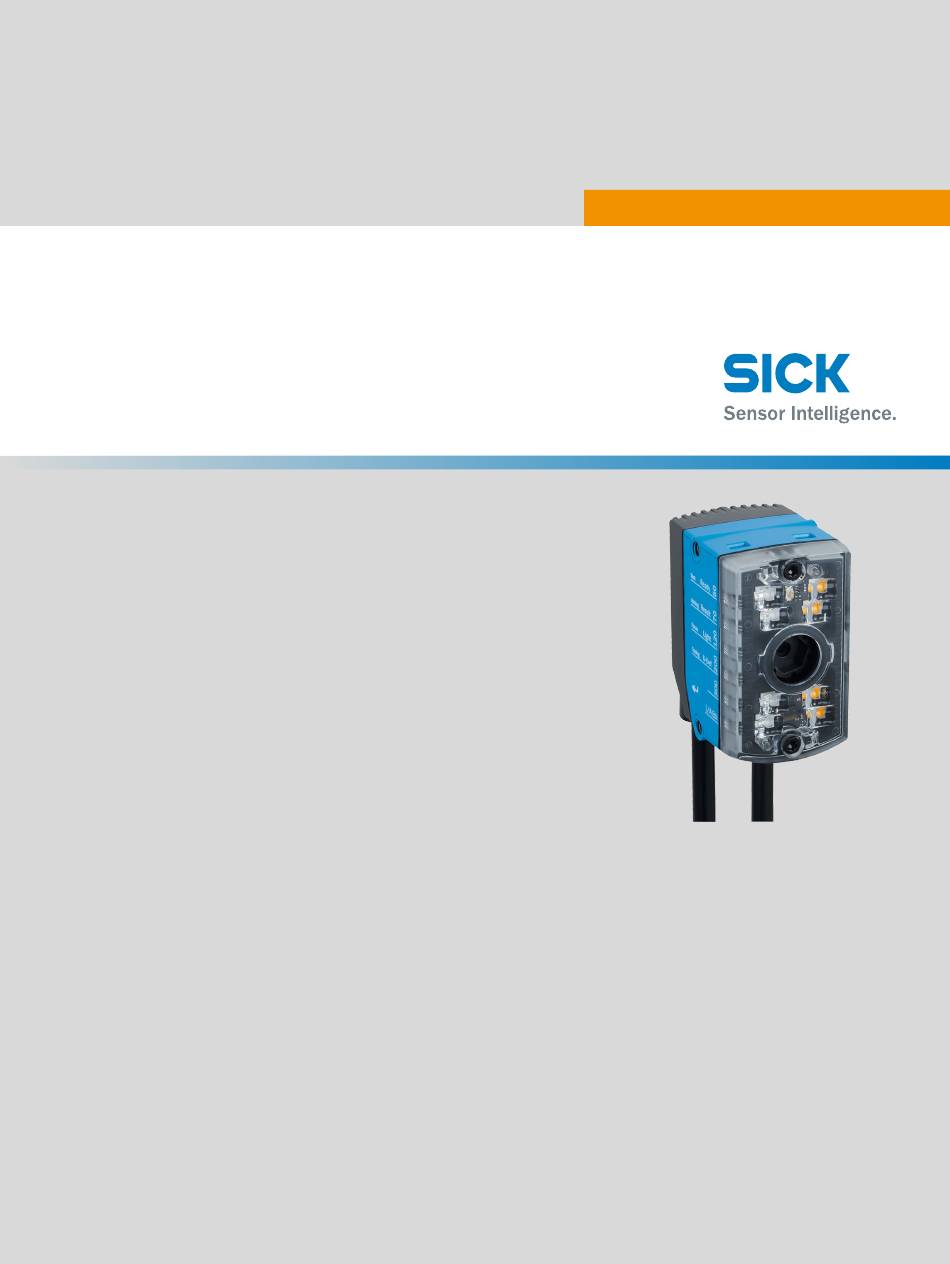

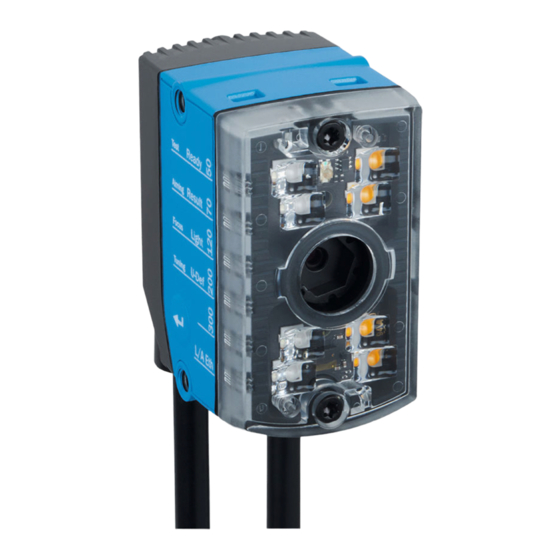

O P E R A T I N G I N S T R U C T I O N S
GLS611
Grid localization

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLS611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK GLS611

Summary of Contents for SICK GLS611

  • Page 1 O P E R A T I N G I N S T R U C T I O N S GLS611 Grid localization...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Mounting the device................. Electrical installation................ 26 Wiring instructions..................6.1.1 Data cables................8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...
  • Page 4 Accessories..................47 Annex....................48 13.1 Declarations of conformity and certificates..........O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...
  • Page 5 13.3 Signal assignment of cables with open cable end at one end....13.3.1 Power/Serial Data/CAN............13.3.2 Power/Serial Data/CAN............13.4 Licenses....................8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 6: About This Document

    … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 7: Further Information

    Certificates (e.g., declaration of conformity) • Other publications • Software • Accessories 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 8: Safety Information

    A suitable concept consists of organi‐ zational, technical, procedural, electronic, and physical levels of defense and considers O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 9: Limitation Of Liability

    Knowledge of the operation and control of the devices in their ■ particular application 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 10: Operational Safety And Specific Hazards

    O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...
  • Page 11 Install the grounding for the product and the system in accordance with national ■ and regional regulations. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 12: Product Description

    Supply voltage, power consumption and maximum current consumption Data Matrix code with product data (part number, serial number, MAC address) O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 13: Device View

    Optics, manual focus adjustment with the help of a focus adjustment tool 6 status LEDs Further topics • Dimensional drawing 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 14: Illumination Unit

    Figure 2: Status LEDs (2 display levels) on the side of the housing Distance display (focus position and working distance) in configuration mode O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 15: Function And Use

    The device localizes automated guided vehicles (AGVs) by means of 2D codes. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 16: Codes

    Grayscale (testing of print quality of the customer print) Center point of the multicode label O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...
  • Page 17 Requirements on the code resolution of single 2D codes: Typical reference values during operation 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 18: Transport And Storage

    For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 19: Mounting

    Mounting options for the device using the threaded mounting holes must be available. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 20: Mounting Location

    Working range The possible working range for reading is 50 mm to 300 mm. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 21: Mounting Angle

    Versions older than SOPAS ET Version 2018.04 are not compatible with the device. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...
  • Page 22 Recommended: γ = 0° Not recommended: γ < 0° or γ > 0° O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 23: Adjusting Focus With The Focus Adjustment Tool

    If the focus adjustment tool is turned with too much force, the device will be damaged. Observe maximum tightening torque. ■ 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...
  • Page 24 SOPAS ET in the ToF distance (mm) parameter. The currently set focus position is displayed in SOPAS ET in the Focus position (mm) parameter. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 25: Mounting The Device

    The Ready status LED lights up green. Perform fine adjustment. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 26: Electrical Installation

    Wire cross-sections of the data and switching signal cables have to also be designed in accordance with the applicable national standards. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 27: Data Cables

    This is achieved by complying with the following conditions: 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 28: Connection Principle

    Service mode connection schematic This operating mode is recommended for initial commissioning of the device. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 29: Connection Principle For Read Mode

    8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 30: Ethernet

    Figure 14: M12 female connector, 4-pin, D-coded Signal Function Sender+ O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 31: Connecting The Device

    The maximum data transmission rate for the serial interface depends on the length of cable and on the type of interface. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 32: Can Interface

    Make further settings in the device corresponding to the function of the device in the system configuration. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 33: Commissioning

    0° by default, see "Mounting angle", page 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 34: Complete The Configuration

    (configuration data) in the working memory of the device can be modified. For O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 35: External Data Back-Up

    This enables a device to be quickly exchanged with a replacement device of the same type. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 36: Coordinate System

    When using multicode labels, the device determines the shift of the center point of the multicode label relative to the zero point of the coordinate system. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...

  • Page 37: Maintenance

    This is especially important in harsh operating environments (dust, abrasion, damp, fingerprints, etc.). 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...
  • Page 38 In order to ensure that heat is adequately dissipated from the device, the housing surface must be kept clean. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...
  • Page 39 Clear the build up of dust on the housing with a soft brush. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 40: Troubleshooting

    Description of the application • Description of the fault that occurred O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 41: Replacing The Device

    Transfer the configuration data of the device to be replaced by downloading to the replacement device and permanently storing it there. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 42: Decommissioning

    Separate the recyclable materials by type and place them in recycling containers. ■ O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 43: Technical Data

    Valid for 1D codes and 2D codes with good print quality. 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 44: Mechanics/Electronics

    "Dimensional drawing", page O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 45: Dimensional Drawing

    Evaluation time > 60 μs Shutter time 60 μs …6000 μs Automatic parameter Integrated switching 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 46: Interfaces

    –20 °C ... +70 °C Permissible relative 0% ... 90%, non-condensing humidity O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 47: Accessories

    {P/N} corresponds to the part number of the product (see type label). 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 48: Annex

    10.0 121,1 90,8 225,2 10.0 201,1 150,9 345,3 10.0 O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...
  • Page 49 Valid for Data Matrix codes with icon size 14 x 14 cells. [m/s] = maximum overspeed [m/s] 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 50: Signal Assignment Of Cables With Open Cable End At One End

    Supply voltage Blue CAN L CAN bus (IN/OUT) White O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK Subject to change without notice...

  • Page 51: Power/Serial Data/Can

    TxD (RS-232), host Host interface (sender) Yellow N.c. Not connected Black 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...

  • Page 52: Licenses

    For license texts see www.sick.com/licensetexts. Printed copies of the license texts are also available on request. O P E R A T I N G I N S T R U C T I O N S | GLS611 8026021/1D2S/2022-09-01 | SICK...
  • Page 53 ANNEX 8026021/1D2S/2022-09-01 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS611 Subject to change without notice...
  • Page 54 Phone +7 495 283 09 90 E-Mail info@sick.com E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...
