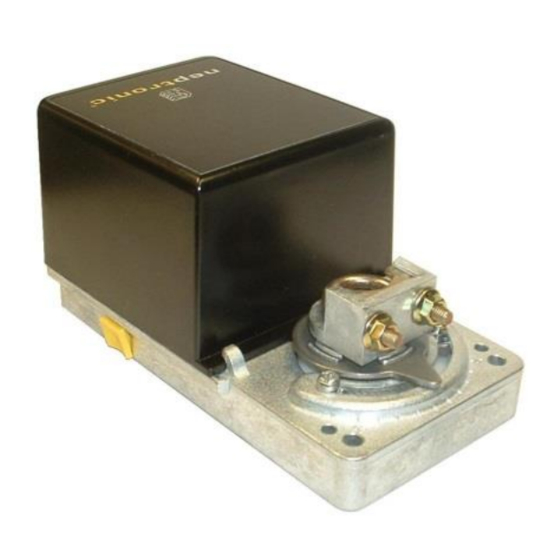

Neptronic BM000N Specification & Installation Instructions

Neptronic BM000N Specification & Installation Instructions

Advertisement

Quick Links

Technical Data

Running time through 90º
Power consumption
50 in.lb. [5,6 Nm] at rated
Torque
Fail safe - Enerdrive
Auxiliary switches
Ingress protection
Feedback
Power supply
Electrical connection
Inlet bushing
Control signal
Angle of rotation
Direction of rotation
Ambient temperature
Storage temperature
Relative Humidity
Weight
Warning: Do not press the clutch when actuator is powered
Dimensions
Caution
We strongly recommend that all Neptronic
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
1
Enerdrive System U.S.A. Patent #5,278,454
BM-N-210803
Feature:
Mounts easy on round & square shaft (with option –8).
External clutch for manual adjustments.
Maintenance free.
Position indicator.
Control signal fully programmable.
Auto stroke on power up
Brushless DC driven motor.
Fail safe by Enerdrive System
Auxiliary switches (on model 020)
BM000N
BM000FN BM000FFN BM060N
15 sec
6 sec
3 sec
10 VA
10 VA
10 VA
35 in.lb.
[3,9 Nm] at
voltage
rated voltage
No
IP22 equivalent to Nema type 2, IP54 equivalent to Nema type 3R if water tight
inlet bushings (not supplied NEP617) are installed
4 to 20 mA or 2 to 10 VDC adjustable (default setting: 4 to 20mA)
Analog, Digital or Pulse with modulation (PWM) programmable (default setting: Analog control signal)
0 to 90 degrees, mechanically adjustable (default setting: 90º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (default setting: CW direction)
®
products be wired to a separate transformer and that transformer shall service only Neptronic
Specification & Installation Instructions
1
(on model 060).
BM060FN BM060FFN BM020N
15 sec
6 sec
18VA Peak,
18VA Peak,
18VA Peak,
10VA
10VA
50 in.lb. [5,6 Nm] at rated
[3,9 Nm] at
voltage
rated voltage
Yes
No
22 to 26 VAC or 28 to 32 VDC
2
18 AWG [0.8 mm
] minimum
2 inlet bushing of 13/16 in [20.6 mm]
-22ºF to +122ºF [-30º C to +50º C]
-22ºF to +122ºF [-30º C to +50º C]
5 to 95 % non condensing.
3 lbs. [1.4 kg]
Dimension
A
B
C
model 000 & 060
D
model 020
Actuator
BM020FN BM020FFN
3 sec
15 sec
6 sec
10 VA
10 VA
10VA
35 in.lb.
50 in.lb. [5,6 Nm] at rated
voltage
No
Yes (2)
IP22 equivalent to Nema type 2
Inches
Metric (mm)
1.50
3.64
6.60
3.02
3.81
®
products. This precaution will
BM000N
BM020N
BM060N
BM000FN
BM020FN
BM060FN
BM000FFN
BM020FFN
BM060FFN
3 sec
10 VA
35 in.lb.
[3,9 Nm] at
rated voltage
38.1
92.5
167.5
76.8
96.8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM000N and is the answer not in the manual?

Questions and answers

Summary of Contents for Neptronic BM000N

  • Page 1 ® ® We strongly recommend that all Neptronic products be wired to a separate transformer and that transformer shall service only Neptronic products. This precaution will prevent interference with, and/or possible damage to incompatible equipment. When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
  • Page 2 BM000/020/060(F)(FF)N Specification & Installation Instruction Mechanical Installation Manually close the damper blades and positioned the actuator at 0º or 90º. Slide the actuator onto the shaft. Tighten the nuts on the “U” bolt to the shaft with a 8mm wrench to a torque of 60 in.lb. [6,7 Nm]. MOUNTING BRACKET Slide the mounting bracket under the actuator.
  • Page 3 BM000/020/060(F)(FF)N Specification & Installation Instruction PC Board Dip switch settings BM060N/GMR Pins for PWM selection Microcontroller Terminal Reset button Dip switch 1 2 3 4 Default Setting = All dipswitches at OFF Stroke adjustment – No control signal change Apply power and, WAIT FOR LED TO BE OFF (around 10 seconds). Press and release the reset button to start the auto-stroke process.
  • Page 4 BM000/020/060(F)(FF)N Specification & Installation Instruction Zero and span calibration This feature is applicable to analog control signal only. Remove power and put all dip switches "OFF". (factory preset). Apply power and, within 10 seconds press and hold the reset button until the LED blinks once. The Zero and span calibration process then start.

This manual is also suitable for:

Bm020nBm060nBm000fnBm020fnBm060fnBm000ffn ... Show all

Table of Contents
