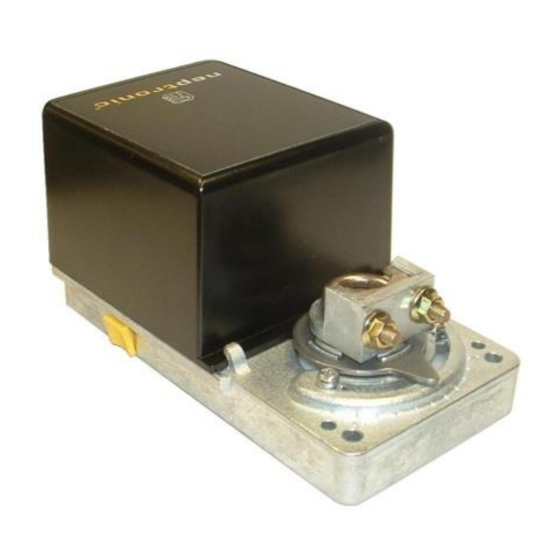

Neptronic BT000S Specification & Installation Instructions

Technical Data

Auxiliary switches
Feedback
Fail safe - Enerdrive
Power consumption
Control signal
Power supply
Running time through 90º
Torque
Electrical connection
Inlet bushing
Angle of rotation
Direction of rotation
Ambient temperature
Storage temperature
Relative Humidity
Weight
Ingress protection

Dimensions

Caution
We strongly recommend that all Neptronic® products be wired to a separate transformer and that transformer shall service only Neptronic® products. This precaution will
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
1
Enerdrive System U.S.A. Patent #5,278,454
BT0S-210803

Features:

•
Mounts easy on round
& square shaft (with option –8).
•
External clutch for manual adjustments.
•
Maintenance free.
•
Position indicator.
•
Fail safe by Enerdrive System
(on model 060, 065 & 080).
•
Auxiliary switches
(on model 020 & 080).
BT000S BT005S
- -
- Yes
-
6 VA
3 wire / 2 position,
3 wire / 3 point floating
22-26 Vac or 24-32 Vdc
0 to 90 degrees, mechanically adjustable (factory set with 90º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
IP54 equivalent to Nema type 3R if water tight inlet bushings (not supplied NEP617) are installed

Warning: Do not press the clutch when actuator is powered

Specification & Installation instructions
1
BT020S BT060S
2
-
(10° & 90°)
- -
90 - 110 sec. (Fail-safe 20-35 sec)
50 in.lb. [5,6 Nm] at rated voltage
2
18 AWG [0.8 mm ] minimum
2 inlet bushing of 13/16in [20.6 mm]
-22ºF to +122ºF [-30ºC to +50ºC]
-22ºF to +122ºF [-30ºC to +50ºC]
5 to 95 % non condensing
3 lbs. [1.4 kg]
IP22 equivalent to Nema type 2,
Dimension
A
B
C
D
Actuator
BT000S
BT005S
BT020S
BT060S
BT065S
BT080S
BT065S BT080S
-
(10° & 90°)
Yes
Yes
15VA Peak, 6VA
2 wire / 2 position,
4 wire / 3 point floating
22-26 Vac or 28-32 Vdc
Inches Metric (mm)
1.50 38.1
3.64 92.5
6.60 167.5
3.02 76.8
2
-
1
