Technical Data
Power supply
Ingress protection
Power consumption
Torque
Running time through 90º
Electrical connection
Inlet bushing
Control signal
Angle of rotation
Direction of rotation
Ambient temperature
Storage temperature
Relative Humidity
Weight
Dimensions
D
C
Caution
We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
BM200S(TRO)/080606
Feature:
•
•
•
•
•
IP54 equivalent to Nema type 3R if water tight inlet bushings (not supplied NEP617) are installed
0 to 90 degrees, mechanically adjustable (factory set with 90º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
Warning: Do not press the clutch when actuator is powered
A
B

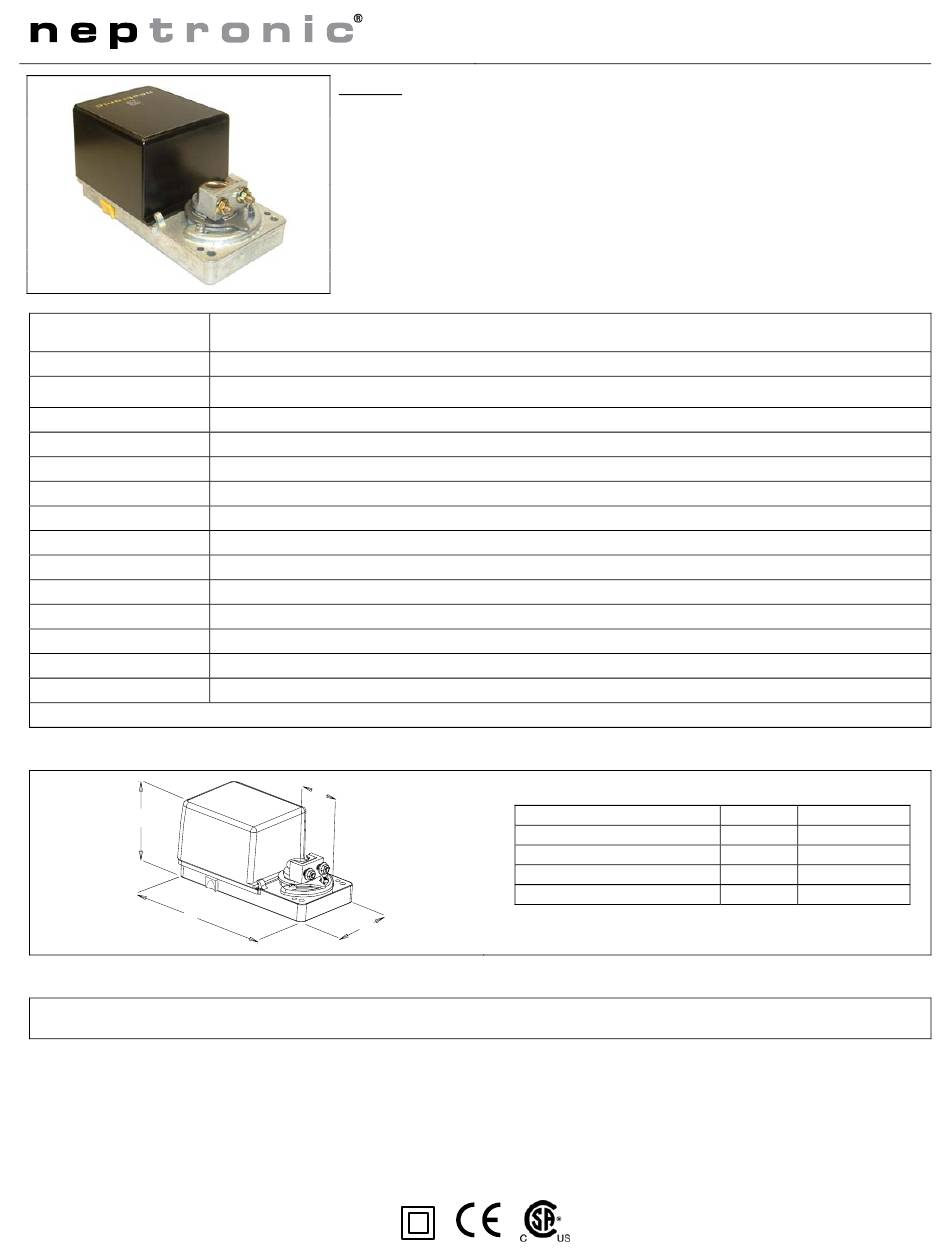

Specification & Installation instructions
Mounts easy on round
& square shaft (with option –8).
External clutch for manual adjustments.
Maintenance free.
Position indicator.
Output for thermostat TRO5405 supply

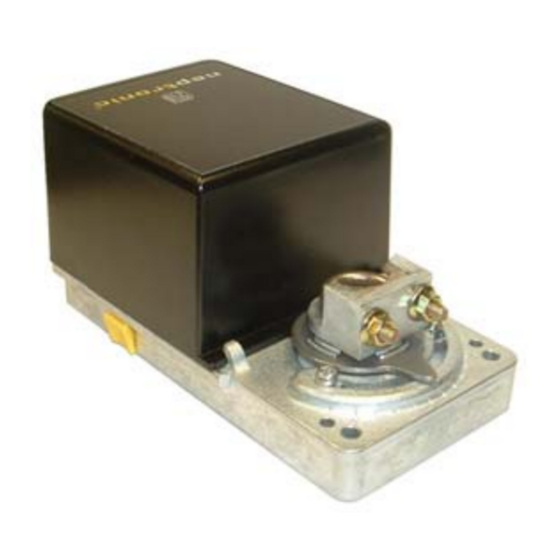

BM200S
220 to 250 VAC 50/60Hz
IP22 equivalent to Nema type 2,
6 VA
50 in.lb. [5,6 Nm] at rated voltage
90 - 110 sec
18 AWG [0.8 mm
2 inlet bushing of 5/8 in [15.9 mm] & 7/8 in [22.2 mm]
2 to 10 VDC
-22ºF to +122ºF [-30ºC to +50ºC]
-22ºF to +122ºF [-30ºC to +50ºC]
5 to 95 % non condensing.
3 lbs. [1.4 kg]
Dimension
2
] minimum
Inches
1.50
A
B
3.26
C
6.60
D
3.01
Actuator
BM200S(TRO)
Metric (mm)
38.1
82.8
167.5
76.4
1
