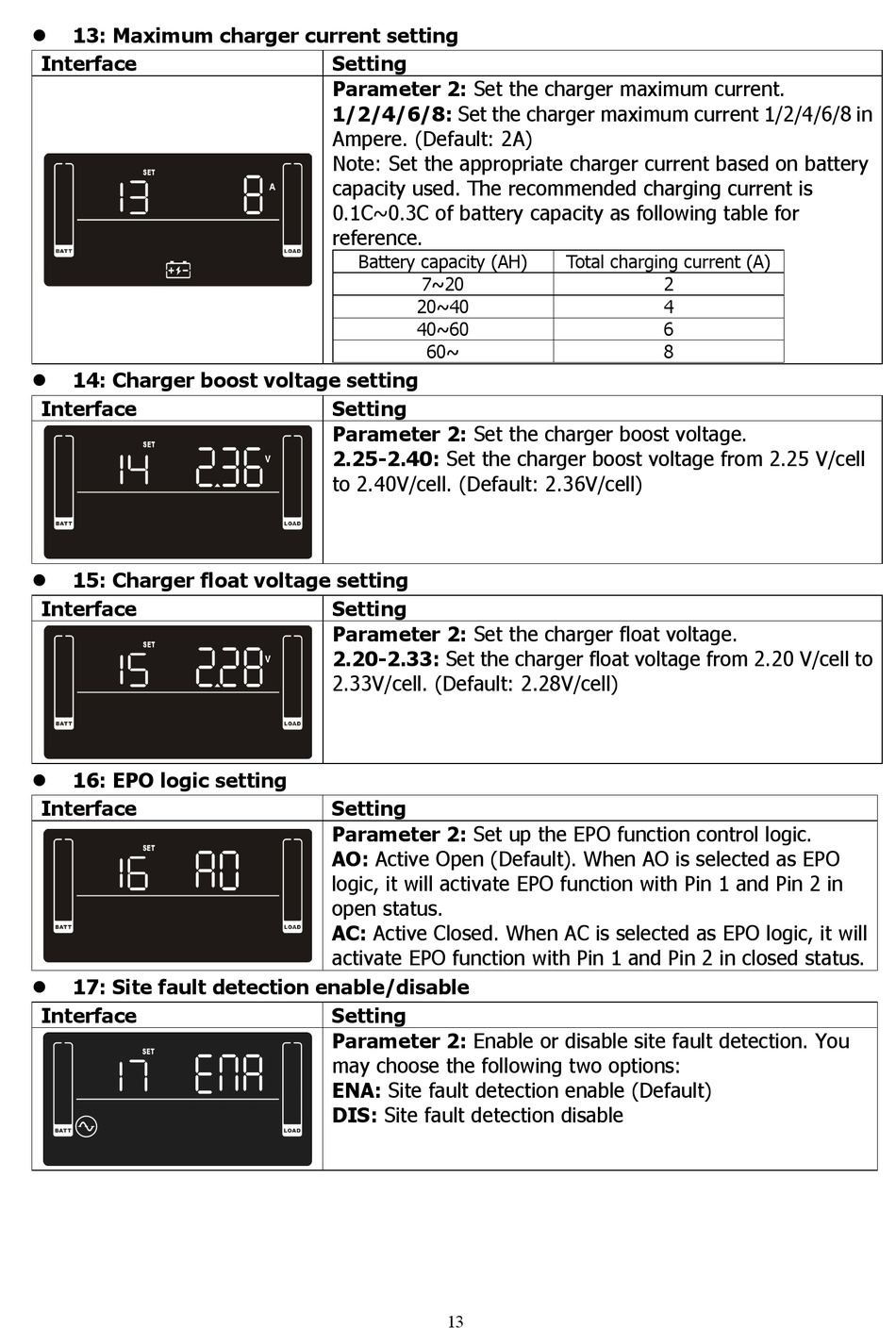

V7 UPS2URM3000DC-NC-1N User Manual page 14

13: Maximum charger current setting
l
Interface
14: Charger boost voltage setting
l
Interface
15: Charger float voltage setting
l
Interface
16: EPO logic setting
l
Interface
17: Site fault detection enable/disable
l
Interface
Setting
Parameter 2: Set the charger maximum current.
1/2/4/6/8: Set the charger maximum current 1/2/4/6/8 in
Ampere. (Default: 2A)
Note: Set the appropriate charger current based on battery
capacity used. The recommended charging current is
0.1C~0.3C of battery capacity as following table for
reference.
Battery capacity (AH)
7~20
20~40
40~60
60~
Setting
Parameter 2: Set the charger boost voltage.
2.25-2.40: Set the charger boost voltage from 2.25 V/cell
to 2.40V/cell. (Default: 2.36V/cell)
Setting
Parameter 2: Set the charger float voltage.
2.20-2.33: Set the charger float voltage from 2.20 V/cell to
2.33V/cell. (Default: 2.28V/cell)
Setting
Parameter 2: Set up the EPO function control logic.
AO: Active Open (Default). When AO is selected as EPO
logic, it will activate EPO function with Pin 1 and Pin 2 in
open status.
AC: Active Closed. When AC is selected as EPO logic, it will
activate EPO function with Pin 1 and Pin 2 in closed status.
Setting
Parameter 2: Enable or disable site fault detection. You
may choose the following two options:
ENA: Site fault detection enable (Default)
DIS: Site fault detection disable
13
Total charging current (A)
2
4
6
8
