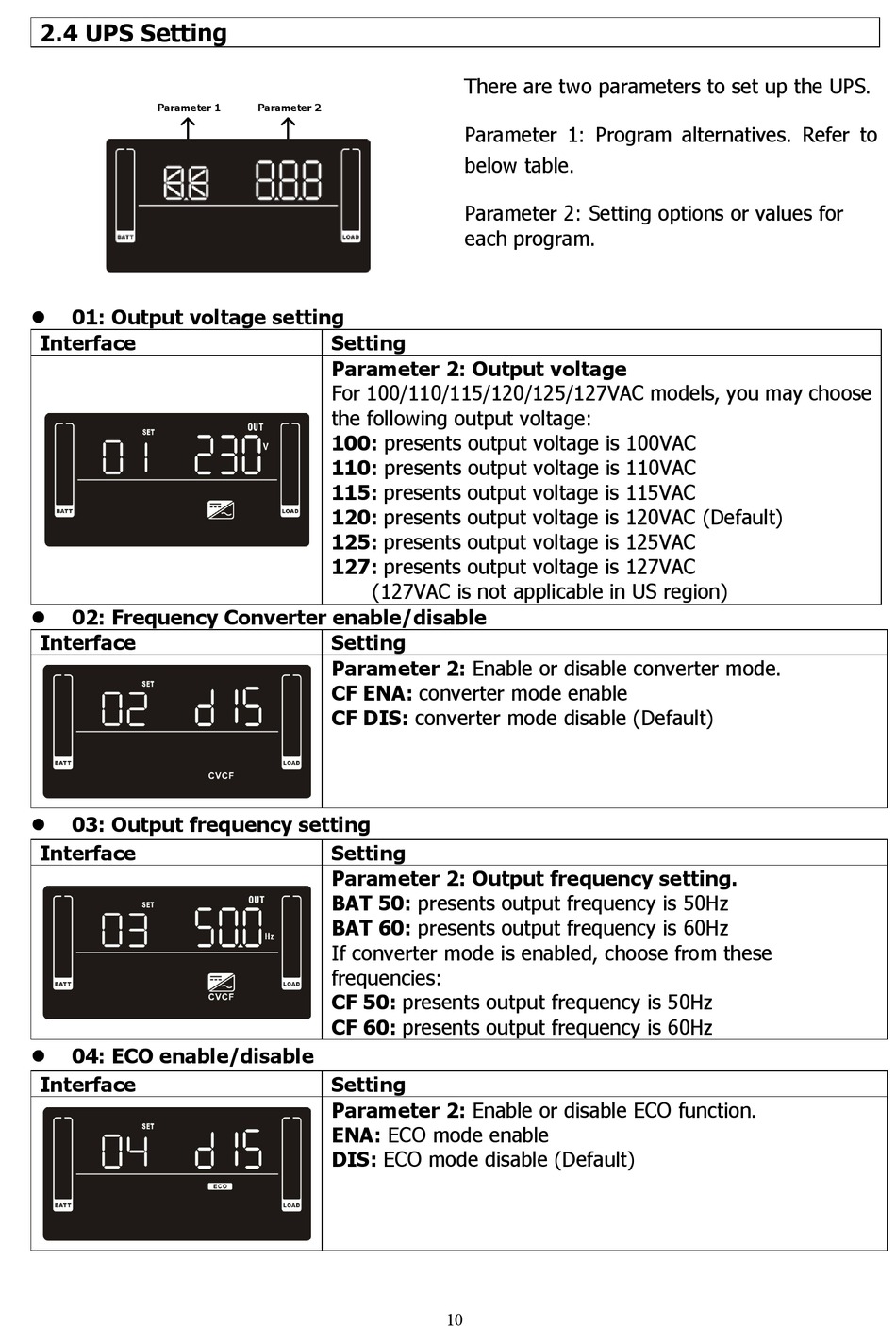

2.4 UPS Setting

Parameter 1
01: Output voltage setting
l
Interface
02: Frequency Converter enable/disable
l
Interface
03: Output frequency setting
l
Interface
04: ECO enable/disable
l
Interface
Parameter 2
Setting
Parameter 2: Output voltage
For 100/110/115/120/125/127VAC models, you may choose
the following output voltage:
100: presents output voltage is 100VAC
110: presents output voltage is 110VAC
115: presents output voltage is 115VAC
120: presents output voltage is 120VAC (Default)
125: presents output voltage is 125VAC
127: presents output voltage is 127VAC
(127VAC is not applicable in US region)
Setting
Parameter 2: Enable or disable converter mode.
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
Setting
Parameter 2: Output frequency setting.
BAT 50: presents output frequency is 50Hz
BAT 60: presents output frequency is 60Hz
If converter mode is enabled, choose from these
frequencies:
CF 50: presents output frequency is 50Hz
CF 60: presents output frequency is 60Hz
Setting
Parameter 2: Enable or disable ECO function.
ENA: ECO mode enable
DIS: ECO mode disable (Default)
There are two parameters to set up the UPS.
Parameter 1: Program alternatives. Refer to
below table.
Parameter 2: Setting options or values for
each program.
