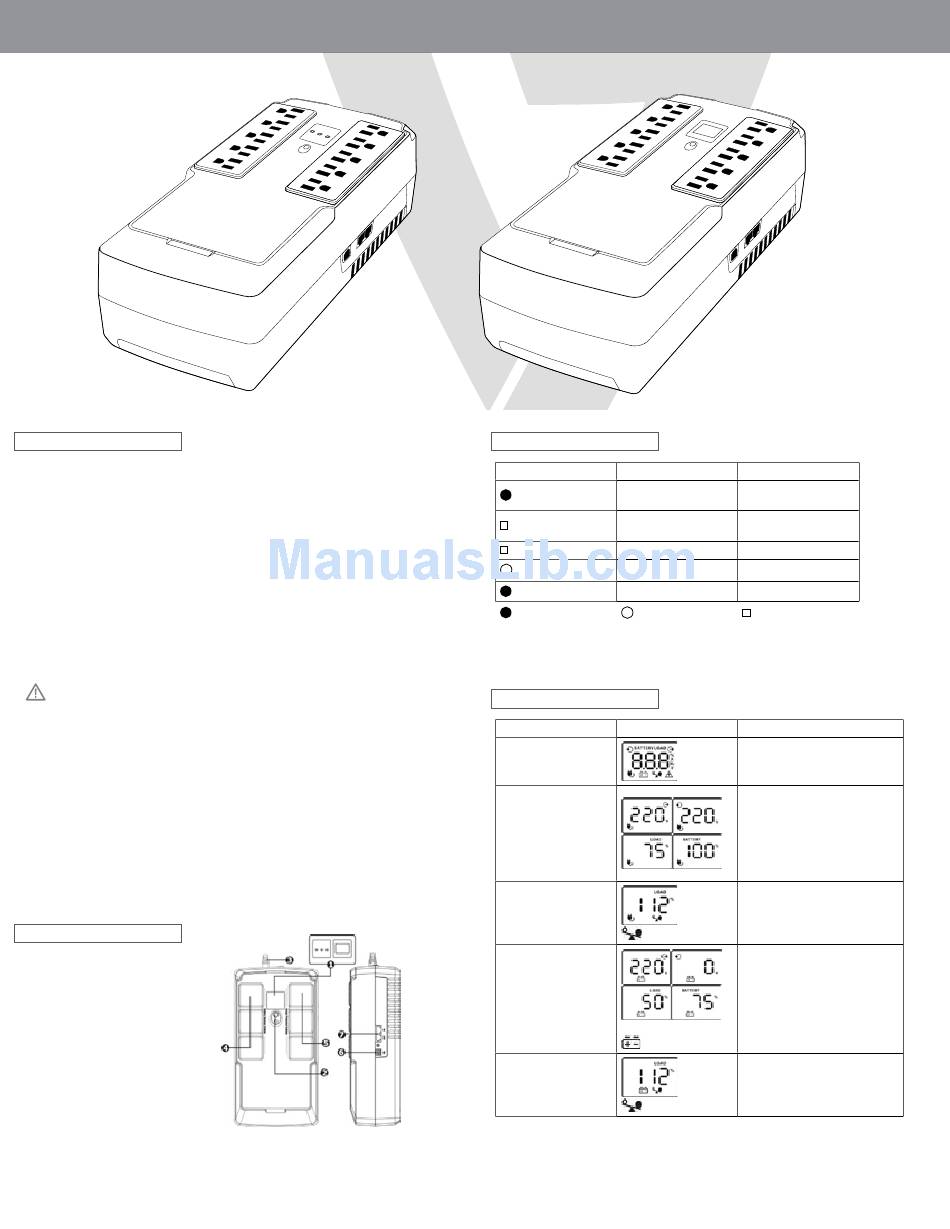

V7 UPS1DT550-1N Installation & Operation

UPS1DT550-1N
UPS1DT750-1N
Installation & Operation
1. Inspection
The following items are inside the box: UPS Unit, User Manual
• Remove the UPS from its package and inspect it for damage that may have occurred during
shipping. If any damage is discovered, re-pack the unit and return it to the place of purchase.
2. Connect to Utility Power
• Connect AC power cord to utility power. Then, the UPS will start to charge inside battery. For best
result, charge the battery for 6 hours prior to initial use.
3. Plug in Equipment
• Battery back-up Outlets (5)
• Connect computer and monitor to the "Battery Backup" outlets. These outlets provide battery
backup, EMI filtering, line conditioning, and surge protection. Battery power is automatically
provided in case of power failure.
• Surge-Protected Outlets (5)
• Connect a printer, fax machine, or scanner to the "Surge-protected" outlets. These outlets do not
provide power during power failure.
CAUTION: NEVER connect a laser printer or scanner to the battery backup sockets of UPS. The
equipment may draw significantly power to overload the UPS
4. Turn On/Off the UPS
•
To turn on the UPS unit, press the power switch lightly. Then, the LED or LCD will light up. To turn
off the UPS unit, press the power switch again. Then, display will shut off.
5. Install software (Optional for advanced users)
For optimal computer system protection, install UPS monitoring software to fully configure the UPS
system. Please follow steps below to download and install monitoring software.
1. Go to the website http://www.V7-world.com/downloads
2. Select ViewPower software for your operating system to download the software.
3. Follow the on-screen instructions to install the software.

Product Overview

1. LCD display or LED indicators
(Please check LED or LCD
section for the details)
2. Power Switch
3. AC input
4. Battery backup
5. Surge-protected outlets
6. USB port
7. RJ11/RJ45 in/out
DESKTOP UPS
LED Indicators
LED
Green
Yellow
Yellow
Green
Red
LED on
Operation Display
UPS Mode
UPS Power ON
AC Mode
Overload in AC mode
Battery Mode
Overload in battery mode
*NOTE: If backlight shuts off, you may activate it by touching the screen
UPS1DT550-1N only
Alarm UPS Status
The mains is normal and
OFF
UPS is operating normally
Power failure occurs and
Sounds every 10 seconds
UPS is on battery mode
Sounds every second Low Battery
OFF UPS is off
Continuously Sounds UPS fault
LED Flashing
LED off
UPS1DT750-1N only
LCD Description
When UPS is powered on, it will
enter this mode for 4 seconds
LCD information will be displayed
in the following order when LCD is
touched.
1. Output voltage
2. Input voltage
3. Load Level
4. Battery capacity
When overload occurs, alarm will
beep every 0.5 seconds
icon will flash
Alarm will beep every 10 seconds
and LCD information will be
displayed in the following order
when LCD is touched
1. Output voltage
2. Input voltage
When batter level is low.
3. Load Level
icon will flash.
4. Battery capacity
When overload occurs, alarm will
beep every 0.5 seconds
icon will flash
