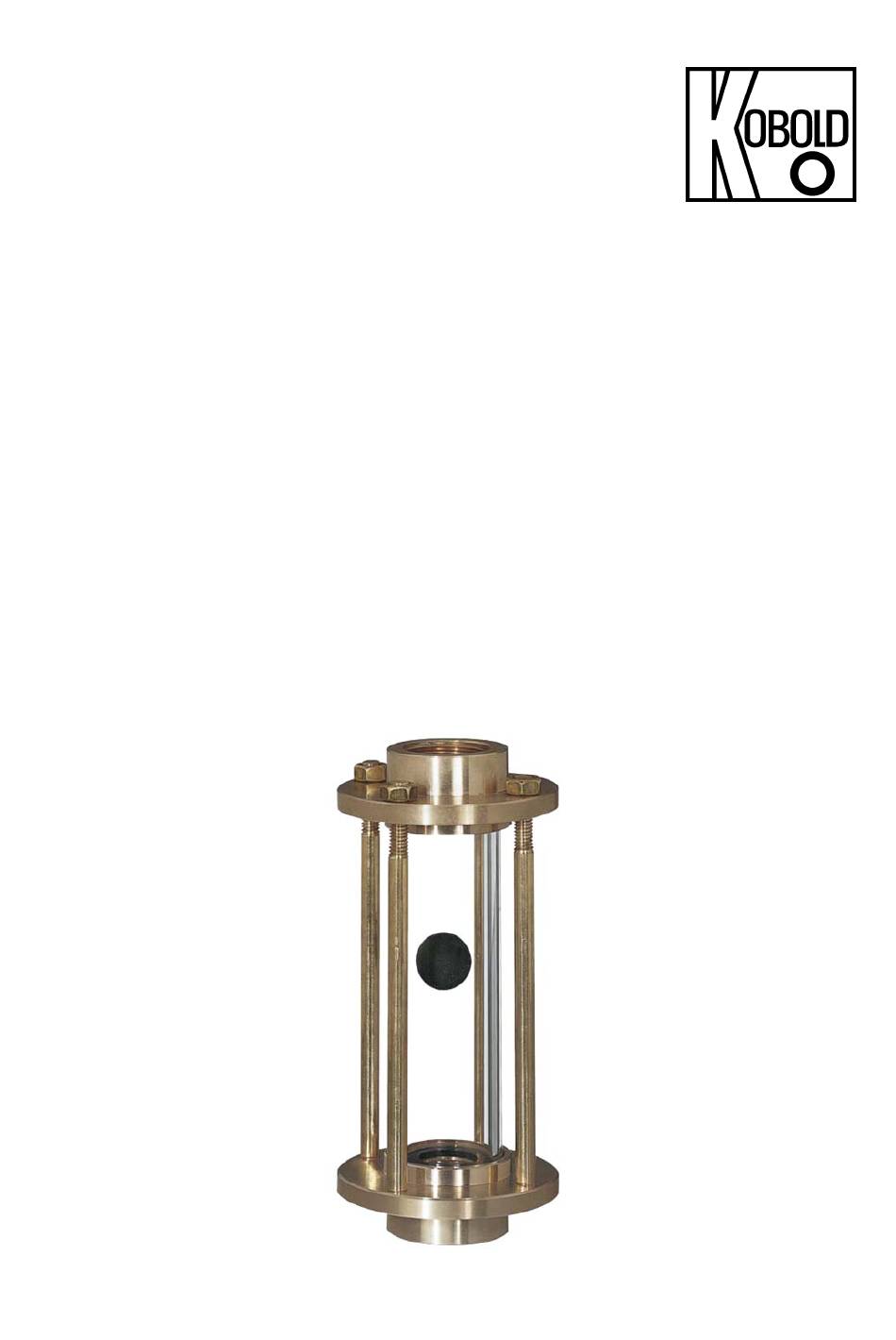

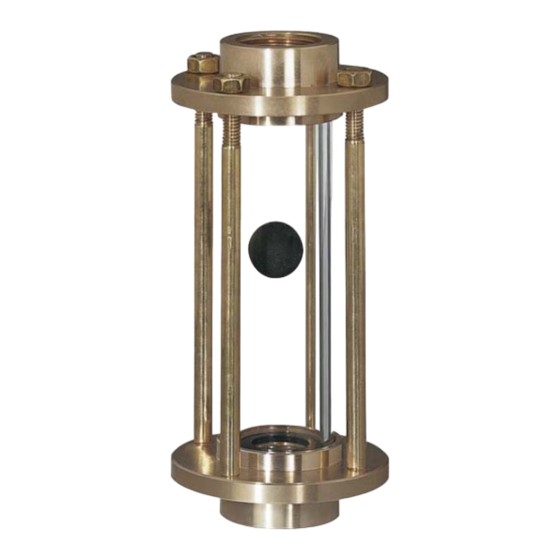

- Page 1 Operating Instructions Flow Indicators for Vertical Installation Model: DAB...
- Page 2 Technical Information ..................5 Order Codes ....................6 Dimensions ....................7 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 DAB K02/0422...
- Page 3 Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
- Page 4 2. Before installation, the pipes must be thoroughly cleaned 3. Rinse and dry the instrument During commissioning, pay attention to leaks and eliminate the leaks by retightening the fastening elements. The system should be tested with a maximum of 1.1 times the nominal pressure. page 4 DAB K02/0422...
- Page 5 PA 6.6 density 1.13 g/cm Ball 30, 40 and 50 mm: rubber density 1.46 g/cm Threaded bolts: according to flow range Maximum operating pressure: 10 bar Operating temperature: -200 °C / + 230 °C (PTFE seals) DAB K02/0422 page 5...
- Page 6 10. Order Codes Example: DAB-1101HR20 Connection thread without ball with ball G½ DAB-1100HR15 DAB-2100HR15 G¾ DAB-1101HR20 DAB-2101HR20 DAB-1102HR25 DAB-2102HR25 G1¼ DAB-1103HR32 DAB-2103HR32 G1½ DAB-1104HR40 DAB-2104HR40 DAB-1105HR50 DAB-2105HR50 G2½ DAB-1106HR65 DAB-2106HR65 DAB-1107HR80 DAB-2107HR80 page 6 DAB K02/0422...
- Page 7 6 bar 100 °C G1½ 50 x 100 1.18 DAB-..05HR50 6 bar 100 °C 60 x 100 1.25 DAB-..06HR65 6 bar 100 °C G2½ 70 x 100 1.76 DAB-..07HR80 6 bar 100 °C 90 x 100 3.95 DAB K02/0422 page 7...
