Kobold DAG-A4V Series Operating Instructions Manual

Kobold DAG-A4V Series Operating Instructions Manual

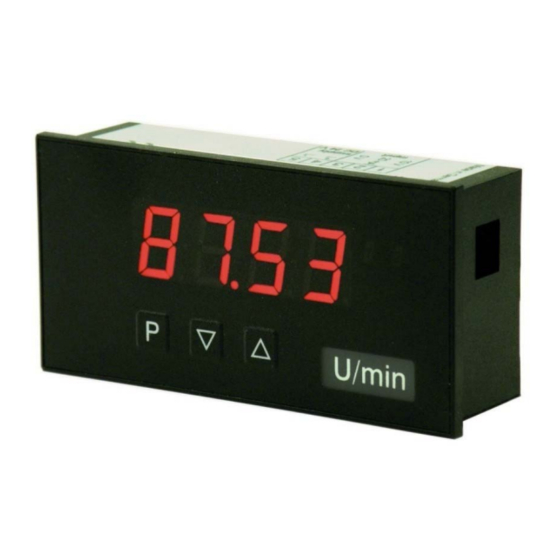

Digital indicating unit

Advertisement

Quick Links

Operating Instructions
for
Digital Indicating Unit
Standard signals 0/4-20 mA, 0-10 VDC
Model: DAG-A4V..., 96 x 48 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-A4V Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobold DAG-A4V Series

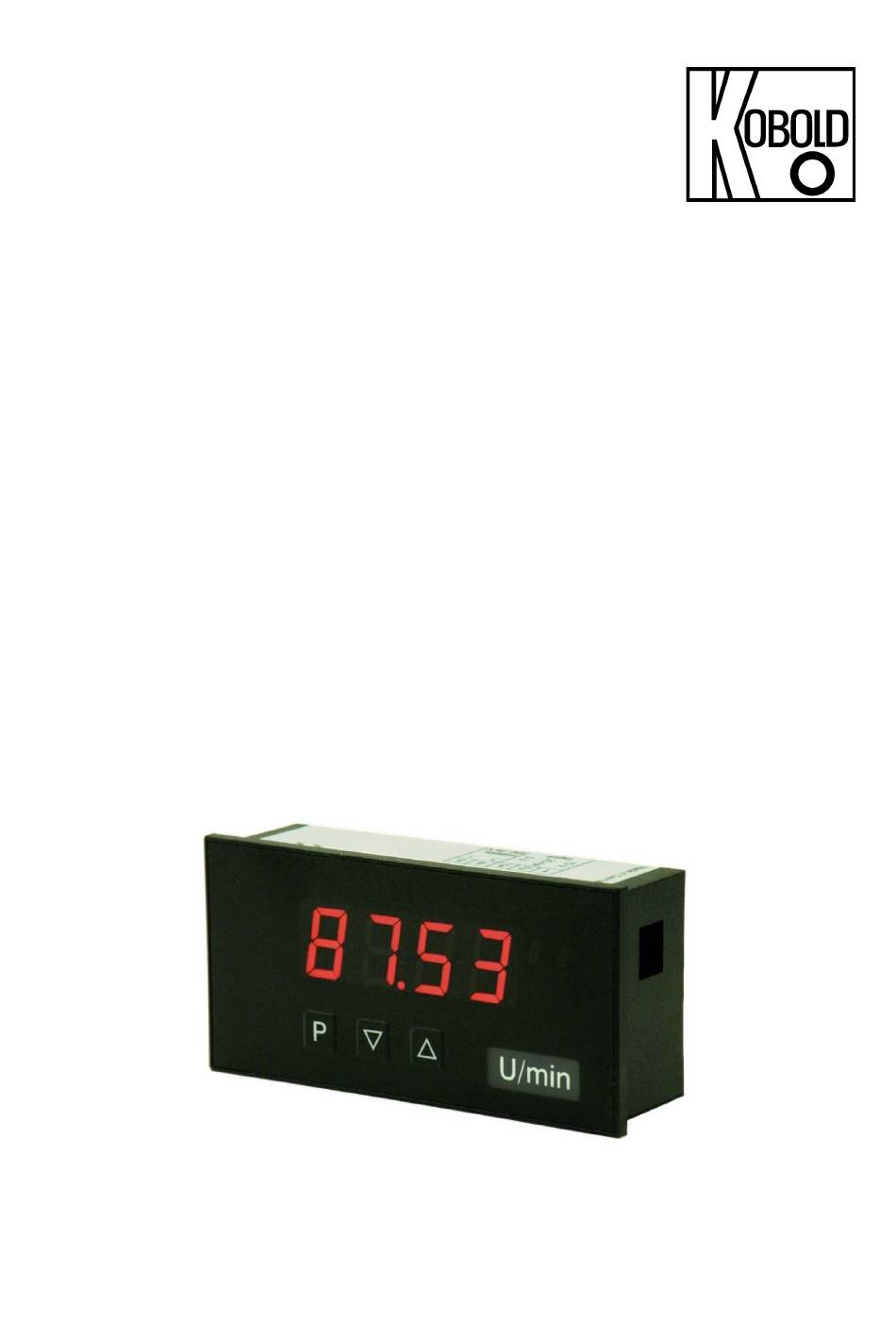

  • Page 1 Operating Instructions Digital Indicating Unit Standard signals 0/4-20 mA, 0-10 VDC Model: DAG-A4V…, 96 x 48 mm...
  • Page 2: Table Of Contents

      EU Declaration of Conformance ..............22     UK Declaration of Conformity ..............23     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 DAG-A4V K06/0523...
  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
  • Page 4: Instrument Inspection

    DAG-A4V 3. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / forwarding agent immediately, since they are responsible for damages during transit.
  • Page 5: Montage

    DAG-A4V 5. Montage Please read the Safety advice on page 16 before installation and keep this manual for future reference. 1. After removing the fixing elements, insert the device. 2. Check the seal to make sure it fits securely. 3. Click the fixing elements back into place and tighten the clamping screws by hand.
  • Page 6: Electrical Connection

    DAG-A4V 6. Electrical connection with power supply 24 VDC DAG-A4V0 with power supply 230 VAC DAG-A4V4 with power supply 115 VAC DAG-A4V2 with power supply 24 VAC Power Supply 230 VAC or 115 VAC or 24 VAC Connection examples: Below you find some connection examples, which demonstrate some practical applications.
  • Page 7: Function And Operation Description

    DAG-A4V 7. Function and operation description Operation The operation is divided into two different levels. Menu Level Here it is possible to navigate between the individual menu items. Parameterization level The parameters stored in the menu item can be parameterized here. Functions that can be adjusted or changed are always indicated with a flashing of the display.
  • Page 8: Setting Up The Device

    DAG-A4V 8. Setting up the device 8.1 Switching on Once the installation is complete, you can start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8) is displayed, followed by an indication of the software type and, after that, also for 1 second, the software version.
  • Page 9 DAG-A4V DAG-A4V K06/0523 page 9...
  • Page 10: Extended Parameterization

    DAG-A4V 8.3 Extended parameterization By pressing the [ ] & [ ] buttons during standard parameterization for one second, the display switches to the extended parameterization mode. Operation is the same as in standard parameterization. page 10 DAG-A4V K06/0523...
  • Page 11 DAG-A4V DAG-A4V K06/0523 page 11...
  • Page 12 DAG-A4V page 12 DAG-A4V K06/0523...
  • Page 13 DAG-A4V DAG-A4V K06/0523 page 13...
  • Page 14: Functional Principle Of The Set Points

    DAG-A4V 9. Functional principle of the set points Limit value exceedance „High“ By limit value exceedance the alarm S1-S2 is off below the threshold and on on reaching the threshold. Limit value undercut „Low“ By limit value undercut the alarm S1-S2 is on below the threshold and switched off on reaching the threshold.
  • Page 15: Factory Settings

    DAG-A4V 10. Factory settings 10.1 Default values DAG-A4V K06/0523 page 15...
  • Page 16: Reset To Default Values

    DAG-A4V 10.2 Reset to default values To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used:  Switch off the power supply    Press button [P]  ...
  • Page 17: Technical Information

    DAG-A4V 11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 13.
  • Page 18: Safety Advice

    DAG-A4V 14. Safety advice Please read the following safety advice and the assembly chapter 5 before installation and keep it for future reference. Proper use The DAG..-device is designed for the evaluation and display of sensor signals. Danger! Careless use or improper operation can result in Personal injury and / or damage to the equipment.
  • Page 19 DAG-A4V  The device is not suitable for installation in areas where there is a risk of explosion.  Any electrical connection deviating from the connection diagram can endanger human life and/or can destroy the equipment.  The terminal area of the devices is part of the service. Here electrostatic discharge needs to be avoided.
  • Page 20: Error Elimination

    DAG-A4V 15. Error elimination page 20 DAG-A4V K06/0523...
  • Page 21: Disposal

    DAG-A4V 16. Disposal Note!  Avoid environmental damage caused by media-contaminated parts  Dispose of the device and packaging in an environmentally friendly manner  Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.
  • Page 22: Eu Declaration Of Conformance

    DAG-A4V 17. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit model: DAG-A4V to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010 + A1:2019 + A1:2019/AC:2019...
  • Page 23: Declaration Of Conformity

    DAG-A4V 18. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit for Panel Mounting Model: DAG-A4V to which this declaration relates is in conformity with the standards noted below:...

This manual is also suitable for:

Dag-a4v0 seriesDag-a4v4 seriesDag-a4v2 series
