HUMAN MACHINE INTERFACE (HMI)

Introduction

The CB Watch 3 does not require the user to load a special software to connect to it and
access the information it captures. The CBW3 has a built-in web server and an integrated
Human Machine Interface (HMI) which is accessible from any web browser,
The HMI lets the user configure the system, set alarms and visualise all the measured
parameters, the alarm status and the curves/graphs recorded in memory.

TCP/IP configuration

Before you can access the CBW3's HMI, you must first configure your network adapter
accordingly. Open Network Connections by clicking the Start button
clicking Control Panel. In the search box, type adapter, and then, under Network and
Sharing Center, click View network connections. And then click "change adapter settings"
Right-click the connection that you want to change, and then click Properties.
prompted for an administrator password or confirmation, type the password or provide
confirmation.
CB Watch 3 User Manual

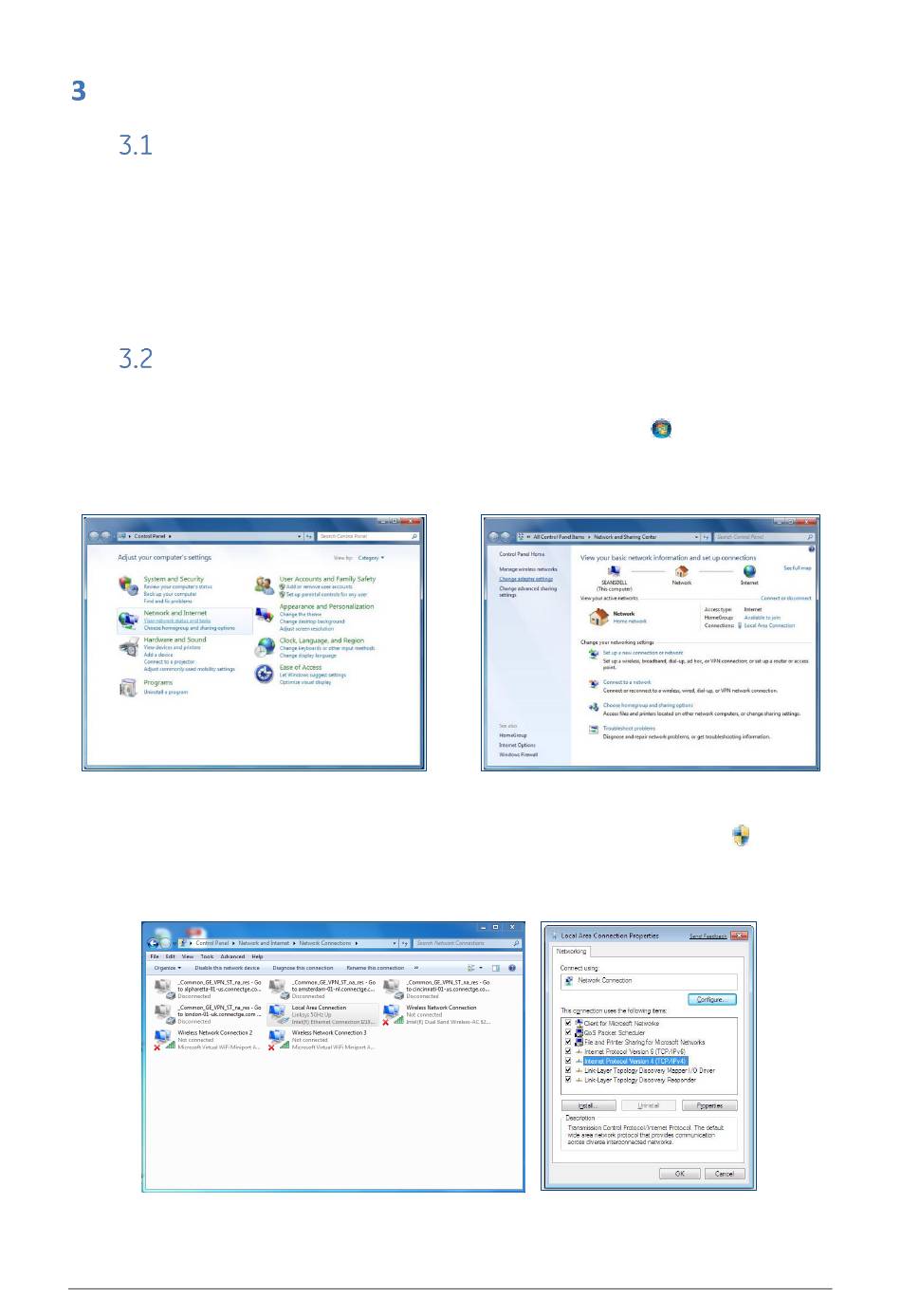

Figure 3 – Network card configuration step 1
Figure 4 – Network card configuration step 2
