Appendix 1: SQA-iO Cleaning Instructions
APPENDIX 1: Cleaning the SQA-iO
When to clean:
WEEKLY
Or if SELF-TEST or any other failure occurs
Or if System becomes contaminated with semen
Cleaning kit components:
Long cleaning brus
Fibrous material cleaning paddles (single use)
Sponge-tipped drying paddles (single use)
Cleaning fluid (single drop dispenser)
CLEANING:
STEP 1
Insert the long brush supplied in your device kit (bristle side
down) into the chamber of the SQA-iO in the same way a
testing capillary would be inserted (Fig 1 and 2).
Pull the brush out, applying downward pressure to sweep or
'dust off' the optics (you will feel a 'shelf' in the back/top
section of the chamber) – (Fig 2 and 3)
CLEANING:
STEP 2
1. Use a Fibrous material cleaning paddle (Fig 4) supplied in your
TEST KIT
Moisten with only ONE drop of cleaning fluid.
Shake off excess fluid.
Insert into the measurement compartment fibrous material
facing down and move the cleaning paddle in and out 5 times
(Fig 5).
Then, insert into the measurement compartment fibrous
material facing up and move the cleaning paddle in and out 5
times (Fig 5).
2. Dry the testing chamber using a sponge-tipped drying
paddle that is supplied in your TEST KIT.
Insert it into the testing chamber and leave it for 10 – 15
seconds (Fig 6).
Leave the drying paddle in place, DO NOT move it in and out.
AUGUST 3, 2021
SQA-iO Service Manual
h (provided in the SQA-iO device kit
)
8

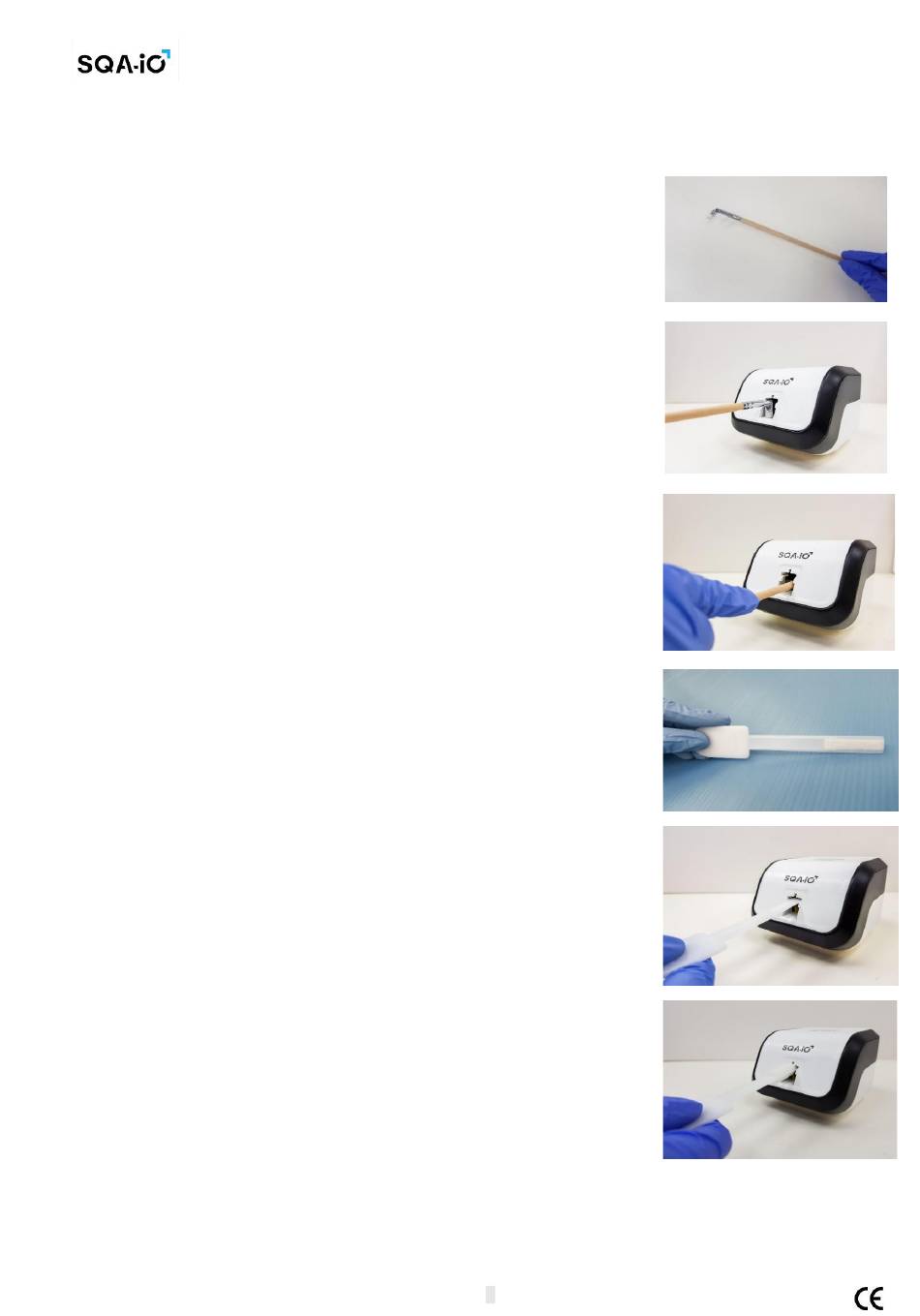

Fig.1 Long Cleaning Brush
Fig. 2 Clean the chamber
Fig. 3 "Dust off"
Fig. 4 Fibrous cleaning paddle
Fig. 5 Insert cleaning paddle down and up
Fig. 6 Dry the testing chamber with sponge
