Service Manual Version 187.5.1
•
•
•
•
•
•
•

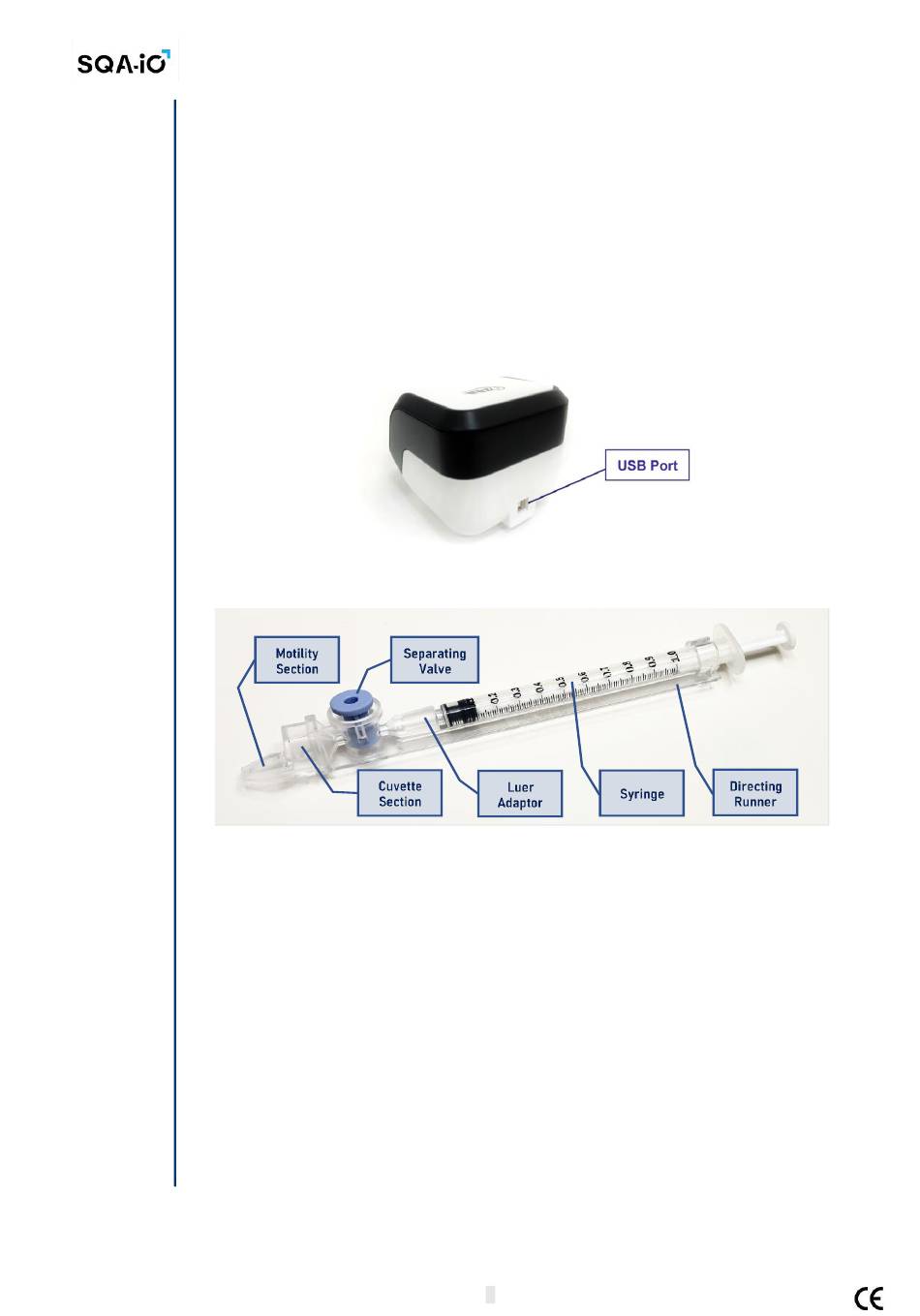

USB Port

Rear Panel: USB connection port
•
Testing
Testing Capillary: Sample delivery system
Capillary
•
•
•
•
•
•
•

Maintenance Schedule

•
Maintenance
Requirements
AUGUST 3, 2021 SQA-iO Service Manual
Sources of radiant energy:
Detector system: Two photo detectors (Motility and Optical Density)
Analysis Time: 75 seconds
Software: Resides on flash memory
Motility channel input signal:
Concentration channel input signal:
Calibrated for testing human semen only at room temperature
USB PORT: 1 connector for USB 2.0B male connection cable
Normal sample: Requires approximately 0.5cc of semen
Short samples: Requires approximately 20µl
Single-use design for testing semen in a biologically safe manner
Motility parameters are measured in the 0.3 mm (thin) "capillary" section
Concentration is measured in the 10 mm (tall) "cuvette" section
Use only manufacturers' certified testing capillaries for testing
Filling and insterting the testing Capillary:
Measurement compartment cleaning:
DAILY: When running samples
o
AFTER EVERY 10-15 tests and/or for ANY spillage
o
Use only manufacturer's cleaning kit/supplies to prevent damaging the device
o
o Refer to the "Cleaning the Capillary Compartment" Appendix in this manual
for detailed instructions
Two LEDs (motility and concentration channels)
Analog, up to 5V.
Modulated (kHz) analog, up to 5V
Refer to the Appendix section
