KNX/SMI Actuator-3TE 16K BT
X
en
Installation instructions
KNX/SMI Actuator
Important information for:
• fitters / • certified electricians / • operators
Please forward accordingly!
These instructions must be kept by the operator.
4002 630 009 0
01/03/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker KNX/SMI Actuator REG-3TE 16K BT
Summary of Contents for Becker KNX/SMI Actuator REG-3TE 16K BT
- Page 1 KNX/SMI Actuator-3TE 16K BT Installation instructions KNX/SMI Actuator Important information for: • fitters / • certified electricians / • operators Please forward accordingly! These instructions must be kept by the operator. 4002 630 009 0 01/03/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...

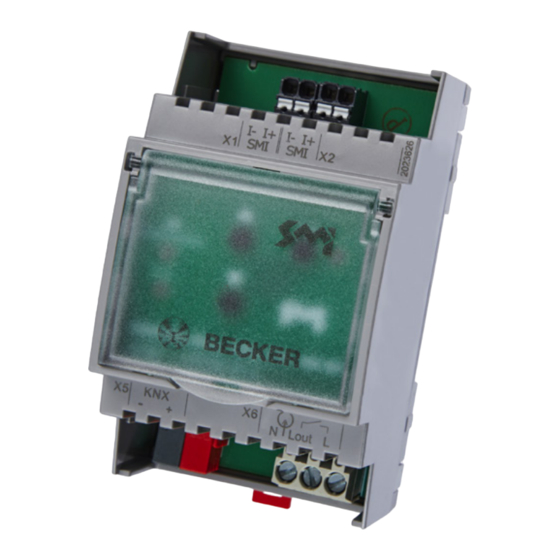

- Page 2 The software functions of the KNX/SMI actuator are described in detail in the software manual (article number 4002 630 011 0). You can download the software manual and the product database for the actuator from www.becker-antriebe.com/downloads or from the ETS online catalogue. Fig. 1 KNX/SMI Actuator REG-3TE 16K BT...
- Page 3 LED flash patterns ARNING Never randomly press the push button on Error the app without having a line of sight to the Communication Statement sun shading system. LED green Flashes SMI communication, irregu- no fault larly Flashes SMI communication, irregu- faults occur (the LED larly is deactivated during...
- Page 4 Current consumption KNX Current consumption KNX at device start Fig. 4 Dimensions Voltage V DC Conformity Available at www.becker-antriebe.com/ce This device meets the EMC directives for use in residen- tial and commercial areas. Ambient conditions Operating temperature °C Storage temperature °C...
- Page 5 Example: Junction box Connection of SMI motors Maximum of 16 motors Motor 16 GNYE Total power maximum 3600 VA for the power-saving relay of the SMI drives. Connection when using motor lines H05RR-F 5 G 0.75 with two black wires: I+ Black 1 (between BL and GNYE) Black 2 (between BN and GNYE) Motor 15...
