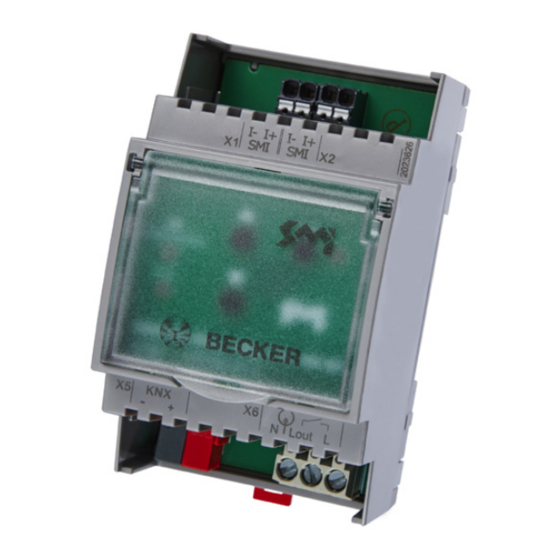

KNX/SMI Actuator-3TE 16K BT
X
en
Installation instructions
KNX/SMI Actuator
Important information for:
• fitters / • certified electricians / • operators
Please forward accordingly!
These instructions must be kept by the operator.
4002 630 009 0
10/03/2020
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker 3TE 16K BT
Summary of Contents for Becker 3TE 16K BT
- Page 1 KNX/SMI Actuator-3TE 16K BT Installation instructions KNX/SMI Actuator Important information for: • fitters / • certified electricians / • operators Please forward accordingly! These instructions must be kept by the operator. 4002 630 009 0 10/03/2020 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
- Page 2 4002 630 011 0). You can download the software manual and the product database for the actuator from Up to 16 SMI sun shading drives in up to 16 groups can www.becker-antriebe.com/downloads or from the ETS be operated centrally using the KNX/SMI Actuator REG- online catalogue.
- Page 3 INWEIS The communication between the smartphone and the KNX devices is established via Blu- etooth. This function can be switched off via the ETS (the function is always pre-set in the factory to "On"). During parameterisation, change the default password in accordance with your specifica- tions and memorise your password in order to prevent operation by unauthorised persons.
- Page 4 Technical data Miscellaneous Automatic operation Type 1 KNX/SMI Actuator min. typ. max. Unit REG-3TE 16K BT Software class Auxiliary power supply 230 V AC SMI interface Location of use Clean ambient conditions Operating voltage V AC Article number Mains frequency KNX/SMI Actuator 4002 000 001 0 REG-3TE 16K BT...
- Page 5 Example: Junction box Connection of SMI motors Maximum of 16 motors Motor 16 GNYE Total power maximum 3600 VA for the power-saving relay of the SMI drives. Connection when using motor lines H05RR-F 5 G 0.75 with two black wires: I+ Black 1 (between BL and GNYE) Black 2 (between BN and GNYE) Motor 15...
