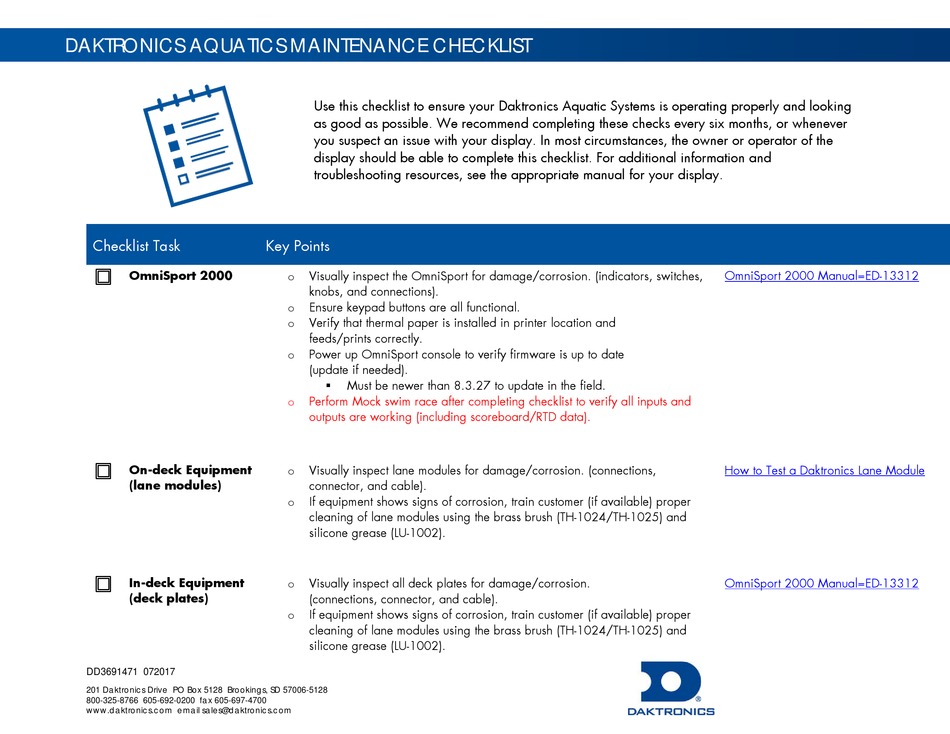

DAKTRONICS AQUATICS MAINTENANCE CHECKLIST
Checklist Task

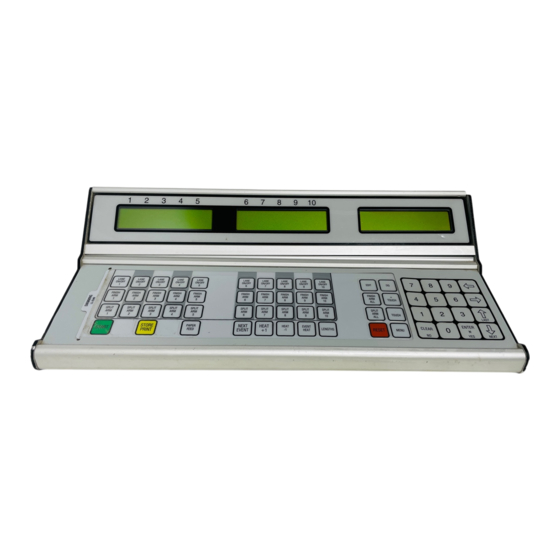

OmniSport 2000

On-deck Equipment

(lane modules)

In-deck Equipment

(deck plates)
DD3691471 072017
201 Daktronics Drive PO Box 5128 Brookings, SD 57006-5128
800-325-8766 605-692-0200 fax 605-697-4700
www.daktronics.com email sales@daktronics.com
Use this checklist to ensure your Daktronics Aquatic Systems is operating properly and looking
as good as possible. We recommend completing these checks every six months, or whenever
you suspect an issue with your display. In most circumstances, the owner or operator of the
display should be able to complete this checklist. For additional information and
troubleshooting resources, see the appropriate manual for your display.
Key Points
Visually inspect the OmniSport for damage/corrosion. (indicators, switches,
o
knobs, and connections).
Ensure keypad buttons are all functional.
o
Verify that thermal paper is installed in printer location and
o
feeds/prints correctly.
Power up OmniSport console to verify firmware is up to date
o
(update if needed).
Must be newer than 8.3.27 to update in the field.
Perform Mock swim race after completing checklist to verify all inputs and
o
outputs are working (including scoreboard/RTD data).
Visually inspect lane modules for damage/corrosion. (connections,
o
connector, and cable).
If equipment shows signs of corrosion, train customer (if available) proper
o
cleaning of lane modules using the brass brush (TH-1024/TH-1025) and
silicone grease (LU-1002).
Visually inspect all deck plates for damage/corrosion.
o
(connections, connector, and cable).
If equipment shows signs of corrosion, train customer (if available) proper
o
cleaning of lane modules using the brass brush (TH-1024/TH-1025) and
silicone grease (LU-1002).
OmniSport 2000 Manual=ED-13312
