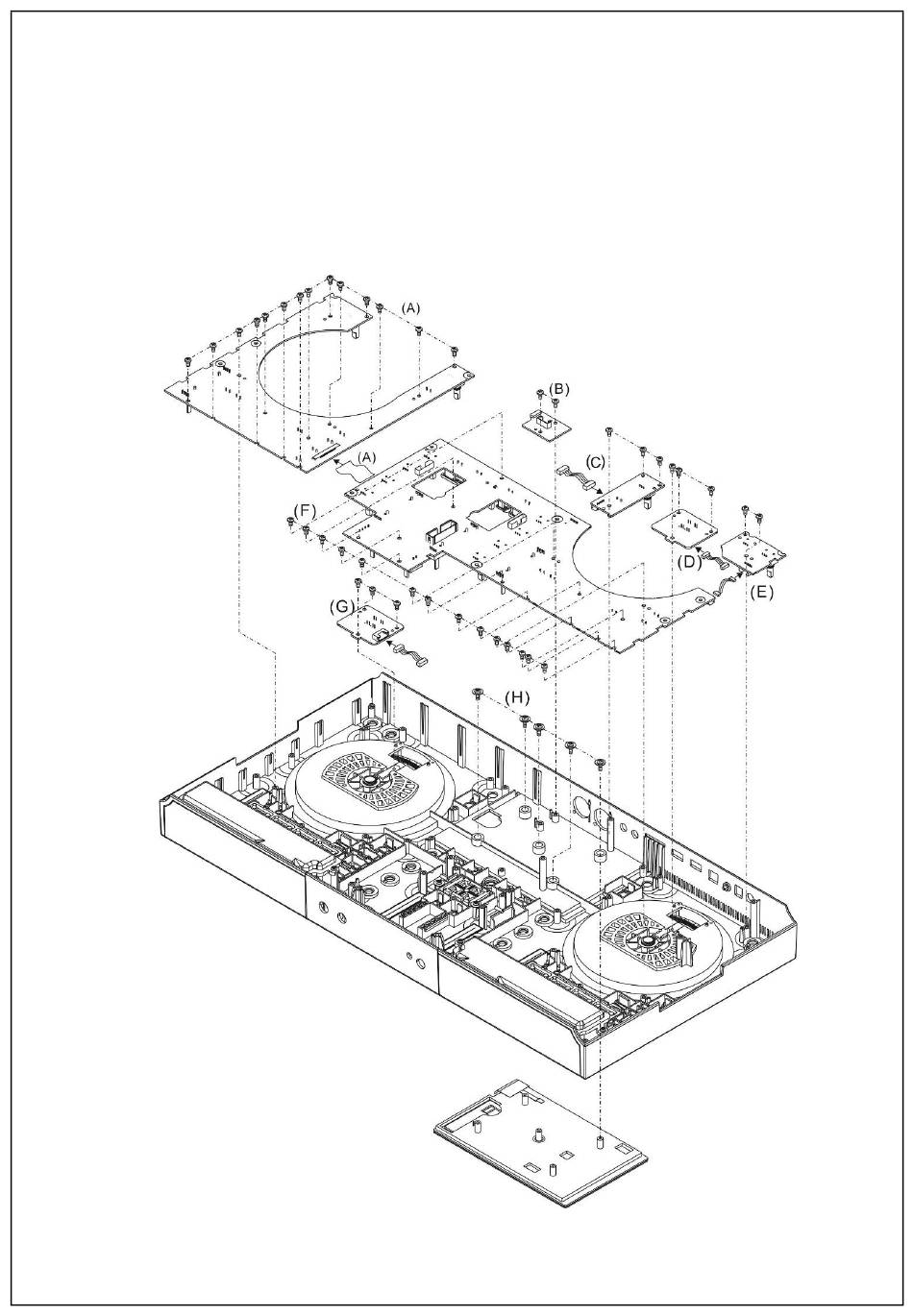

3. REMOVAL OF TOP LEFT&RIGHT (DIP) PCB AND SENSOR PCB AND TOUCH PCB AND FILTER1 PCB

AND CUE PCB. (Fig.3)

(A) REMOVE THE 14 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP RIGHT PCB DIP

ASSEMBLY .

(B) REMOVE THE 2 PCS SCREWS BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.

ASSEMBLY.

(D) REMOVE THE 3 PCS SCREWS

(E) REMOVE THE 2 PCS SCREWS

ASSEMBLY.

(F) REMOVE THE 14 PCS SCREWS BEFORE REMOVAL OF TOP LEFT PCB DIP ASSEMBLY.

(G) REMOVE THE 3 PCS SCREWS

(H) REMOVE THE 5 PCS SCREWS BEFORE REMOVAL OF 7 INCH CTP+TFT ASSEMBLY.

AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP LEFT FILTER1 PCB DIP

AND 1 PC CONNECTOR BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.

AND 1 PC CONNECTOR BEFORE REMOVAL OF TOP LEFT CUE PCB DIP

AND 1 PC CONNECTOR BEFORE REMOVAL OF TOUCH PCB SMT/AI ASSEMBLY.

(Fig.3)
