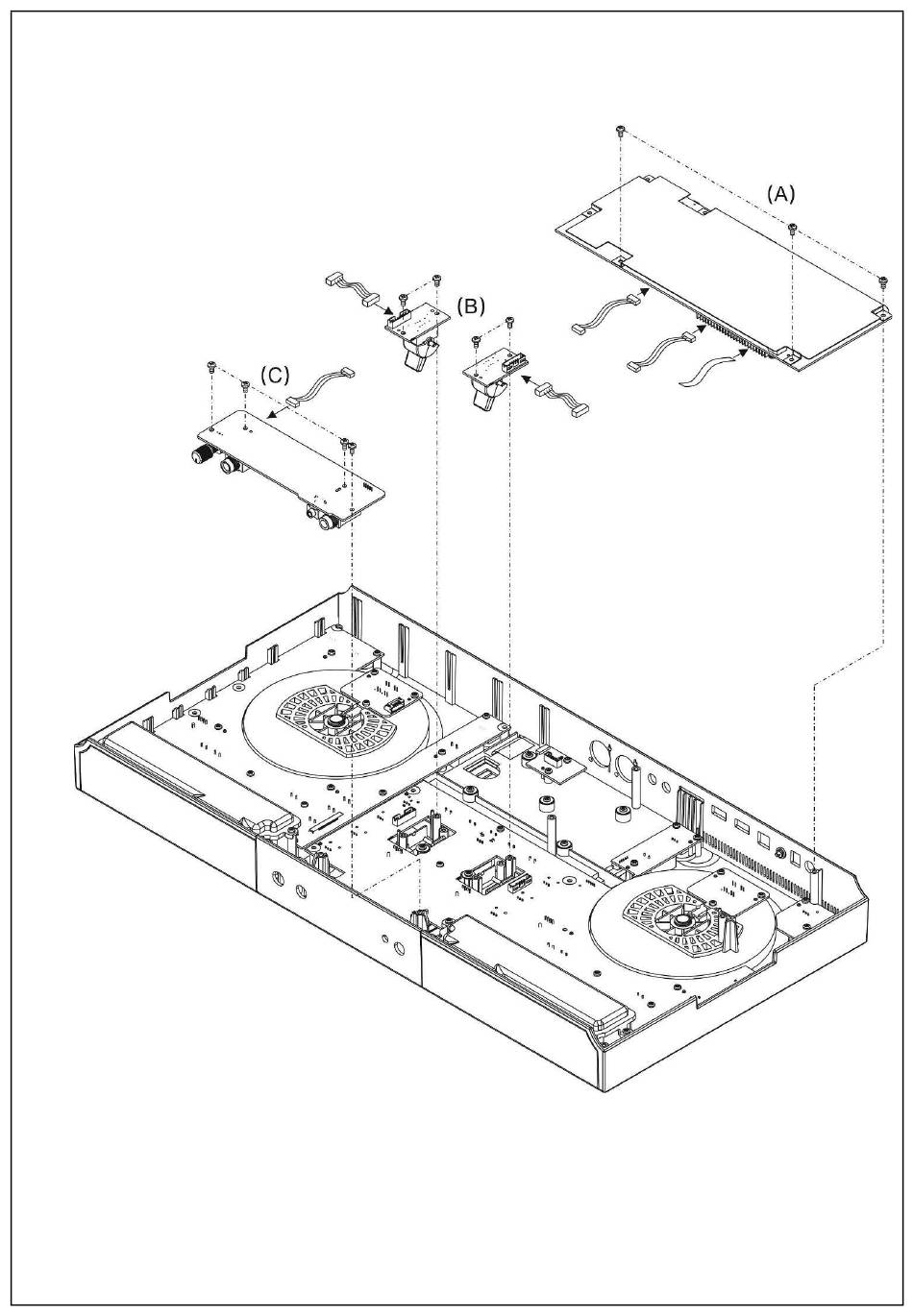

2. REMOVAL OF REAR PCB AND PADDLE PCB AND FRONT PCB. (Fig.2)
(A) REMOVE THE 3 PCS SCREWS AND 3 PCS CONNECTORS BEFORE REMOVAL OF REAR PCB .
(B) REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF PADDLE PCB .
(C) REMOVE THE 4 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF FRONT PCB .
(Fig.2)
