Mapping Manual for NUMARK MIXTRACK PLATINUM FX
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIXTRACK PLATINUM FX and is the answer not in the manual?

Questions and answers

Related Manuals for Numark MIXTRACK PLATINUM FX

Summary of Contents for Numark MIXTRACK PLATINUM FX

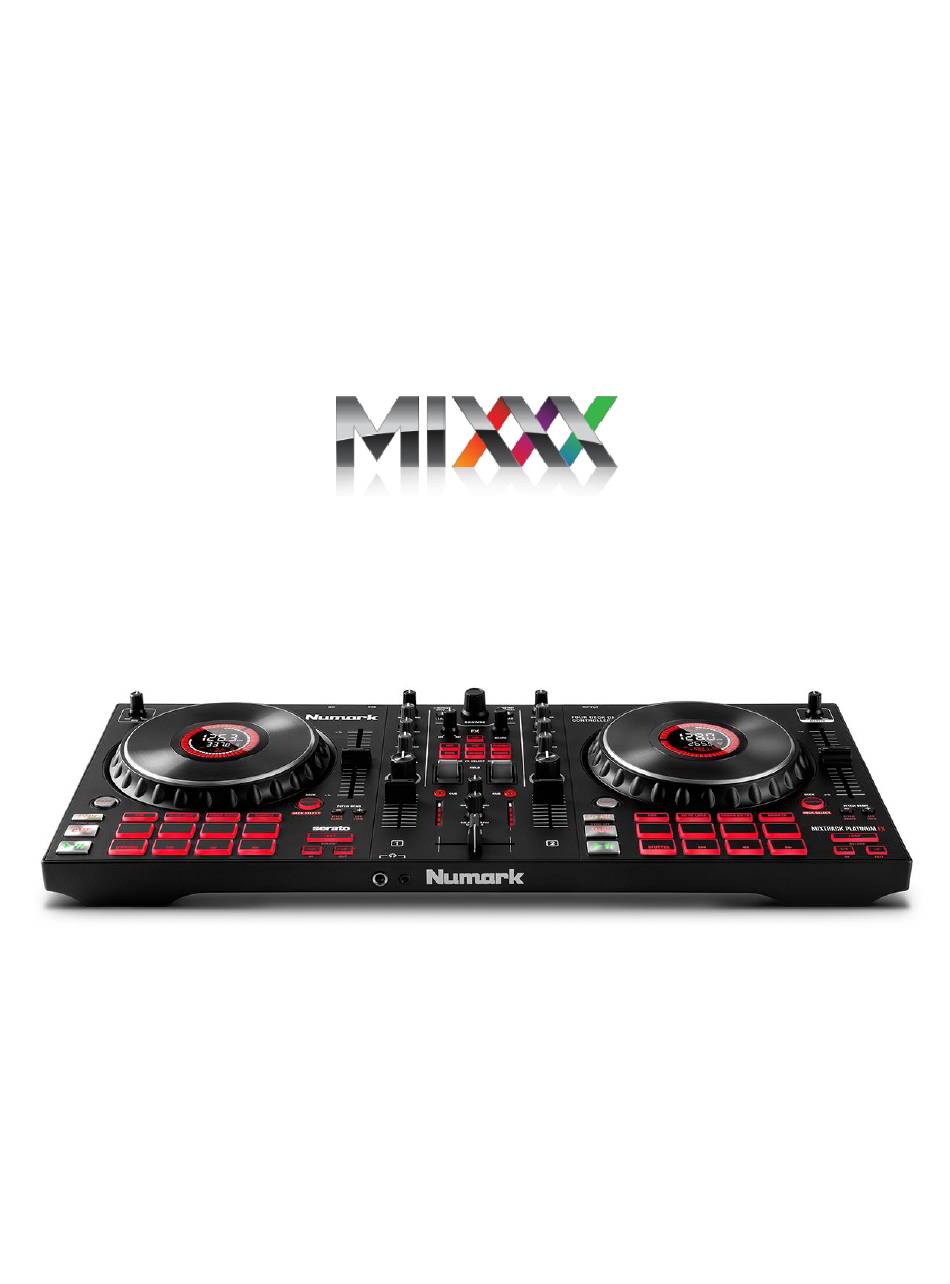

  • Page 1 Mapping Manual for NUMARK MIXTRACK PLATINUM FX V1.0...
  • Page 2 Index 1. Numark Mixtrack Platinum FX links 2. Overview 3. Audio Interface 4. Firmware 5. Control Mapping 6. Performance Pad Modes a. Pad Loop Timings b. Cue (Mode) c. Auto Loop (Mode) d. Fade Cuts (Mode) e. Sample (Mode) 7. Notes...

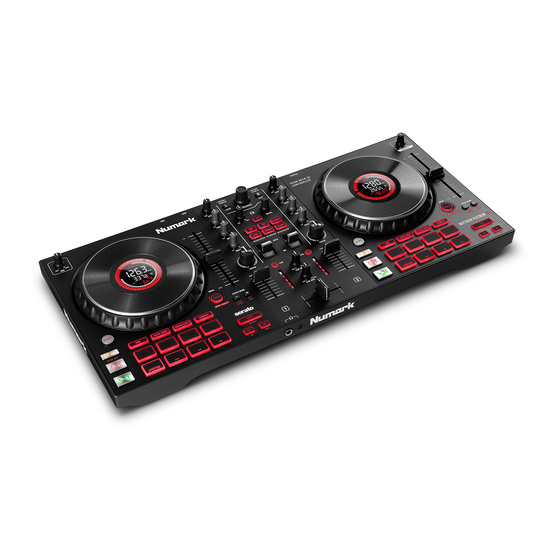

  • Page 3 (with 4 channel layering) entry level DJ controller with an integrated audio interface. The stand out feature of the Mixtrack Platinum FX is the LCD displays integrated into the jog wheels. It is a USB Audio and MIDI Class compliant device and works with Linux, macOS, and Windows.
  • Page 4 Control Mapping Numark Mixtrack Platinum FX (Controls Condensed) Default Function Shift Function Browse Knob: Speed Scrolling Rotate this knob to cycle through folders and SHIFT + Rotate tracks. Press the knob to cycle between the Crates Directory Open/Close and Library. Hold Shift and rotate the knob to SHIFT (left deck) quickly scroll through tracks and folders.
  • Page 5 Cue Mix: Adjusts the audio output to the headphones, mixing between the cue output and the master mix output. Cue Gain: Adjusts the volume for headphone cueing. Master Output LEDs: Displays the audio level going to the Master Output. Load: Eject Deck Press one of these buttons while a track is selected Removes the track from related...
  • Page 6 Pitch Bend Down: Pitch Range Press and hold to momentarily reduce the speed of Hold Shift and this button to the track. adjust. Pitch Bend Up: Keylock Press and hold to momentarily increase the speed Hold Shift and this button to of the track.
  • Page 7 Platter/Jog Wheel: Scrub Scroll This capacitive, touch-sensitive jog wheel controls Scrub Scrolling while holding Jog the audio when the wheel is touched and moved. wheel. When the Scratch button is not active, use the jog wheel to bend the pitch of the track. When the Scratch button is active, use the jog wheel to grab and move the audio, "scratching"...
  • Page 8 Sync: Sync Deactivate Press this button to automatically match the Press again to deactivate Sync. corresponding Deck's tempo with the opposite Deck's tempo. Hold: Locks sync Cue Track Start Sets and recalls the main Cue point in the current Return cue head to beginning of track.
  • Page 9 Fader Cuts (Pad): SHIFT: Each pad triggers an roll of With this Pad mode, the top 4 performance pads a different length are used to perform transform effects for cuts on scratching. *See Performance Pad Modes Section Section Sampler (Pad): SHIFT: Selects layer 2 of samples With this Pad mode, each pad triggers a sample in - Performance pads then trigger...

  • Page 10: Table Of Contents

    Performance Pads Modes The pads are for controlling cue’s, loops, and samples via various modes & layers. To select a mode, hold down the Pad Mode button and press one of the upper pads. An LED under the pad section indicates the currently selected Mode Auto Loop Fader Cuts...

  • Page 11: Shift Hot Cue

    Cue (Mode) Mode Pad Function Shift (Hold) Normal Cue Pad 1-8 Remove Cue Each pad assigns a Hot Cue Point, or Removes that cue point. returns the track to that Hot Cue Point. When a pad is unlit, you can assign a Hot Cue Point by pressing it at the desired point in your track.

  • Page 12: Auto Loop

    Auto Loop (Mode) Mode Pad function Shift function Normal Auto Loop Roll Loop (Hold shift) Activates a loop section of pre- Performs a standard Auto Loop, but determined pad beat lengths, which when the loop is turned off the loops automatically. playback position is returned to the position where it would be, if it had not entered the loop.

  • Page 13: Fader Cuts

    Fader Cuts (Mode) Mode Pads function Shift (as Pad Action) *Note: Shift + Pad Mode buttons, puts Normal Fader Cuts (Pad 1-4) decks into an alternate pad layer. In The pads will mute and unmute the that layer shift can be further used as deck’s audio signal in a way that an “pad action”...

  • Page 14: Pad

    Sample (Mode) Mode Pads function Shift function Normal (P1-8) Play Sample Stop Playback or Load Sample if the slot is empty. Shift (P9-16) Play Sample Stop Playback or Load Sample if the slot is empty. Alternative (P1-4) Pitch Play Change Range 3 ranges Play a single cue Point at variable Shift + Sample pitches.
  • Page 15 NOTES...
