Mini Pro Chassis Dyno V2 Instruction Manual page 9

ASSEMBLY GUIDE

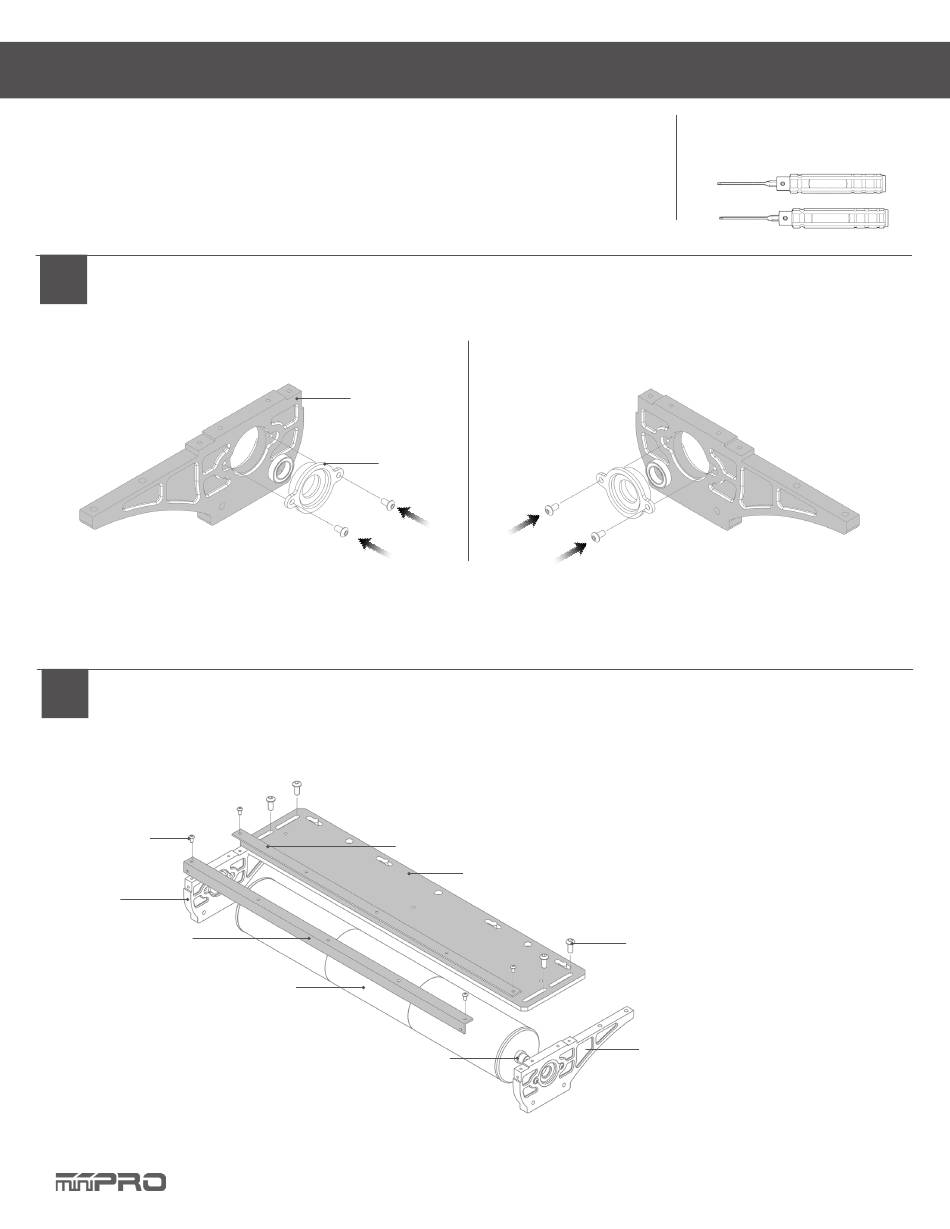

Part II. Roller Holder Assy.
Build Time: 20min
3
Install the bearing holders to the side covers *
Note: Make sure you install (2) left side and (2) right side bearing holders.
(2) Left Side Cover
3.1. Make sure the bearing is installed on the bearing holder.
3.2. Install the bearing holder on the Side Cover using (2) M3x6mm hex screws
3.3. Repeat the process for the remaining side covers. Make sure you install (2)
left side and (2) right side.
4
Install rollers, side covers, upper deck, and L-shape brackets *
Note: Do not overtighten the screws.
(4) M3 x6mm Screws
Left Side Cover
FR. L-Bracket
* For 2WD models, only (2) two bearing holders and (1) one roller are installed.
(4) Side Covers
Bearing
Holder *
RR. L-Bracket
Roller
Small Shaft
(2) Right Side Cover
4.1. For 2WD Models see page 8 and skip step 4.2.
4.2. Insert the roller's smallest shaft on the right
side cover bearing, and the larger shaft on the left
side cover bearing.
4.3. Install the FR. and RR. L-brackets to the both
side covers with the (4) M3 screws.
4.4. Install the Upper Deck on the side covers
using (4) M5 screws.
Upper Deck
(4) M5 x 12mm Screws
Right Side Side Cover
CONT.
Tools
2.0mm
3.0mm
8
