ASSEMBLY GUIDE

Part I. Frame Assembly
Build Time: 10min
1

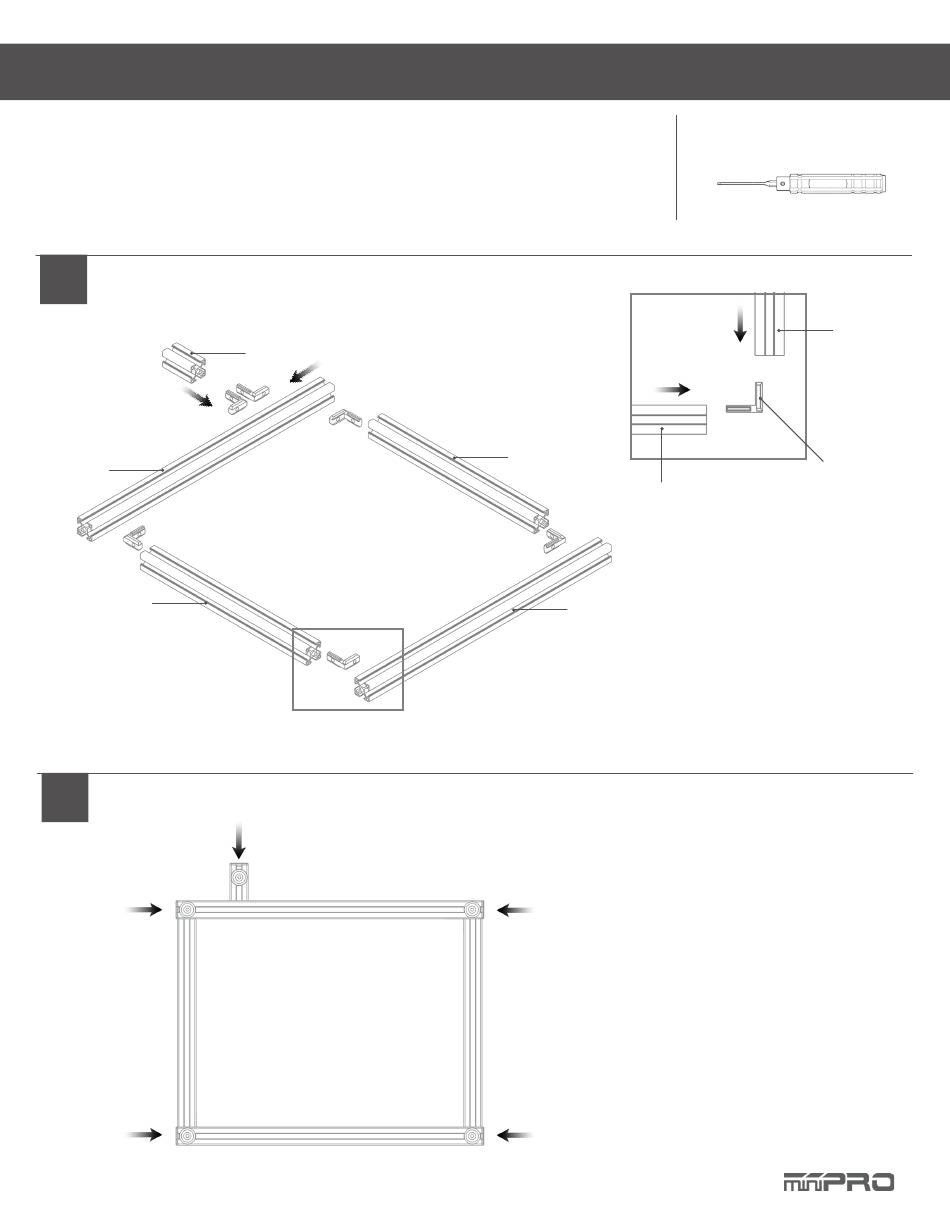

Install L-brackets to the extruded frames
Note: Do not overtighten the screws yet because later it will need adjust-
ment.
A
B
2
Install the edge covers and rubber feets
7
C (60mm)
Bottom View
B (342mm) x2
A (500mm) x2
1.1 Install (4) L-brackets to A and B extruded frames on all (4) corners.
Make sure to follow the correct orientation for each L-bracket. Do not
overtighten the screws.
1.2 Install (2) L-brackets to the C extruded frame. Do not overtight
the screws.
2.1. Install (5) rubber feets with T-nuts at the bottom of
the chassys dyno.
2.2. Install the (5) plastic edge covers.
Tools
3.0mm
A
L-bracket
B (342mm)
orientation
