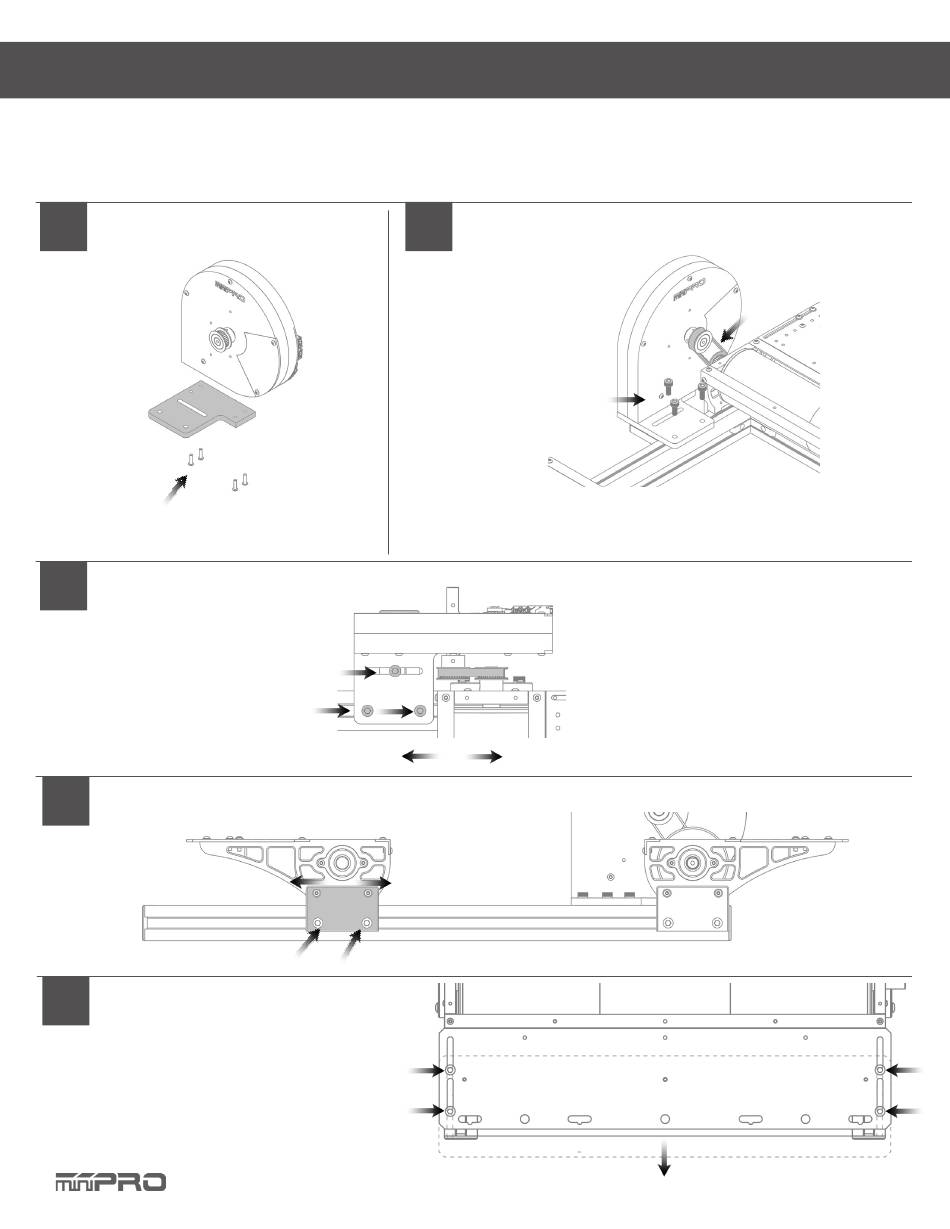

ASSEMBLY GUIDE
6
Install the Flywheel Base
Install the (4) M3 screws below the flywheel
base
8
Adjust Belt Tension
9
Adjust Wheelbase Install Belt Straps on Vehicle
10
Adjust Tension of the Belt Straps
Uncrew to adjust upper deck and tension of the straps
Install (4) M5 screws with (3)
T-nuts to fix the flywheel unit.
Unscrew to set
tension of belt
More
Tension
Uncrew to adjust wheelbase
7
Install the Flywheel Assy. , Pulley and
Belt
NOTE: If you are using your Motor Dyno Flywheel Assy then
you need to remove the belt shield and holder from the dyno.
Less
Tension
NOTE: Make sure you don't apply too
much tension (load) to the flywheel unit
to damage in the flywheel.
CONT.
