A1 - Voltage & Current Sensor - Mini Pro Chassis Dyno V2 Instruction Manual

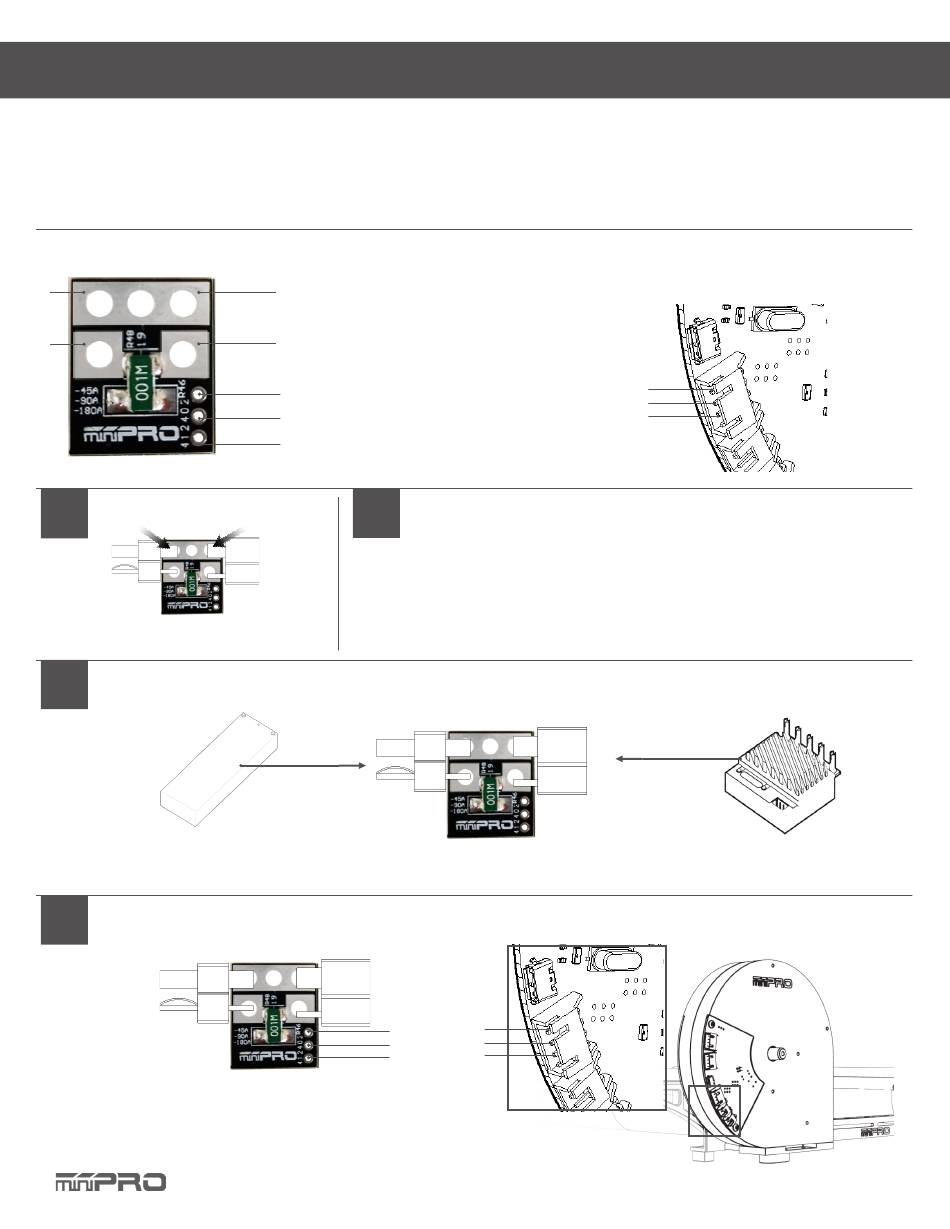

ELECTRONIC CONNECTIONS
miniPRO A1 Voltage and Current Sensor Connection
Voltage and Current Sensor Diagram
7
6
1
Solder Connector
Solder connectors of your preference
OR 14 gauge wires
3
Connect Sensor
3.1. Connect the battery to the sensor's
battery connector.
4
Connect Sensor to Electronic Board
Connect the sensor in the electronic board with the provided cable.
1
1. (-) ESC Conn. (Black)
2. (+) ESC Conn. (Red)
2
3. Electronic Board Conn. - Current
4. Electronic Board Conn. - Voltage
3
5. Electronic Board Conn. - Ground
4
6. (+) Battery Conn. (Red)
7. (-) Battery Conn. (Black)
5
2
Connect Transmitter, Receiver, and ESC to the Motor
Please refer to the ESC, Transmitter, and Receiver manufacturers' instruction manual.
3
2
1
5
4
3
3.2. Connect the ESC's battery port to the
sensor's ESC connector. See above sensor
diagram for more information.
3.3. Turn ON the ESC and make sure it powers
on. If the sensor starts to overheat, discon-
nect the battery immediately.
1
2
3
Voltage and Current
Board Diagram
CONT.
