ASSEMBLY GUIDE
2WD Models Only

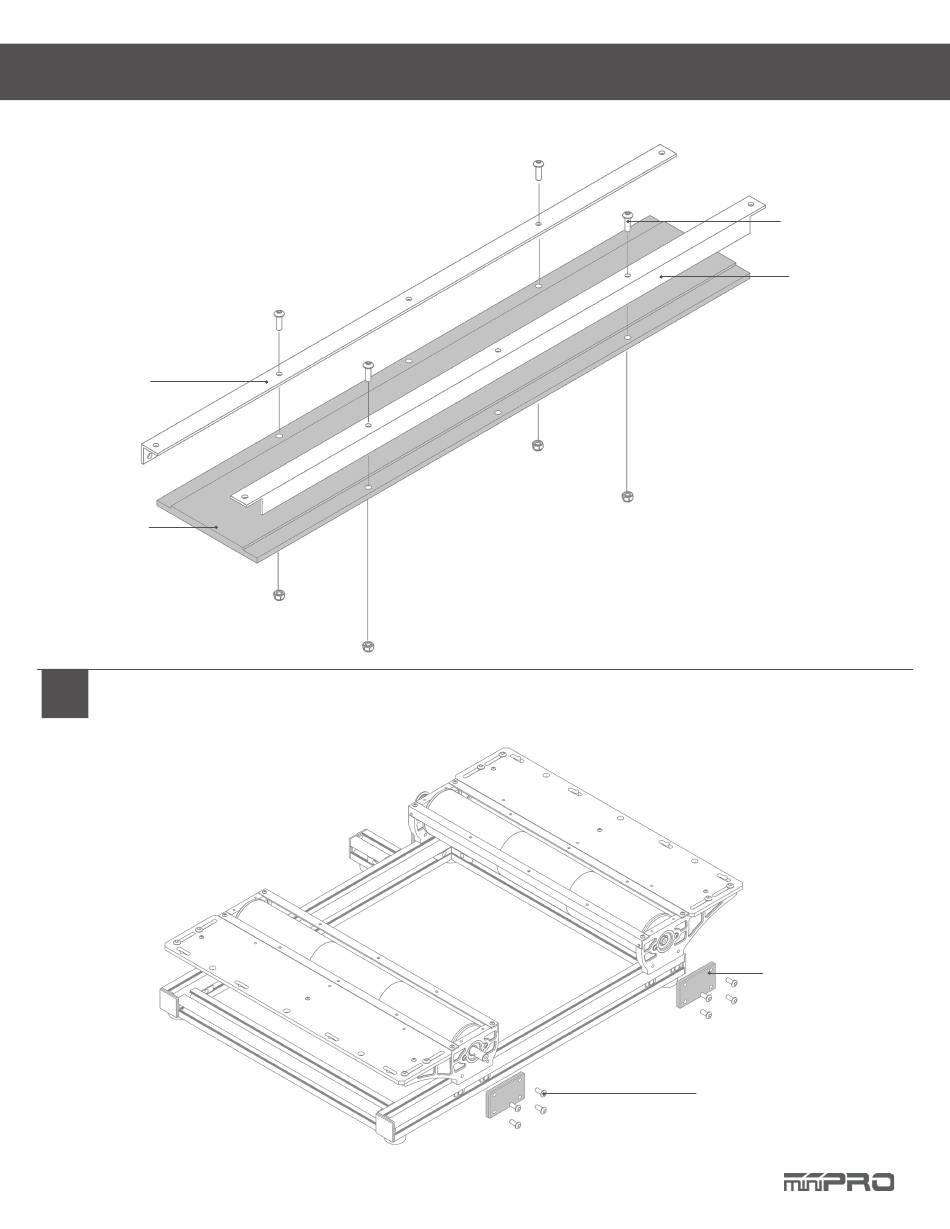

Install the (4) M3 screws and nuts to the L-brackets and upper deck.
FR. L-Bracket
2WD Upper Deck
5
Install the Side Cover Holders to the Frame
5.1. Install the (4) Side cover holders to the frame.
5.2. Make sure the rollers are rotating smoothly and
tighten all the screws (L-Brackets, Upper Decks and
Frames)
9
CONT.
(4) M3 x 12mm Screws
with Nuts
RR. L-Bracket
(4) Side Cover Holder
(16) M5 x 12mm Screws
with (8) T-Nuts
