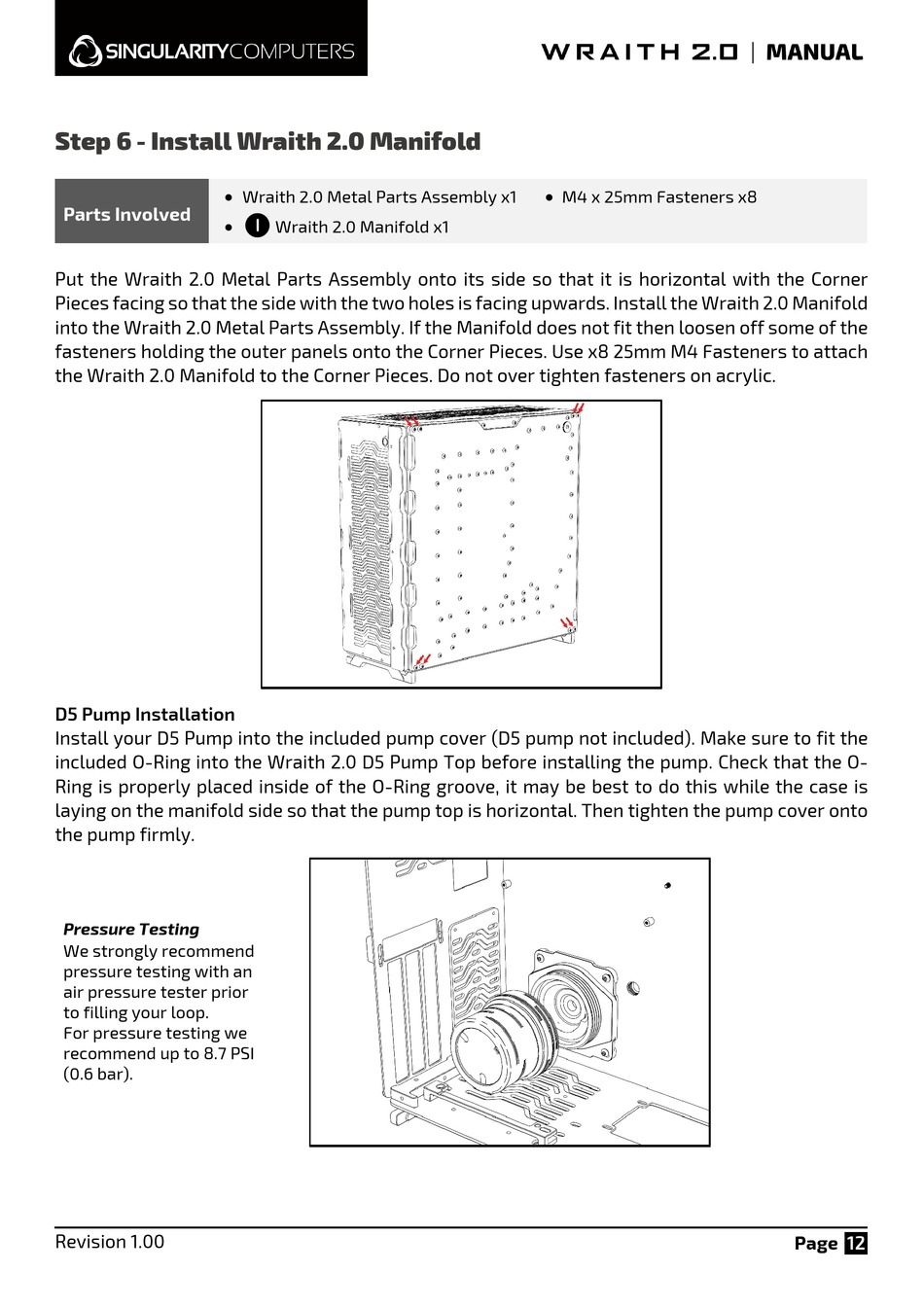

Step 6 - Install Wraith 2.0 Manifold

•
Parts Involved
•
Put the Wraith 2.0 Metal Parts Assembly onto its side so that it is horizontal with the Corner
Pieces facing so that the side with the two holes is facing upwards. Install the Wraith 2.0 Manifold
into the Wraith 2.0 Metal Parts Assembly. If the Manifold does not fit then loosen off some of the
fasteners holding the outer panels onto the Corner Pieces. Use x8 25mm M4 Fasteners to attach
the Wraith 2.0 Manifold to the Corner Pieces. Do not over tighten fasteners on acrylic.
D5 Pump Installation
Install your D5 Pump into the included pump cover (D5 pump not included). Make sure to fit the
included O-Ring into the Wraith 2.0 D5 Pump Top before installing the pump. Check that the O-
Ring is properly placed inside of the O-Ring groove, it may be best to do this while the case is
laying on the manifold side so that the pump top is horizontal. Then tighten the pump cover onto
the pump firmly.
Pressure Testing
We strongly recommend
pressure testing with an
air pressure tester prior
to filling your loop.
For pressure testing we
recommend up to 8.7 PSI
(0.6 bar).
Revision 1.00
Wraith 2.0 Metal Parts Assembly x1
i
Wraith 2.0 Manifold x1
•
M4 x 25mm Fasteners x8
12
