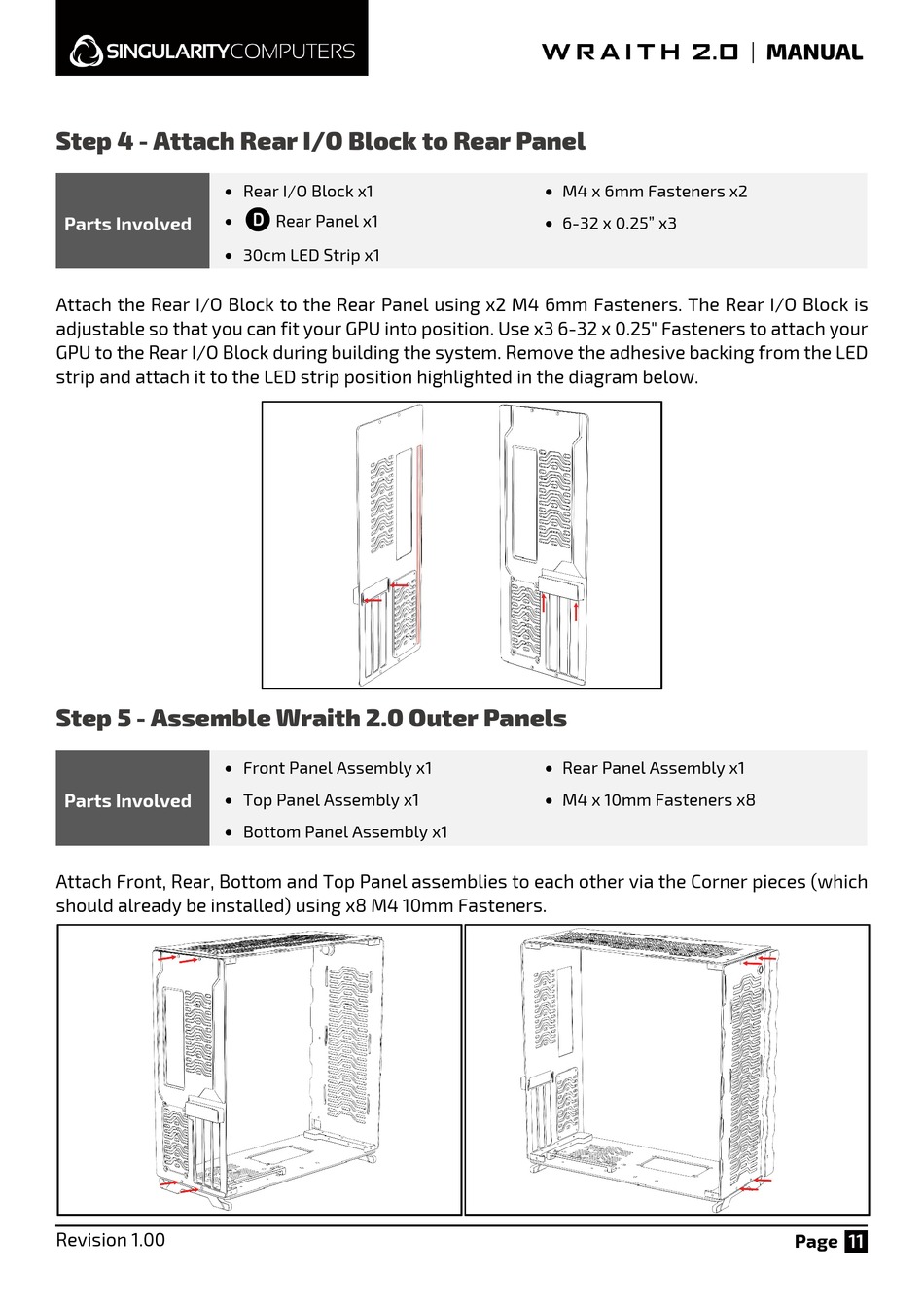

Step 4 - Attach Rear I/O Block to Rear Panel

• Rear I/O Block x1
•
Parts Involved
• 30cm LED Strip x1
Attach the Rear I/O Block to the Rear Panel using x2 M4 6mm Fasteners. The Rear I/O Block is
adjustable so that you can fit your GPU into position. Use x3 6-32 x 0.25" Fasteners to attach your
GPU to the Rear I/O Block during building the system. Remove the adhesive backing from the LED
strip and attach it to the LED strip position highlighted in the diagram below.

Step 5 - Assemble Wraith 2.0 Outer Panels

• Front Panel Assembly x1
• Top Panel Assembly x1
Parts Involved
• Bottom Panel Assembly x1
Attach Front, Rear, Bottom and Top Panel assemblies to each other via the Corner pieces (which
should already be installed) using x8 M4 10mm Fasteners.
Revision 1.00
d
Rear Panel x1
• M4 x 6mm Fasteners x2
• 6-32 x 0.25" x3
• Rear Panel Assembly x1
• M4 x 10mm Fasteners x8
11
