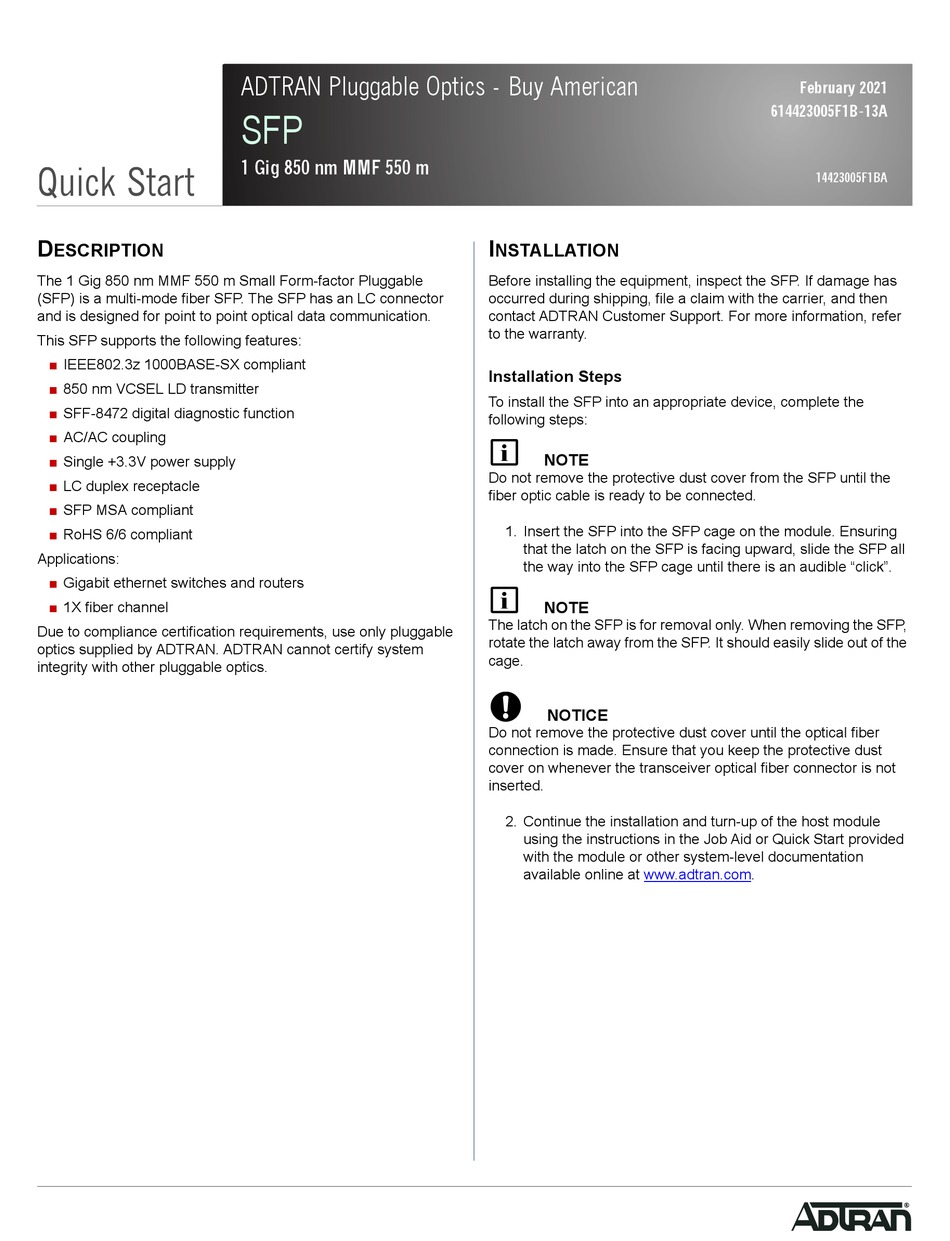

ADTRAN SFP Quick Start

Quick Start
D
ESCRIPTION
The 1 Gig 850 nm MMF 550 m Small Form-factor Pluggable
(SFP) is a multi-mode fiber SFP. The SFP has an LC connector
and is designed for point to point optical data communication.
This SFP supports the following features:
■ IEEE802.3z 1000BASE-SX compliant
■ 850 nm VCSEL LD transmitter
■
SFF-8472 digital diagnostic function
■ AC/AC coupling
■ Single +3.3V power supply
■ LC duplex receptacle
■
SFP MSA compliant
■ RoHS 6/6 compliant
Applications:
■ Gigabit ethernet switches and routers
■
1X fiber channel
Due to compliance certification requirements, use only pluggable
optics supplied by ADTRAN. ADTRAN cannot certify system
integrity with other pluggable optics.
ADTRAN Pluggable Optics - Buy American
SFP
1 Gig 850 nm MMF 550 m
I
NSTALLATION
Before installing the equipment, inspect the SFP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
Installation Steps
To install the SFP into an appropriate device, complete the
following steps:
g
NOTE
Do not remove the protective dust cover from the SFP until the
fiber optic cable is ready to be connected.
1. Insert the SFP into the SFP cage on the module. Ensuring
that the latch on the SFP is facing upward, slide the SFP all
the way into the SFP cage until there is an audible "click".
g
NOTE
The latch on the SFP is for removal only. When removing the SFP,
rotate the latch away from the SFP. It should easily slide out of the
cage.
w
NOTICE
Do not remove the protective dust cover until the optical fiber
connection is made. Ensure that you keep the protective dust
cover on whenever the transceiver optical fiber connector is not
inserted.
2. Continue the installation and turn-up of the host module
using the instructions in the Job Aid or Quick Start provided
with the module or other system-level documentation
available online at www.adtran.com.
February 2021
614423005F1B-13A
14423005F1BA
