ADTRAN jobAid+ SFP+ 11.3 G BIDI 20KM Manual

Product P/N: 1442422FX
Documentation for ADTRAN Carrier Networks products is
available for viewing and download directly from the
ADTRAN Support Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including
customized training and courses taught at our facilities or at
customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The SFP+ 11.3 G BIDI 20KM modules plug into ADTRAN
equipment designed to accept Small Form-factor Pluggables
(SFPs). Installed into an appropriate host unit, the SFP+ BIDI
provides a 10G optical interface to the supporting system.
This Job Aid supports the following SFP+ Modules:
Part Number TX Wavelength
1442422F1 1320-1340nm
1442422F2 1260-1280nm
NOTE
■ The 1442422F1 and 1442422F2 must be deployed as pairs at
each end of the network. The 1442422F1 must be connected to
the 1442422F2 at the other end of the fiber.
Rx: 1260 to
1280 nm
Host
Tx: 1320 to
Unit
1340 nm
1442422F1
■ To ensure compatibility, refer to the documentation provided
with the host module.

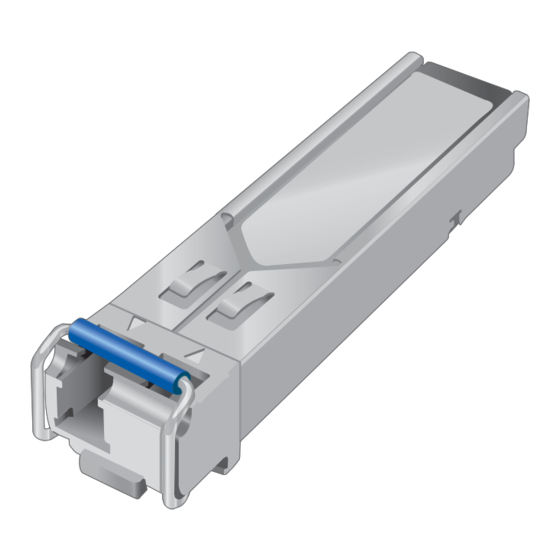

Small Form-factor Pluggable
SFP+ 11.3 G BIDI 20KM
The following related online documents and resources provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool: http://www.adtran.com/sfp)
RX Wavelength CLEI
1260-1280nm BVL3AYHD_ _
1320-1340nm BVL3AYGD_ _
Rx: 1320 to
1340 nm
Host
Tx: 1260 to
Unit
1280 nm
1442422F2
The following features are supported on the SFP+ BIDI:
■ 9.95 - 11.3 Gbps, single-fiber operation
■ 20 km maximum optical span
NOTICE
Due to compliance certification requirements, only SFP+ modules
supplied by ADTRAN are to be used with the host module.
ADTRAN cannot certify system integrity with other SFPs.
S
PECIFICATIONS
■ Power: Less than 1.5W
■ Optical Specifications:
♦ Data Rate: 9.95 to 11.3 Gbps
♦ Optical Transmit Level: –4.2 dBm to +3.0 dBm
♦ Optical Receive Level: –14.4 dBm to +0.5 dBm
♦ Spectral Width: 1 nm maximum (20.0 dB Spectral Width)
♦ Extinction Ratio: 3.5 dB minimum
♦ SMSR: 30 dB minimum
♦ Power Penalty: 1.0 dB
♦ Optical Budget: 9.2 dB
♦ Minimum Span Attenuation: 2.5 dB
♦ Optical Span: 20 km
♦ Optical connectors: LC
■ Environmental:
♦ Operational temperature range: –40°C to +85°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity to 95%, noncondensing
jobAid
Issue Date: January 2015
Document P/N: 61442422FX-22B
