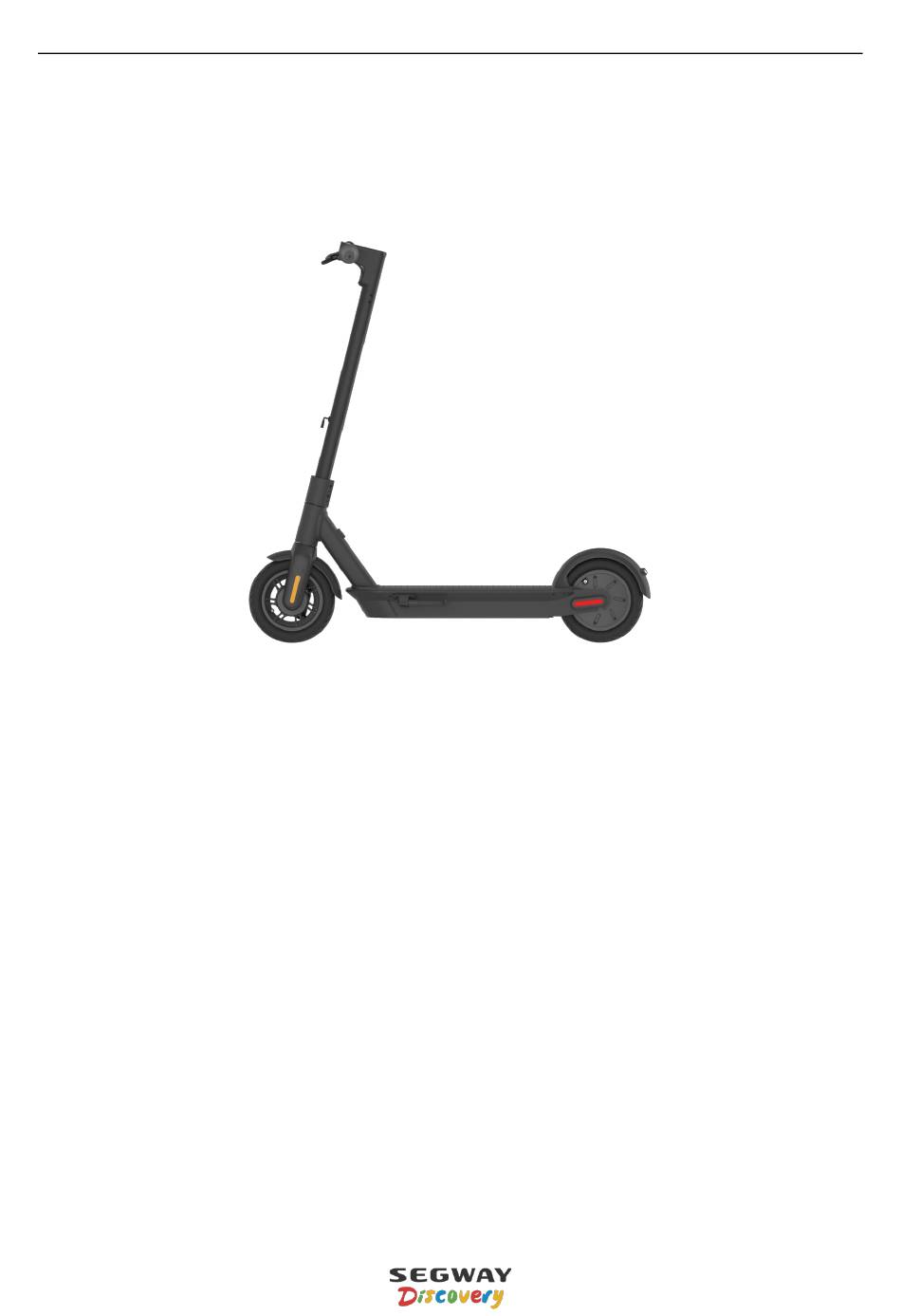

- Page 1 1 / 14 Maintenance Manual of Model MAX...
-
Page 2: Table Of Contents
2 / 14 Contents Product Introduction .......................... 4 Max series..........................错误!未定义书签。 Parts Identification ..............................5 1.3 Function ..................................5 1.3.1 Display introduction ............................5 1.3.2 Transportation mode ............................6 1.3.3 Learning to ride ..............................7 2. Battery and charging ..........................8 2.1 Battery parameter ............................... - Page 3 3 / 14 3.5 Firmware Update ............................... 10 Safety issues ............................11 Safety on riding ..............................11 4.2 Storage and Operating Temperature ........................9 4.3 Design Requirement ..............................13 Safety on battery ..............................14...
-
Page 4: Product Introduction
4 / 14 1. Product Introduction 1.1 Specification of MAX 2.0 Product name Max. Speed Limit (Configurable 25km/h by FW) Net weight(±0.5kg) 20kg Full charge trip 60km Battery capacity 36V 551Wh Lithium Battery Gradeability 14% (Approx. 8°), (Test under 75kgs, approx.12km.h) Charging time Approx.6h (Built-in 2.9A charger)/Approx.4h (External 5A charger) -
Page 5: Parts Identification
5 / 14 1.2 Parts Identification Remark：Related parts can be purchased, please contact customer support service. 1.3 Function 1.3.1 Display introduction Detailed explanation of different icons on the display... - Page 6 6 / 14 The detailed explanations of these icons are shown below: Icon Type Icon Display Display Description When the Speed Display is enabled, the number will indicate the speed. When the Battery Capacity Display is enabled, the number will indicate the battery capacity. LED Display Enabled When the Error Type Display is enabled, the number will indicate the error code LED Display Off...
-
Page 7: Transportation Mode
7 / 14 1.3.2 Transportation mode After unpack and take out the kick scooter, There is a transportation mode that designed to keep healthy battery during long time transportation to avoid over-discharge. Turn on the Transportation Mode: it is operated by the IOT App ; Turn off the Transportation Mode: Plug the charger, charging longer than 3 seconds to turn on the scooter, and transportation mode is turned off. -
Page 8: Battery And Charging
2.3 Charging precaution Lithium Battery Product needs to charge regularly. Use the charger for Model Max to charge the scooter when the power level is low. Fully charge the scooter and reset the scooter to transportation mode before keep in store house longer than one week. -
Page 9: Maintenance
9 / 14 (Spare Part) Transportation Mode is enabled before leaving Factory A new Scooter shipped out Within 150 days from delivery from NB factory (after Leaving NB factory) Customer enable the Transportation Mode A fully charged Scooter, Within 150 days after fully with the brand-new or like charged. -
Page 10: Regular Check List
3.2 Regular check list You can download the full checklist in our customer support system here. 3.3 Replacement of common parts List of Max SOP Name of SOP Name of SOP SOP of Display Incompletely SOP of Replacing Rear Wheel... -
Page 11: Firmware Update
Customers should Keep the firmware up to date through the backend management system “Dashboard” or mobile app Launcher. Talk to Segway Discovery Engineer to find out an alternative way of upgrade Report problems to customer service. 4. Safety issues 4.1Safety on riding When in riding, do not ride the kick scooter in the rain. - Page 12 12 / 14 Do not keep your feet on the rear fender; avoid contacting obstacles with the tire/wheel. Do not ride on public roads, motorways or high ways; do not rotate the handle violently while driving at high speed. Do not carry heavy objects on the handle bar; do not ride the kick scooter with one foot.
-
Page 13: Design Requirement
13 / 14 Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacles, and do not carry any passengers, and do not carry a child, and do not ride when pregnant. -
Page 14: Safety On Battery
14 / 14 4.3 Safety on battery 1） No disassembling, squeezing, puncturing the kick scooter; no touching the contact pots; no disassembling or puncturing the battery case; do not put the kick scooter in the water/fire (including the cooking range, heating, and other heat resource.) or expose it in the temperature which is higher than 122℉...
