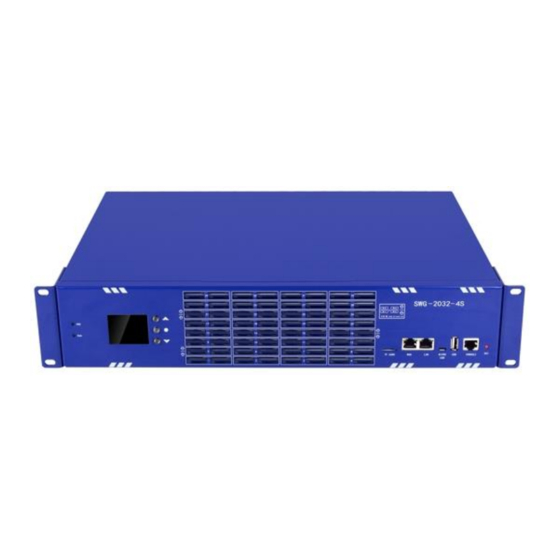

OpenVox SWG-20XX-4S User Manual
  1. Manuals
  2. Brands
  3. OpenVox Manuals
  4. Gateway
  5. SWG-20XX-4S
  6. User manual

OpenVox SWG-20XX-4S User Manual

Wireless gateways
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

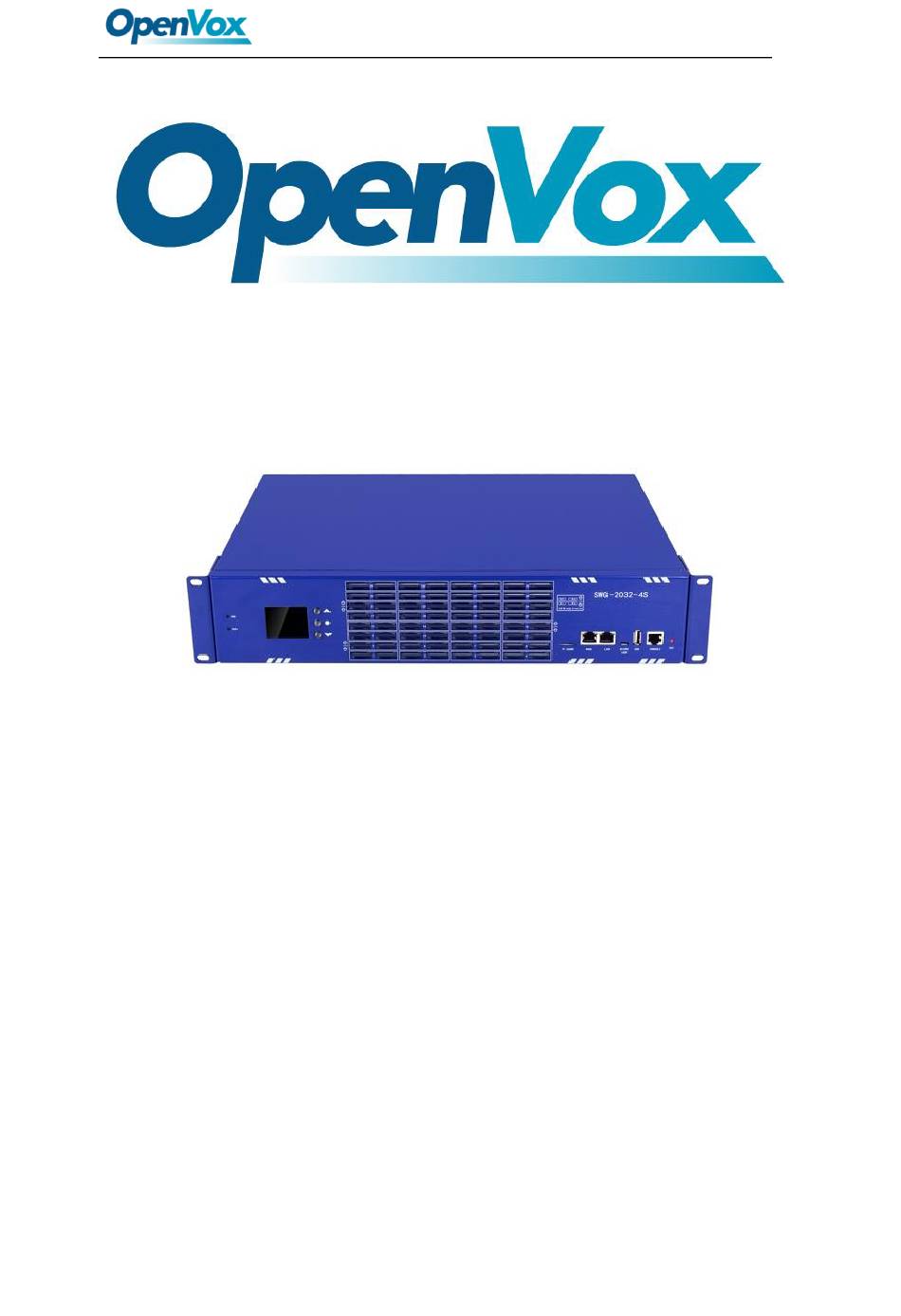

SWG-20XX-4S Wireless Gateways User Manual
OpenVox Communication Co.,Ltd.
SWG20XX-4S Wireless Gateways
User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWG-20XX-4S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenVox SWG-20XX-4S

Summary of Contents for OpenVox SWG-20XX-4S

  • Page 1 SWG-20XX-4S Wireless Gateways User Manual OpenVox Communication Co.,Ltd. SWG20XX-4S Wireless Gateways User Manual Version 1.0...
  • Page 2 SWG-20XX-4S Wireless Gateways User Manual OpenVox Communication Co.,Ltd. Address: Room 624, 6/F, Tsinghua Information Port, Book Building, Qingxiang Road, Longhua Street, Longhua District, Shenzhen, Guangdong, China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 3 SWG-20XX-4S Wireless Gateways User Manual Copyright © Copyright 2020 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc.
  • Page 4 SWG-20XX-4S Wireless Gateways User Manual Revision History Version Date Detail 2019/12/24 Initial...

  • Page 5: Table Of Contents

    SWG-20XX-4S Wireless Gateways User Manual Contents 1. Overview ........................4 1.1 What is SWG20XX-4S Series Wireless Gateways？ ......... 4 1.2 Product Introduction ..................4 1.3 Application ....................... 6 1.3.1 LCD, Buttons and direction of sim card ..........6 1.3.2 Multifunction button ................8 1.3.3 Console ....................
  • Page 6 SWG-20XX-4S Wireless Gateways User Manual 4.1 VOIP Endpoints ....................41 4.1.1 Add New SIP Endpoint ................ 41 4.1.2 Add New IAX2 Endpoint ..............50 4.2 Batch SIP Endpoints ..................55 4.3 Advanced SIP Settings ..................56 4.4 Advanced IAX2 Settings ................. 64 4.5 SIP Account Security ..................
  • Page 7 SWG-20XX-4S Wireless Gateways User Manual 8. Advances ........................96 8.1 Asterisk API ....................96 8.2 Asterisk CLI ..................... 98 8.3 Asterisk File Editor ..................99 8.4 Internet ......................99 8.5 Cloud Management ..................100 8.6 Balance ......................101 8.7 Phone Number ..................... 102...

  • Page 8: Overview

    1. Overview 1.1 What is SWG20XX-4S Series Wireless Gateways？ OpenVox SWG20XX-4S series wireless gateways include SWG-2016-4S G/L and SWG-2032-4S G/L. They can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.723, G.726, G.729, and also flexible SMS service with multiple SMS API.
  • Page 9 SWG-20XX-4S Wireless Gateways User Manual WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz Europe/Middle East/Africa/ Korea/Thailand LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 GSM: 850/900/1800/1900MHz China/India LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B38/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM:...

  • Page 10: Application

    SWG-20XX-4S Wireless Gateways User Manual LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 GSM: 850/900/1800/1900MHz 1.3 Application 1.3.1 LCD, Buttons and direction of sim card The image on the right side of card slots indicates the card insertion direction. Among the four card slots of each port, the sim card ships inserted in slot 1 and 2 face upward, and the chips inserted in 3 and 4 slots face down.
  • Page 11 SWG-20XX-4S Wireless Gateways User Manual One grid Signal Two grid Signal Three grid Signal Four grid Signal Five grid Signal Worst Signal Quality During a Call Medium Signal Quality During a Call Best Signal Quality During a Call Green and...

  • Page 12: Multifunction Button

    SWG-20XX-4S Wireless Gateways User Manual Booting" page to restart the system. 1.3.2 Multifunction button 1. 【▲】 ：Press this key to flip up 2. 【OK】 ： ➢ Press this key in the signal interface - Enter the menu; ➢ Press this key in the menu interface – Confirm；...

  • Page 13: Main Features

    SWG-20XX-4S Wireless Gateways User Manual 2. Connect the USB port of the serial cable to the PC; connect the RJ45 port to the console port of the device. 3. Configure the login software. After the above configuration, click "Open" to enter the device's background page.
  • Page 14 SWG-20XX-4S Wireless Gateways User Manual  SIP/IAX2 Registration with Domain  SIP V2.0 RFC3261 Compliance  DTMF Mode: RFC2833/Inband/SIP Info  Multiple SIP/IAX2 Registrations modes  Abundant Codecs: G.711A, G.711U, G.729, G.722, G.723, G.726, GSM Network  IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP  PPTP VPN ...

  • Page 15: Physical Information

    SWG-20XX-4S Wireless Gateways User Manual  Single Call Duration Limitation  Real Open API Protocol (based on Asterisk)  Support DISA  SMSC/SMS/USSD  PIN Identification  Optional Voice Codec  Ports Group Management  SMS Remotely Controlling Gateway ...

  • Page 16: Software

    SWG-20XX-4S Wireless Gateways User Manual  Operation humidity:10% ~ 90% non-condensing  Storage Temperature: -20~70°C 1.6 Software LAN：  Default IP: 172.16.98.1  Username: admin  Password: admin For the first time, you can access SWG-2008 by using default IP 172.16.98.1; if you use the default login name and password, you will be prompted to change the password each time you log in.

  • Page 17: System

    SWG-20XX-4S Wireless Gateways User Manual 2. System 2.1 Status On the “Status” page, you will find the information of all Modules, SIP, IAX2, Routing and the Network. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Option Definition Number of each ports. GSM port starts with "gsm-"，Such as：...
  • Page 18 SWG-20XX-4S Wireless Gateways User Manual Bit Error Rate. Carrier Display the network carrier of current SIM card. Registration Indicates the registration status of current module. Status Post Dial Delay (PDD) is the time from the point at which the final dialed digit is sent until they hear a ringtone or other in-band message.

  • Page 19: Time

    SWG-20XX-4S Wireless Gateways User Manual 2.2 Time Table 2-2-1 Definition of Time Settings Options Definition System Time Your gateway system time. The world time zone: Please select the one which is the Time Zone same or the closest as your city.

  • Page 20: Login Settings

    SWG-20XX-4S Wireless Gateways User Manual For example, you can configure like this: Figure 2-2-1 Time Setting You can synchronize the gateway time in different ways: Sync from NTP or Sync from Client by pressing different buttons. 2.3 Login Settings The new gateway has no administration privileges, all you can do is reset a username and password to manage your gateway.

  • Page 21: General

    SWG-20XX-4S Wireless Gateways User Manual characters "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Confirm Please input the same password as 'Password' above. Password http and https: You can access gateway via link: Login http://gatewayIP or https://gatewayIP Mode https: You can only access gateway via link: https://gatewayIP Port Specify the web server port number.

  • Page 22: Tools And Information

    SWG-20XX-4S Wireless Gateways User Manual Figure 2-4-1 Language Settings If you switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month or By Running Time.
  • Page 23 SWG-20XX-4S Wireless Gateways User Manual Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update. Figure 2-5-2 Update Firmware Upload and Backup Configuration If you want to update your system and remain your previous configuration, you can backup configuration first.
  • Page 24 SWG-20XX-4S Wireless Gateways User Manual gateway will be reset to the factory status. Figure 2-5-5 Restore Configuration System Information On the “Information” page, there shows some basic information about the gateway. You can see software and hardware version, storage usage, memory usage and some other useful information.

  • Page 25: Setting Wizard

    SWG-20XX-4S Wireless Gateways User Manual 2.6 Setting Wizard According to the boot, you can change the password, set the time, network, and create SIP terminals and routes quickly. Figure 2-6-1 Setting Wizard...

  • Page 26: Module

    SWG-20XX-4S Wireless Gateways User Manual 3. Module You can see the information of SIM card on this page. 3.1 Module Settings Figure 3-1-1 Module Settings On this page, you can see the information of the module status, click the button to configure the port.
  • Page 27 SWG-20XX-4S Wireless Gateways User Manual You can choose different bands in the options. Figure 3-1-3 Band binding If you have set your Pin Code, you can check on like this: Figure 3-1-4 PIN Code Application Then enter the password and the system will recognize the number of the SIM card.
  • Page 28 SWG-20XX-4S Wireless Gateways User Manual Figure 3-1-5 CLIR Application OpenVox GSM/3G Gateway supports optional GSM voice codec. For more details, you can see the picture below： Figure 3-1-6 GSM Voice Codec IMEI Modification We also provide IMEI automatically modified performance.
  • Page 29 SWG-20XX-4S Wireless Gateways User Manual You can choose to modify one , more ports or all ports, and you can set the automatic modification interval by filling in the required time. Figure 3-1-9 Time Interval If you select "Modify IMEI now", the changes will take effect immediately. If you select "Force", the system will hang up the current call and modify the IMEI.
  • Page 30 SWG-20XX-4S Wireless Gateways User Manual After the configuration is completed, click "Back Home" to return to the gateway interface. Table 3-1-1 Definition of Module Settings Options Definition The alias of the each port. Input name without space here. Name Allowed characters: "-_+.<>&0-9a-zA-Z".Length:...
  • Page 31 SWG-20XX-4S Wireless Gateways User Manual Caller ID restriction, this function is used to hide the caller ID of the SIM card number. The gateway will add ‘#31#’ in CLIR front of the mobile number. This function must be operated by a professional operator.

  • Page 32: Call Forwarding

    SWG-20XX-4S Wireless Gateways User Manual 3.2 Call Forwarding Sometimes it's not convenient for you to answer the call. If you don't want to lose some important calls, you can choose call forwarding. There are different kinds of call types for you to choose, Such as call forwarding unconditional, call forwarding no reply, call forwarding busy and call forward on not reachable.

  • Page 33: Call Waiting

    SWG-20XX-4S Wireless Gateways User Manual 3.3 Call Waiting You can switch the Call Waiting Function of the SIM card on/off in the port on this page. Figure 3-3-1 Call Waiting...

  • Page 34: Dtmf

    SWG-20XX-4S Wireless Gateways User Manual Table 3-3-1 Definition of Call Waiting Options Definition Choose the port you want to set, switch to "On" and Switch on call waiting click the "Settings" button. Choose the port you want to set, switch to "Off" and Switch off call waiting click the "Settings"...
  • Page 35 SWG-20XX-4S Wireless Gateways User Manual Notice: You don’t have to modify these settings if you don’t have special need. You can just choose “Default”. Table 3-4-1 Definition of DTMF Detection Settings Options Definition It is the power difference between the row and the DTMF Normal Twist column energies.

  • Page 36: Toolkit

    SWG-20XX-4S Wireless Gateways User Manual 3.5 Toolkit You can get USSD information, send AT command or check the number of this module. The AT command is very helpful for you when debugging a module. Figure 3-5-1 Function Options Table 3-5-1 Description of Definition of Functions...

  • Page 37: Module Update

    SWG-20XX-4S Wireless Gateways User Manual telephone charge during this procedure. If you want to send an AT command, enter the command, select a port first and then select “Copy to selected", and finally click “Execute". Figure 3-5-2 AT Command Example 3.6 Module Update...
  • Page 38 SWG-20XX-4S Wireless Gateways User Manual Figure 3-7-1 Call and SMS Limit Call Limit You can limit the number of daily calls, number of days connected, and number of hours of calls for the selected channel. Figure 3-7-2 Call Limit Call Limit Time...
  • Page 39 SWG-20XX-4S Wireless Gateways User Manual Now we offer you two types of call duration limit, you can choose “Single Call Duration Limit” or “Call Duration Limitation” to control your calling time. This will limit the time of each call. First you need to switch “Enable” on, then you can set “Step”...
  • Page 40 SWG-20XX-4S Wireless Gateways User Manual You can also turn on enable auto reset, which can be selected from one day, one week or one month. After the automatic reset time is reached, the remaining call duration is reset to the set total call duration.
  • Page 41 SWG-20XX-4S Wireless Gateways User Manual Alarm Phone User will received alarm message from the gateway when Number receiving alarm phone number. Alarm The alarm port information description sends the alarm Description information to the user's phone. Remaining call Multiplying this value by the step size is the remaining call duration duration.
  • Page 42 SWG-20XX-4S Wireless Gateways User Manual Table 3-7-3 Description of Lock Card Options Definition Call Failed Mark The number of consecutive calls failed to reach the number Count of settings, making the port. Lock the port after the number of successive call failures...

  • Page 43: The Strategy Of Switching Card

    SWG-20XX-4S Wireless Gateways User Manual Table 3-7-4 Definition of SMS Limit Options Definition When closed, no matter whether the message is sent SMS Limit Success successfully or not, the number of messages is counted； Flag When opened, the number of messages is counted when the message is sent successfully.
  • Page 44 SWG-20XX-4S Wireless Gateways User Manual Open the switch of switching card strategy and set the switching card policy. According to the set sim card registration time, use time, call out time, call out times and SMS send times, the card can be switched in ascending or descending order.

  • Page 45: Voip Endpoints

    SWG-20XX-4S Wireless Gateways User Manual 4. VOIP 4.1 VOIP Endpoints This page shows everything about your SIP&IAX2, you can see the status of each SIP&IAX2. Figure 4-1 SIP&IAX2 Endpoints 4.1.1 Add New SIP Endpoint Main SIP Endpoint Settings: You can click...
  • Page 46 SWG-20XX-4S Wireless Gateways User Manual For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-2 Server Registration Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except the name and the password.
  • Page 47 SWG-20XX-4S Wireless Gateways User Manual Username Register name in your SIP server. Password Authenticating with the gateway and characters are allowed. Whether the terminal registers with the gateway or the gateway registers with the terminal. None --- Not registering; Registration Server --- When register as this type, it means the gateway acts as a SIP server, and SIP endpoints register to the gateway;...
  • Page 48 SWG-20XX-4S Wireless Gateways User Manual use report and perform commedia RTP processing. Advanced: Registration Options Figure 4-1-4 Advanced Registration Options Table 4-1-2 Definition of Registration Options Options Definition Authentication Just a username used when registering. User When Gateway registers as a SIP user agent to a SIP proxy...
  • Page 49 SWG-20XX-4S Wireless Gateways User Manual Contact: sip:402@172.16.6.123:5060;transport=UDP. From User A username to identify the gateway to this endpoint. From Domain A domain to identify the gateway to this endpoint. Port The port number used by the gateway to link the peer.
  • Page 50 SWG-20XX-4S Wireless Gateways User Manual Table 4-1-3 Description of DTMF Detection Settings Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. Other options: 'info', SIP INFO message DTMF Mode (application/dtmf-relay); 'Inband',Inband audio(require 64kbit codec -alaw,ulaw). Trust Whether or not the Remote-Party-ID header should be Remote-Party-ID trusted.
  • Page 51 SWG-20XX-4S Wireless Gateways User Manual Usually used when this sip works as a trunk. Limit the Call Limit maximum number of channels supported by sip trunks. Advanced: Signaling Settings Figure 4-1-6 Signaling Settings Table 4-1-4 Definition of Signaling Options Options Definition Whether the tone is ringing.
  • Page 52 SWG-20XX-4S Wireless Gateways User Manual Switch this option off to force the gateway to ignore the SDP session version number and treat all SDP data as new data. This is required for devices that send non-standard SDP packets (observed with Microsoft OCS).
  • Page 53 SWG-20XX-4S Wireless Gateways User Manual Table 4-1-5 Definition of Timer Options Options Definition This timer is used primarily in INVITE transactions. The default for Timer T1 is 500 ms or the measured run-trip time Default T1 Timer between the gateway and the device if you have qualify=yes for the device.

  • Page 54: Add New Iax2 Endpoint

    SWG-20XX-4S Wireless Gateways User Manual 4.1.2 Add New IAX2 Endpoint You can click button to add a new IAX2 endpoint and if you want to modify existed endpoints, you can click button. There are three registration types: None, Server or Client.
  • Page 55 SWG-20XX-4S Wireless Gateways User Manual Also you can choose registration by “Client”, it will work as a Client. Figure 4-1-10 Client Registration Table 4-1-6 Definition of IAX2 Options Options Definition A name which is able to read by human. And it's only used for Name user's reference.
  • Page 56 SWG-20XX-4S Wireless Gateways User Manual IP Address endpoint has a dynamic IP address. This will require registration. Notice: If you entered the domain name and changed the DNS, you must restart asterisk. There are three authentication methods that are supported: md5, plaintext and rsa.
  • Page 57 SWG-20XX-4S Wireless Gateways User Manual reduce the lag end of the misdetection. The default is How frequently to ping the peer when everything seems Qualify Freq Ok to be OK, in milliseconds How frequently to ping the peer when it is either, Qualify Freq Not Ok LAGGED or UNAVAILABLE, in milliseconds.
  • Page 58 SWG-20XX-4S Wireless Gateways User Manual IAX2 Trunk Settings Figure 4-1-13 IAX2 Trunk Settings Table 4-1-9 Definition of Trunk Options Options Definition The default is 128000 bytes, which supports up to 800 Trunk Max Size calls of ulaw at 20ms a frame.

  • Page 59: Batch Sip Endpoints

    SWG-20XX-4S Wireless Gateways User Manual 4.2 Batch SIP Endpoints On this page, you can create multiple SIP Endpoints at the same time. Figure 4-2-1 Multiple SIP Endpoints Settings You should select the number of SIPS to be created after you filling in the username, password, domain name or IP address, port and registration mode in the first line.

  • Page 60: Advanced Sip Settings

    SWG-20XX-4S Wireless Gateways User Manual None --- Not registering; Server --- When register as this type, it means the gateway acts Registration as a SIP server, and SIP endpoints register to the gateway; Client --- When register as this type, it means the gateway acts as a client, and the endpoint should be register to a SIP server;...
  • Page 61 SWG-20XX-4S Wireless Gateways User Manual UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.
  • Page 62 SWG-20XX-4S Wireless Gateways User Manual Table 4-3-2 Definition of NAT Settings Options Options Definition Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NAT network. This gateway will replace the internal IP Local Network...
  • Page 63 SWG-20XX-4S Wireless Gateways User Manual Dynamic hosts are not allowed to register with the static Dynamic Exclude host's IP address, which will avoid the same IP registration Static error. Externally Mapped The externally mapped TCP port, when the gateway is TCP Port behind a static NAT or PAT.
  • Page 64 SWG-20XX-4S Wireless Gateways User Manual End of RTP port Range End of port numbers to be used for RTP. Parsing and compatibility Figure 4-3-4 Parsing and Compatibility Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Strict RFC Interpretation Check header tags，character conversion in URIs, and...
  • Page 65 SWG-20XX-4S Wireless Gateways User Manual multiline headers for strict SIP compatibility (default is yes). Send Compact Headers Send compact SIP headers. Allows you to change the username filed in the SDP SDP Owner owner string. This filed MUST NOT contain spaces...
  • Page 66 SWG-20XX-4S Wireless Gateways User Manual Peter and Number is 402. The From mode is: "Peter"<sip:402@172.16.6.239;t ransport=UDP>;tag=bd481672. Default: EXTEN For example: When selecting SIP To, Name is Jas Callee ID on and Number is 401. The mode is: "Jason"<sip:401@172.16.6.239;transp ort=UDP>. Maximum Registration...
  • Page 67 SWG-20XX-4S Wireless Gateways User Manual Table 4-3-5 Instruction of Security Options Definition If available, match user entry using the 'username' field Match Auth Username from the authentication line instead of the 'from' field. Realm for digest authentication. All realms must be...

  • Page 68: Advanced Iax2 Settings

    SWG-20XX-4S Wireless Gateways User Manual Media Figure 4-3-6 Media Settings Table 4-3-6 Instruction of Media Options Definition TOS for SIP Packets Sets type of service for SIP packets. TOS for RTP Packets Sets type of service for RTP packets. Codec Settings Select codecs from the list below.
  • Page 69 SWG-20XX-4S Wireless Gateways User Manual Table 4-4-1 Instruction of General Options Definition Bind Port Bind port and bindaddr may be specified. Set Iaxcompat to yes if you need to use a tiered switch, or if Enable some of the latency may occur when performing a lookup in a...
  • Page 70 SWG-20XX-4S Wireless Gateways User Manual If we don't get ACK to our NEW within 2000ms, and Auto Kill is set to yes ,then we cancel the whole thing (that's enough time for one retransmission only). This is used to keep things from...
  • Page 71 SWG-20XX-4S Wireless Gateways User Manual rules will be played in the channel when the phone hangs. If it is "transfer", it will be replaced by a message signal. Instruction of Codec Settings Figure 4-4-3 Codec Settings Table 4-4-3 Instruction of Codec Settings...
  • Page 72 SWG-20XX-4S Wireless Gateways User Manual Jitter Buffer Settings Figure 4-4-4 Jitter Buffer Table 4-4-4 Instruction of Jitter Buffer Options Definition Whether to set a global buffer should be enabled by an unstable network environment, generally you do not need. Jitter Buffer Because the terminal device buffers the jitter processing.
  • Page 73 SWG-20XX-4S Wireless Gateways User Manual parameter to -1. The maximum number of interpolation frames the jitter Max Jitter Interps buffer should return in a row. Number of milliseconds by which the new jitter buffer will pad its size. The default is 40, so without modification, the...
  • Page 74 SWG-20XX-4S Wireless Gateways User Manual The 'Max Call Numbers' option limits the amount of call numbers allowed for each individual remote IP address. Once an IP address reaches its call number limit, no more Max Call Number new connections are allowed until the previous ones close.

  • Page 75: Sip Account Security

    SWG-20XX-4S Wireless Gateways User Manual 4.5 SIP Account Security The SIP account security module greatly enhances the security of the system. The wireless gateway supports TLS encrypted calls (sip), which requires sip phone support. Figure 4-5-1 SIP Account Security You need to understand its rules when using TLS. The following table shows the setting parameters of TLS.
  • Page 76 SWG-20XX-4S Wireless Gateways User Manual Values include tlsv1, sslv3, sslv2, which specify the TLS Client Method protocol for the outbound client connection. The default is sslv2. Enter the key name, IP address, organization and password in the above settings to create a ca certificate.

  • Page 77: Routing

    SWG-20XX-4S Wireless Gateways User Manual 5. Routing 5.1 Call Routing Rules Figure 5-1-1 Call Routing Rules You are allowed to set up new call routing rules by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 78 SWG-20XX-4S Wireless Gateways User Manual The figure above shows that all the phones in the group ALL are transferred to the IAX2-2133. When the "incoming source" is GSM/LTE port, "prepend", "prefix" and "match pattern" in the "Advanced Routing Rules" are invalid, and only the "CallerID"...
  • Page 79 SWG-20XX-4S Wireless Gateways User Manual In the DISA Settings, you can set a Password, Authentication or Secondary Dialing. Figure 5-1-4 Advance Routing Rule Settings In the Advance Routing Rule Settings, you can set the function of the dial Patterns、 Time Patterns、Calling, Forward, Delay and Failover...
  • Page 80 SWG-20XX-4S Wireless Gateways User Manual If the dialed number matches the patterns specified by the subsequent columns, then this will be prepended before sending to the trunks. Prefix: Prefix to remove on a successful match. The dialed number is compared to this and the subsequent columns for a match.

  • Page 81: Groups

    SWG-20XX-4S Wireless Gateways User Manual Random Delay Randomly obtain any value within the threshold interval. Failover Call The gateway will attempt to send the call out each of these Through Number in the order you specify. 5.2 Groups Sometimes you want to make a call through one port, but you don’t know if it is available, so you have to check which port is free.
  • Page 82 SWG-20XX-4S Wireless Gateways User Manual Figure 5-3-1 Batch Creating rules The SIM number will be sent to the target PBX or SIP server as DID number, and the calling number will be set to the caller ID in the outgoing route.

  • Page 83: Mnp Settings

    SWG-20XX-4S Wireless Gateways User Manual 5.4 MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Figure 5-4-1 MNP Settings The URL is displayed as a password string. So please enter the URL in the format below and check if it is correct.

  • Page 84: Sms

    SWG-20XX-4S Wireless Gateways User Manual 6. SMS 6.1 General You can choose enable SMS Received, SMS Local Stored and SMS Status Report or not. Figure 6-1-1 SMS Settings Sender Options You can change sender options here, include resend and the time of resend.
  • Page 85 SWG-20XX-4S Wireless Gateways User Manual e SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit to openvpnvoip@yahoo.com.cn, open vpnvoip@hotmail.com and support@openvox.cn. Figure 6-1-3 SMS to Email Table 6-1-2 Types of E-mail Box SMTP Security...
  • Page 86 SMTP Password The password to login your existing email. When you choose Yahoo and 163 free e-mails, this option is TLS Enable not available. SMTP Server To set outgoing mail server. For example：mail.openvox.cn. Destination The first email address to receive the inbox message. Email Address1 Destination The second email address to receive the inbox message.
  • Page 87 SWG-20XX-4S Wireless Gateways User Manual Figure 6-1-4 SMS Control For example, SMS control password is 123456 which has nothing to do with the login password, you can send “get info 123456” to the module’s phone number to get your gateway’s IP information.
  • Page 88 SWG-20XX-4S Wireless Gateways User Manual New record will be retained. Switch off: SMS record will remain, and the file size will increase gradually. Default on, max size = 20 MB. HTTP to SMS Figure 6-1-5 HTTP to SMS Settings Table 6-1-5 Definition of HTTP to SMS...
  • Page 89 SWG-20XX-4S Wireless Gateways User Manual Timeout: how long to wait. SMS to HTTP Figure 6-1-6 SMS to HTTP Settings Table 6-1-6 Definition of SMS to HTTP Options Definition Example host HTTP server IP address or domain. 172.16.6.171 port HTTP server port.

  • Page 90: Sms Sender

    SWG-20XX-4S Wireless Gateways User Manual 6.2 SMS Sender Click the box to select the corresponding port number, fill in the target number and SMS content .Then you can send it. Different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma. After sending a text message, if the SMS status report is enabled, a detailed report of the SMS transmission will be displayed below.

  • Page 91: Sms Outbox

    SWG-20XX-4S Wireless Gateways User Manual Figure 6-3-1 SMS Inbox 6.4 SMS Outbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also, you are allowed to check messages by port, phone number, time order and message keywords.

  • Page 92: Sms Forwarding

    SWG-20XX-4S Wireless Gateways User Manual 6.5 SMS Forwarding Using this function, you can forward incoming SMS to your mobile. You can click button to add new routing. For example： Figure 6-5-1 SMS Forwarding SMS received by lte-1.1 and lte-1.2, will be transferred to phone number 13923704563 through lte-1.3 or lte-1.4.

  • Page 93: Network

    SWG-20XX-4S Wireless Gateways User Manual 7. Network 7.1 LAN Settings There are three types of LAN port IP: Factory, Static, and DHCP. The Factory is the default type with an IP of 172.16.98.1. This page is not editable when the LAN IPv4 type is selected as "Factory".

  • Page 94: Wan Settings

    SWG-20XX-4S Wireless Gateways User Manual The method to get IP: Factory: Getting IP address by Slot Number (System Type information to check slot number). Static: Manually set up your gateway IP. DHCP: Automatically get IP from your local LAN. MAC Address Physical address of your network interface.

  • Page 95: Vpn Settings

    SWG-20XX-4S Wireless Gateways User Manual 7.3 VPN Settings The wireless gateway provides PPTP and N2N VPN connections, which allow users to establish virtual private networks, encrypt communications, and achieve remote access. Figure 7-3-1 PPTP VPN Settings Figure 7-3-2 N2N VPN Settings 7.4 DDNS Settings...

  • Page 96: Toolkit

    SWG-20XX-4S Wireless Gateways User Manual Table 7-4-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS (dynamic domain name server). Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong.

  • Page 97: Firewall Settings

    SWG-20XX-4S Wireless Gateways User Manual 7.6 Firewall Settings Figure 7-6-1 Firewall Settings Table 7-6-1 Definition of Firewall Settings Options Definition If you want to use White/Black List, and security rules, you Firewall Enable must enable this option. Whether to enable the Ping function. If the status is OFF: Ping Enable disable ping, the gateway does not allow ping.

  • Page 98: Security Rules

    SWG-20XX-4S Wireless Gateways User Manual 7.7 Security Rules Figure 7-7-1 Security Rules Settings Click "submit" button to submit and apply configuration. If "List IP Settings" has no problem, you will see popup window like below. Please read the warning and tips carefully. And Click "Apply" button in 1 minute. If time runs out, this window will close automatically.

  • Page 99: Sip Capture

    SWG-20XX-4S Wireless Gateways User Manual If you see the windows like below. It means your configuration has been applied successfully. Figure 7-7-3 Figure 7-11 Security Rules Apply 7.8 SIP Capture You can capture the SIP packets on this page to facilitate location problems.

  • Page 100: Advances

    SWG-20XX-4S Wireless Gateways User Manual 8. Advances 8.1 Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 Asterisk API Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number. Manager Na Name of the manager without space.
  • Page 101 SWG-20XX-4S Wireless Gateways User Manual If you want to deny some hosts or networks, you can use Deny char & as separator. For example: 192.168.1.0/255.255.25 5.0&10.0.0.0/255.0.0.0. If you want to permit some hosts or networks, you can u Permit se char & as separator. For example: 192.168.1.0/255.255.2 55.0&10.0.0.0/255.0.0.0.

  • Page 102: Asterisk Cli

    SWG-20XX-4S Wireless Gateways User Manual Originate Permission to initiate new calls. Write-only. Select all or deselect all. Please refer to the following figure to access the gateway API by telnet. 172.16.179.1 is the gateway’s IP, and 5038 is its API port.

  • Page 103: Asterisk File Editor

    SWG-20XX-4S Wireless Gateways User Manual Figure 8-2-1 Asterisk CLI Command: Type your Asterisk CLI commands here to check or debug your gateway. Notice: If you type “help” or “?” and execute it, the page will show you the shell command.

  • Page 104: Cloud Management

    Figure 8-4-1 Asterisk Internet 8.5 Cloud Management SWG and VoxStack series gateways both support OpenVox Cloud Management. Figure 8-5-1 OpenVox Cloud Management If your device is connected to the cloud management, the SSH and the web pages of the gateway can be accessed through the cloud management, and it can be monitored whether the device is connected to the cloud management platform.

  • Page 105: Balance

    SWG-20XX-4S Wireless Gateways User Manual Currently supports two servers, one is China and the other is Choose Service the United States. Registered account or email on the cloud management Account platform. The password of the account registered on the cloud Password management platform.

  • Page 106: Phone Number

    SWG-20XX-4S Wireless Gateways User Manual Figure 8-6-2 Balance Settings 8.7 Phone Number The wireless gateway also provides a number inquiry function, which can automatically send a short message to the operator to query the number of the SIM card that you use currently.

  • Page 107: Logs

    SWG-20XX-4S Wireless Gateways User Manual 9. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs. Otherwise, system logs are unavailable. Other log pages are the same.
  • Page 108 SWG-20XX-4S Wireless Gateways User Manual Switch off: logs will remain, and the file size will increase gradually. The default is on, the default maxsize is 100KB. IAX Logs Whether to open the IAX logs or not Switch on: when the size of log file reaches the max size, the Auto clean system will cut a half of the file and the new logs will be retained;...
  • Page 109 SWG-20XX-4S Wireless Gateways User Manual Figure 9-3 System Logs You can easily browse your CDRs on the Web GUI, you also can delete, clean or export your CDR information. Figure 9-4 CDR In the new version we have enriched the LOGS display which you can see each port of the call outbound clearly.
