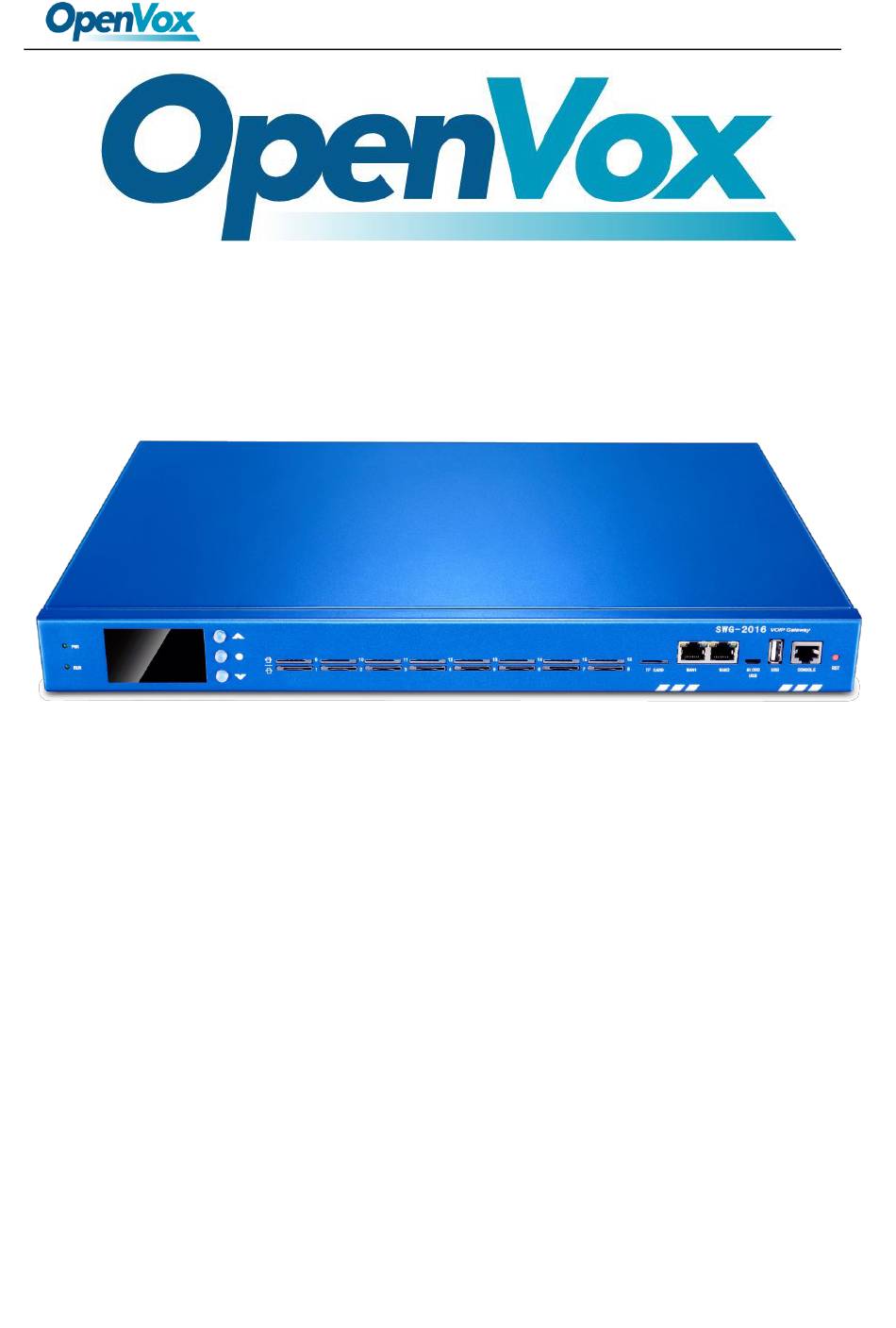

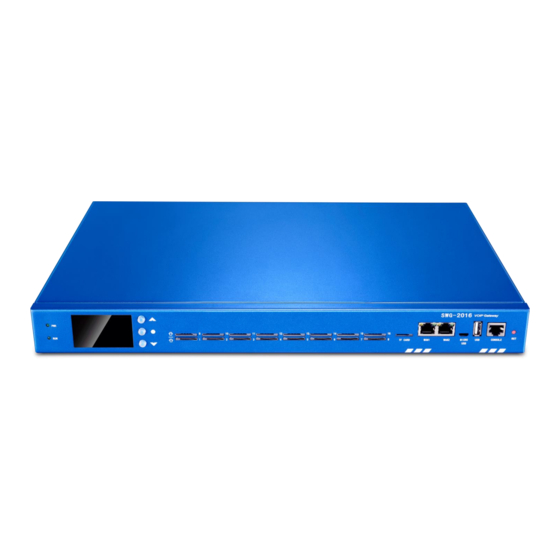

SWG-2016/32 User Manual
OpenVox Communication Co Ltd
SWG-2016/32 Gateway User Manual
Version 1.0
1
OpenVox Communication Co. ,LTD.
Website: www.openvox.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWG-2016C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenVox SWG-2016C

Summary of Contents for OpenVox SWG-2016C

  • Page 1 SWG-2016/32 User Manual OpenVox Communication Co Ltd SWG-2016/32 Gateway User Manual Version 1.0 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 2 Address:10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
  • Page 4 SWG-2016/32 User Manual Revise History Version Release Date Description 10/5/2018 Full text OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 5: Table Of Contents

    2.5.3 Upload and Backup Configuration ................22 2.5.4 Restore Configuration ....................22 2.6 Information .......................... 23 3. MODULE ............................24 3.1 MODULE Settings ......................... 24 3.1.1 Call Duration Limit Settings ..................26 3.2 DTMF ............................ 29 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 6 5.3 MNP Settings ........................66 6. SMS ..............................67 6.1 General ..........................67 6.1.1 Sender Options ......................67 6.1.2 SMS to Email ......................67 6.1.3 SMS Control ....................... 69 6.1.4 HTTP to SMS ......................71 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 7 8.3 Asterisk File Editor ........................ 87 8.3 Cloud Management ......................87 9. Logs ..............................89 Appendix Feature List ......................... 91 General Info ..........................91 VOIP Characters .......................... 92 Network ............................92 System Features ......................... 93 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 8 SWG-2016/32 User Manual Management ..........................94 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 9: Overview

    1. Overview 1.1 What is SWG-2016/32？ OpenVox SWG-2016/32 series wireless gateways include SWG-2016 G/C/L and SWG-2032 G/C/L, which can provides 16/32 GSM/CDMA/WCDMA/LTE channels. They can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.723, G.726, G.729, and also flexible SMS service with multiple SMS API.

  • Page 10: Application

    TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz SWG-2032L Europe/Middle East/Africa/ Korea/Thailand LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 1.3 Application 1.3.1 LCD And Buttons LED Indicator/Icon/Buttons Color/ Icon Staus Display Icon Module Initiating,Disable OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 11: Multifunction Button

    Press and hold the RST button for 3-5 seconds. The RST Button display jumps to the "System Booting" page to restart the system. 1.3.2 Multifunction button 1. [▲] : Press this key to flip up OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 12 3. [▼] : Press this key to flip down 4. Press any key in the signal interface to enter the menu interface. 5. If no button is operated within 20S, return to the main interface. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 13 SWG-2016/32 User Manual The main factions are as follows: OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 14: Console

    Step 1: Prepare the following serial cable (baud rate: 115200bps) Step 2: Connect the USB port of the serial cable to the PC; connect the RJ45 port to the console port of the device. Step 3: Configure the login software OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 15: Main Features

    LCD resolution ratio: 240*400  LAN port:1  WAN port:1  USB Interface:1  TF Infterface:1  SIM Cards: hot-swap  Operation Temperature: 0~40°C  Storage Temperature: -20~70°C  Operation humidity:10% ~ 90% non-condensing OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 16: Software

    For first time, you can access SWG-1016C using default IP 172.16.98.1. Then configure the module as you want. 2. System 2.1 Status On the “Status” page, you will find all Modules, SIP, IAX2, Routing and Network information. Figure 2-1 Systm Status OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 17 Since busy signals and other rejections by the called number count as call failures, the ASR value can vary depending on user OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 18: Time

    NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Save Data Save the Modify of the time settings Sync from NTP Sync time from NTP server. Sync from Client Sync time from local machine. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 19: Login Settings

    Please input the same password as 'Password' above. Password Login Mode http and https: You can access gateway via link: http://gatewayIP https://gatewayIP https: You can only access gateway via link: https://gatewayIP Port Specify the web server port number. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 20: General

    “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need. Then upload your modified packages, “Choose File” and “Add”. For example: Figure 2-4 Language Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 21: Scheduled Reboot

    If you press "OK", your system will reboot and all current calls will be dropped. Asterisk Reboot is the same. 2.5.2 Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 22: Upload And Backup Configuration

    Sometimes there is something wrong with your gateway that you don’t know how to solve it, mostly you will select factory reset. Then you just need to press a button, your gateway will be reset to the factory status. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 23: Information

    Figure 2-9 Restore Configuration 2.6 Information On the “Information” page, there shows some basic information about the gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-10 Information OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 24: Module

    SWG-2016/32 User Manual 3. MODULE 3.1 MODULE Settings Figure 3-1 Module Settings On this page, you can see your SIM Card information and module status,click action button to configure the port. Figure 3-2 Port Configuration OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 25 AT command. CLIR Caller ID restriction, this function is used to hidden caller ID of SIM card number. The gateway will add ‘#31#’ in front of mobile number. This function must support by Operator. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 26: Call Duration Limit Settings

    And if your calling time overtops the value above, the system will hang up this call. Figure 3-5 Single Settings Limitation: This will limit your total calling time of this port. If remain time is 0, Call Duration OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 27 You can enable your Auto Reset, then choose by day, by week, or by month. Figure 3-7 Auto Reset Settings Table 3-2 Description of Call Duration Limit Settings Options Definition OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 28 You can save your configuration to other ports. Figure 3-8 Save to Other Ports If you have set like this, you will see many on the Web GUI, you can set whether to check. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 29: Dtmf

    It is the difference in power between the row and column and Reverse Twist energies. Normal Twist is where the Column energy is greater than the Row energy. Reverse Twist is where the Row energy OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 30: Toolkit

    SIM card. Click "Execute", then the gateway will dial to the number you already input. It only rings for one time and hangs up at once. Not generating telephone charge during this procedure. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 31 If you want to send AT command, first you should input your command, then select certain ports and choose “ ”, finally choose “ ”. Copy to Selected Execute Figure 3-12 AT Command Example OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 32: Voip

    If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 33 SWG-2016/32 User Manual Figure 4-2 None Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-3 Server OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 34 IP address or hostname of the endpoint or 'dynamic' if the Address endpoint has a dynamic IP address. This will require registration. Transport This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 35 Definition A username to use only for registration. Authentication User When Gateway registers as a SIP user agent to a SIP proxy Register (provider), calls from this provider connect to this local Extension extension. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 36 Table 4-3 Definition of Call Options Options Definition Set default DTMF Mode for sending DTMF. Default: DTMF Mode rfc2833. Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 37 Progress Inband Optional values: yes / no / never. Default: yes Whether or not to Add 'user = phone' to UPIS to include a Append user=phone valid phone number in the URI. to URI OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 38 A proxy to which the gateway will send all outbound Outbound Proxy signaling instead of sending signaling directly to endpoints. Advanced——Timer Settings Figure 4-8 Timer Settings Table 4-5 Definition of Timer Options Options Definition OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 39: Add New Iax2 Endpoint

    Server) or This gateway registers with the endpoint(work as a Client). You can configure as follows: If you set up a IAx2 endpoint by registration “None” to a server, then you can’t register other IAX2 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 40 For convenience, we have designed a method that you can register your IAX2 endpoint to your gateway, thus your gateway just work as a server. Figure 4-10 Server Also you can choose registration by “This gateway registers with the endpoint”, it will work as a Client. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 41 IAX2 server; IP address or hostname of the endpoint or 'dynamic' if the Hostname or endpoint has a dynamic IP address. This will require registration. IP Address Auth There are three authentication methods that are OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 42 IAX peer. If a peer is Ok, Qualify Freq consdered to be in a reachable (OK or LAGGED) state, it is Not Ok queried for availability every "qualifyfreqok" milliseconds. If it is OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 43 Force encryption insures no connection is established unless Force Encryption both sides support encryption. By turning this option on, encryption is automatically; turned on as well. The default is no IAX2 Trunk Settings Figure 4-14 IAX2Trunk Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 44 Should we send timestamps for the individual Trunk Time Stamps sub_frames within trunk frames? There is a small bandwith use for these (less than 1kbps/call), but they ensure that frame timestamps get sent end-to-end OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 45: Batch Sip Endpoints

    SIP endpoints as the number of device ports at a time. After the above configuration, click Batch Setup and save it to create SIP endpoints in batches. Table 4-10 Definition of Multiple SIP Extentations Options Definition OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 46: Advanced Sip Settings

    Tick - Automatically increments based on the password entered in the first lineDo not check - All SIP endpoints have the same password as the first one. 4.3 Advanced SIP Settings 4.3.1 Networking Networking General Figure 4-16 Networking General OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 47 SIP peer definition or when dialing outbound calls with suppress SRV lookups for that peer or call. Whether enable the internal SIP calls or not when you select Enable Internal the registration option "Endpoint registers with this gateway". SIP Call OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 48 By default this option is enabled, but only takes effect once res_stun_monitor is configured. If res_stun_monitor is enabled and you wish to not generate all outbound OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 49 NAT device lets you choose the port mapping, but the IP address is dynamic. Beware, you Hostname Refresh Interval might suffer from service disruption when the name server resolution fails. RTP Settings Figure 4-18 RTP Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 50: Paesing And Compatibility

    Start of range of port numbers to be used for RTP End of RTP port Range End of port numbers to be used for RTP RTPTimeout RTP Timeout retransmission time 4.3.2 Paesing and Compatibility Figure 4-19 Paesing and Compatibility OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 51 Minimum length of registrations/subscriptions (default 60). Expiry Default length of incoming/outgoing registration. Default Registration Expiry How often, in seconds, to retry registration calls. Default 20 Registration Timeout seconds. Attempts Enter '0' for unlimited Number of registration Number of Registration OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 52: Security

    Otherwise, the configured 'realm' value will be used. When an incoming INVITE or REGISTER is to be rejected, for any reason, always reject with an identical response Always Auth Reject equivalent to valid username and invalid password/hash OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 53: Media

    (meaning the SIP channel will not send 183 Session Progress for early media). Default is 'yes'. Also make sure that the SIP peer is configured with progressinband=never. In order for 'noanswer' applications OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 54: Codec Settings

    Sets type of service for SIP packets TOS for SIP Packets Sets type of service for RTP packets TOS for RTP Packets 4.3.5 Codec Settings Select codecs from the list below. Figure 4-22 Codec Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 55: Advanced Iax2 Settings

    IAX DPREQ (Dialplan Request) instead of blocking while it waits for a response. Enable Delay Reject Disable UDP checksums (if no checksums is set, then no checksums will be calculated/checked on system supporting the feature) OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 56: Music On Hold

    The ‘Mohsuggest’ option specifies which music on hold class to suggest to the peer channel when this channel place the peer on hold. It may be specified globally or on a per-user or per-peer basis. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 57: Instruction Of Codec Settings

    Fine tune codes here using “allow” and “disallow” clause with Allow specific codes Codec priority controls the codec negotiation of an inbound IAX2 Codec Priority call. This option is inherited to all user entity separately which will override the setting in general. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 58: Jitter Buffer Settings

    Since some clients do not send CNG/DTX frames to indicate silence, the jitter buffer will assume silence has begun after returning this many interpolations. This prevents interpolating throughout a long silence. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 59: Misc Settings

    IP of a dynamic peer after it completes registration. MaxCallNumbers_Nonvalidated The ‘maxcallnumbers-nonvalidated’ is used to set the combined number of call numbers that can be allocated for connections where call token validation has been disabled. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 60: Quality Of Service

    5. Routing Figure 5-1 Routing Rules You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 61 Finally click the button to save what you set. Call Routing Rule: You can click button to set up your routings. Figure 5-2 Example of Set up Routing Rule OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 62 Dial Patterns that will checked for matches outside of the designated time(s). use this Route Rules: X matches any digit from 0-9 Z matches any digit from 1-9 N matches any digit from 2-9 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 63 Custom Context User-defined dialing rules Failover Call Through The gateway will attempt to send the call out each of these Number in the order you specify. You can create various time routes OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 64: Groups

    That would be troublesome. But with our product, you don’t need to worry about it. You can combine many Port or SIP to groups. Then if you want to make a call, it will find available port automatically. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 65: Batch Creating Rules

    Figure 5-6 Batch Creating rules Group You can configure the SIM Number, SIP trunk and calling Number for each port.And then, click “save” to batch creating multiple Routing rules.By an attention, the SIP trunk must be configures OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 66: Mnp Settings

    ${num} Here is an example of the MNP url: https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=8388166902 The 8388166902 is the outgoing phone number, when config the MNP url, should replce it with ${num}. Then turns https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num}。 Figrue 5-7 MNP Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 67: Sms

    6.1.2 SMS to Email This is a tool that makes it available for you to email account to transmit the SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 68 SMTP Security Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ smtp.mail.yahoo.co.i Yahoo! × e-mail smtp.163.com × Table6-3 Definition of SMS to E-mail Options Definition Enable When you choose on, the following options are available, otherwise, unavailable. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 69: Sms Control

    The password to login your existing email. TLS Enable When you choose Yahoo and 163 free e-mails, this option is not available. SMTP Server To set outgoing mail server. e.g. mail.openvox.cn. Destination The first email address to receive the inbox message. Email Address1 Destination The second email address to receive the inbox message.
  • Page 70 The PASSWORD is referring to the PASSWORD you set up from option “PASSWORD” above. Reboot asterisk PASSWORD: To restart your gateway core. Restore configs PASSWORD: To reset the configuration files back to the default factory settings. Get info PASSWORD: To get your gateway IP address OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 71: Http To Sms

    You can choose one or more ports to send SMS to the destination number, different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma. Then you can see much feedback information. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 72: Sms Inbox

    6.4 SMS Outbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 73: Sms Forwarding

    Such as: Figure 6-10 SMS Forwarding Rules SMS received by cdma-1.1 and cdma-1.2, cdma-1.4, will be transfered to phone number 18664565204 through port cdma-1.8 or cdma-1.10. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 74: Network

    172.16.98.1. When you Choose LAN IPv4 type is “Factory”, this page is not editable. A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 75 The method to get IP. Factory: Getting IP address by Slot Number Type (System information to check slot number). Static: manually set up your gateway IP. DHCP: automatically get IP from your local LAN. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 76: Wan Settings

    Figure 7-2 WAN Settings Table 7-2 Definition of WAN Settings Options Definition Interface The name of network interface. The method to get IP. Type Factory: Getting IP address by Slot Number (System information to check slot number). OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 77: Vpn Settings

    SWG-2016/32 series gateways support PPTP VPN. Figure 7-3 VPN Settings Table 7-3 Definition of VPN Settings Options Definition None – close VPN VPN Type PPTP VPN – use PPTP VPN server The server's IP address OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 78: Ddns Settings

    Your DDNS account’s password. Password The domain to which your web server will belong. Your domain 7.5 Toolkit 7.5.1 Ping and Traceroute It is used to check network connectivity. Support Ping command on web GUI. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 79: Tcp Capture

    Table7-5 Definition of DDNS Settings Options Definition You can choose eth0 or eth1 Inferface Source host Source host Destination host Destination host IP Which port you want to capture? Port Protocol Which protocol you want to capture? OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 80: Security Settings

    Ping Enable not allow to ping. 7.6.2 White/Black List Settings White List Enbale: To enable white list or not. List IP Settings: IPs are separated only by "," character. Figure 7-8 White/Black List Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 81 And Click "Apply" button in 1 minute. If time runs out, this window will close automatically. Figure 7-9 Firewall Rules Apply If you see windows like below. It means your configuration has been applied successfully. Figure 7-10 Firewall Rules Apply OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 82: Security Rules

    If "List IP Settings" has no problem, you will see popup window like below. Please read the warning and tips carefully. And Click "Apply" button in 1 minute. If time runs out, this window will close automatically. Figure 7-12 Security Rules Apply OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 83: Sip Capture

    You can capture the SIP packets on the page to facilitate locationg problems. Figure 7-14 SIP Capture Table 7-7 SIP Capture Settings Options Definition You can choose eth0 or eth1 Inferface Method-filter You can choose INVITE, OPTIONS and REGISTER OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 84: Advances

    Name of the manager without space Password for the manager. Characters: Allowed characters Manager secret “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char & Deny as separator.Example: 0.0.0.0/0.0.0.0 or OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 85 Once you set like the above figure, the host 172.16.100.110/255.255.0.0 is allowed to access the gateway API. Please refer to the following figure to access the gateway API by telnet. 172.16.179.1 is the gateway’s IP, and 5038 is its API port. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 86: Asterisk Cli

    Figure 8-3 Asterisk CLI Type your Asterisk CLI commands here to check or debug your gateway. Command: If you type “help” or “?” and execute it, the page will show you the executable commands. Notice: OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 87: Asterisk File Editor

    Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. 8.3 Cloud Management SWG-2016/32 series gateways support OpenVox Cloud Management. Figure 8-5 Cloud Management If your device is connected to the cloud management, the SSH and web pages of the gateway can be accessed through the cloud management, and it can be monitored whether the device is connected to the cloud management platform.On the cloud management platform, you can also...
  • Page 88 United States. Registered account or email on the cloud management Account platform The password of the account registered on the cloud Password management platform Connection Is it currently connected to the cloud management platform? Status OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 89: Logs

    For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. And the same with other log pages. Figure 9-1 Log Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 90 You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR information. Figure 9-3 CDR Output Recently we have made our LOGS display richer, you can see your Outbound of every port clearly. Figure 9-4 Outbound Table9-1 definition of Logs OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 91: Appendix Feature List

    New logs will be retained. (CDR logs) switch off : logs will remain, and the file size will increase gradually. default on, max size=20MB. Appendix Feature List General Info  LAN:1 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 92: Voip Characters

    None (No registration, just IP and Password authenication) Endpoint registers with this gateway (work as a SIP Sever) This gateway registers with the endpoint (work as a SIP/IAX2 client) Network  IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP  PPTP VPN OpenVox Communication Co. ,LTD. Website: www.openvox.cn...

  • Page 93: System Features

     SMS Coding/Detecting Automatically Identification  SMS Remotely Controlling Gateway  SMS Forwarding and Quick Reply  USSD transceiver  Outbound  Automatically Reboot  Support MMP  Support for custom scripts, dialplans  Support Openvox cloud manage OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
  • Page 94  Firmware Update by HTTP  Support Web and SSH login password modification  Restore Factory Settings  CDR(More than 200,000 Lines CDRs Storage Locally)  System log  SIP/IAX2 log  TCP and SIP capture OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
