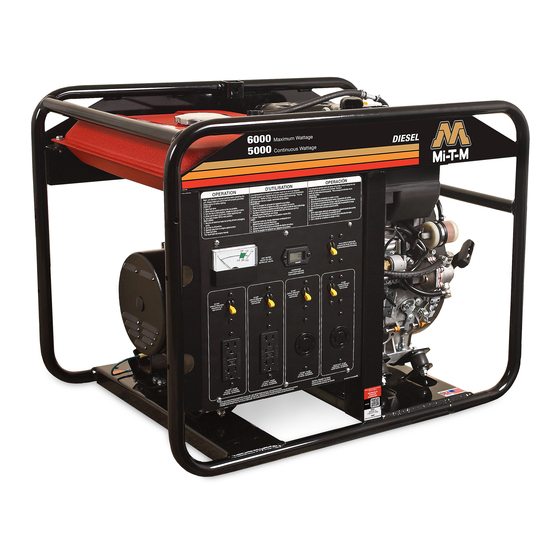

- Page 1 OPERATOR’S MANUAL FOR GEN-6000-0MKD DIESEL GENERATOR CAUTION RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE GENERATOR AND MUST REMAIN WITH THIS UNIT! ©COPYRIGHT 2012, MI-T-M CORPORATION® 37-1226-E/F/S-082119 Operator’s Manual...
- Page 2 Introduction THANK YOU for purchasing a Mi-T-M product. The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all READ THIS MANUAL carefully to learn how to operate the numbers to help in tracing the machine should it be and service your machine correctly.
-
Page 3: Table Of Contents
Contents Page Safety ................. 4 Safety Signs ............. 10 Controls ..............11 Preparing the Generator .......... 12 Operation ..............15 Troubleshooting ............17 Service ..............18 Storage ..............21 Specifications ............21 Accessoires ..............22 Warranty ..............23 All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. -
Page 4: Safety
Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your Mi-T-M Customer Service Representa- tive. Learn how to operate the machine and how to use controls properly. - Page 5 CARBON MONOXIDE - POISONOUS GAS Use generator outdoors, away from open windows, vents, or doors. Generator exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas. Never use a generator in enclosed or partially-enclosed spaces. Generators can produce high levels of carbon monoxide very quick- ly.
- Page 6 A GFCI will not work on generators that do not have the neutral wire bonded to the frame, or on generators which have not been properly grounded. All Mi-T-M generators have internally bonded ground wires. A GFCI will not work if the unit is not properly grounded.
- Page 7 (Ground Fault Circuit Interrupter). Test GFCI before each use, see Op- erations Instructions for further information. If GFCI fails test, DO NOT use your generator. Contact your Mi-T-M Customer Service Represen- tative. Plug appliances directly into the generator. Or, use a heavy duty, out- door-rated extension cord that is rated (in watts or amps) at least equal to the sum of the connected appliance loads.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed: 1. Read all the instructions before using the product. 2. This product is equipped with a Ground Fault Circuit Interrupter (GFCI) in the power cord to reduce the risk of electrical shock.
- Page 9 WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropri- ate to the job. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfort- able loud noises. Operating equipment safely requires the full attention of the operator.
-
Page 10: Safety Signs
SAFETY SIGNS OPERATION D'UTILISATION OPERACIÓN Read unit Operator's Manual carefully before operating Lire soigneusement le manuel de l'utilisateur avant de se servir de l'appareil. S'assurer Lea manual de operador antes de operar esta unidad. Siempre asegúrese que this unit. Always make sure unit is level and properly toujours que l'appareil est sur une surface plane et qu'il est correctement relié... -
Page 11: Controls
Controls CONTROLS C -- Oil Drain Plug A -- Fuel Tank D -- Fuel Cap B -- Control Panel Operator’s Manual... -
Page 12: Preparing The Generator
Preparing the Generator GROUNDING INSTRUCTIONS should be 3/4 inch trade size or larger and the outer surface must be noncorrosive. If a steel or iron rod is used This product must be grounded. If it should malfunction or it should be at least 5/8 inch diameter and if a nonferrous breakdown, grounding provides a path of least resistance rod is used it should be at least 1/2 inch diameter and be for electric current to reduce the risk of electric shock. - Page 13 Preparing the Generator FUELING ENGINE OIL SPECIFICATIONS Use an engine oil that meets or exceeds the following WARNING: EXPLOSIVE FUEL! guidelines and classifications: DIESEL FUEL IS EXTREMELY FLAMMABLE SERVICE CATEGORIES AND ITS VAPORS CAN EXPLODE IF IGNITED. • A.P.I.: American Petroleum Institute •...
- Page 14 Preparing the Generator tions are suitable for use in this engine: ASTM D-975 - 1D 1. Remove fuel tank cap. or 2D, EN590, or equivalent. 2. Add fuel and reinstall fuel tank cap. FUELS FOR LOW TEMPERATURES WARNING: WITH AMBIENT It is possible to run the engine at temperatures below 0°C TEMPERATURES (-5/8°C)
-
Page 15: Operation
Operation OPERATION NOTE: The 125 Volt, 30 Amp, 125/250 Volt, 20 Amp and 125/250 Volt, 30 Amp locking receptacles ELECTRIC START ARE NOT GROUND FAULT PROTECTED. If ground fault protection on these receptacles CAUTION:DO NOT USE STARTING FLUIDS is necessary or desired, external protection BECAUSE VAPORS ARE FLAMMABLE. - Page 16 Operating the Generator CURRENT LOAD IN WATTS MAXIMUM CABLE LENGTH (FEET) IN AMPS 120 VOLTS 240 VOLTS #8 WIRE #10 WIRE #12 WIRE #14 WIRE #16 WIRE 1000 1200 1800 1200 2400 1800 3600 2400 4800 3000 6000 3600 7200 4800 9600 WATTS REQUIRED TO START MOTOR...
-
Page 17: Troubleshooting
Turn engine switch to the ON position. Fuel Tank empty. Fill tank per instructions in this manual. Fuel Valve is off. Turn Fuel Valve on. Consult Mi-T-M Customer Service. Generator has no output. Circuit breakers tripped. Reset circuit breakers. Inadequate cord sets or Check cord sets or extension cords extension cords. -
Page 18: Service
PROPERLY, DO NOT USE EITHER OUTLET OF THE DUPLEX RECEPTACLE. Have the unit serviced by an Keep all air vents clear. authorized Mi-T-M Customer Service Representative immediately. Keep the generator clean. DO NOT spray with water. Periodically check all fasteners and tighten, see the peri- 3. - Page 19 WELL VENTILATED AREA. ENSURE THAT NO SPARKS OR FLAMES ARE NEAR THE WORKING AREA, THIS INCLUDES GOVERNOR SPEED ADJUSTMENT SHOULD APPLIANCE WITH A PILOT LIGHT. BE MADE ONLY BY A MI-T-M CUSTOMER SERVICE REPRESENTATIVE. CAUTION: NEVER ENGINE WITHOUT FILTER, SERIOUS CHANGING ENGINE OIL: DANGER CAN RESULT.
- Page 20 * Perform these operations after the first 5 hours of use, then at the recommended intervals. ** Service more frequently under dusty conditions. NOTE: These items must be performed with the proper tools. See your Mi-T-M Customer Service Repre- sentative for service, unless you have the proper equipment and mechanical proficiency.
-
Page 21: Storage
2. Fill with fuel containing 10% AGIP RUSTIA NT. WELL VENTILATED AREA AND STORED IN A 3. Start the engine run at no load. CONTAINER APPROVED FOR DIESEL FUEL. Specifications SPECIFICATIONS GEN-6000-0MKD ITEM Engine Kohler Watts (AC) Rated 5000 watts Watts (AC) Max. -
Page 22: Accessoires
Accessories LIFTING HOOK KIT: AW-5090-0007 Used for lifting the generator safely. The Lifting Hook Kit includes the lifting hook, hardware and instructions needed to assemble the lifting hook to the generator. WHEEL AND HANDLE KIT: AW-5740-0006 Allows easier portability of the generator. The Wheel and Handle Kit includes the wheels, handles, hardware and in- structions needed to assemble the kit to the generator. -
Page 23: Warranty
