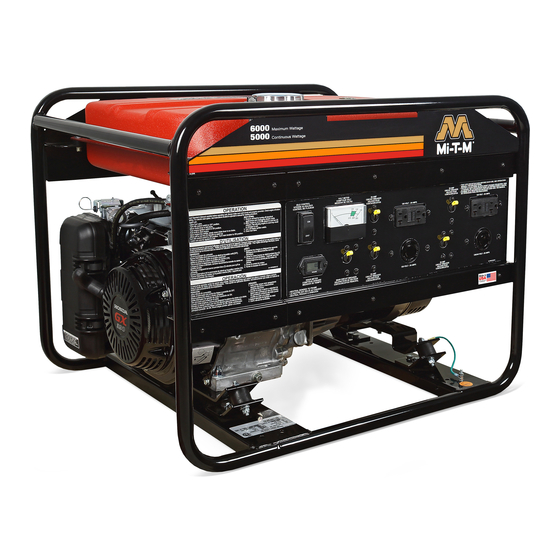

OPERATOR'S MANUAL FOR
GEN-6000/7500-0MH0/0MHE
GEN-6000/8000-0MS0/0MSE
GEN-6000/8000-0MK0/0MKE
PORTABLE GENERATORS
CAUTION
RISK OF INJURY! READ ENTIRE MANUAL BEFORE
OPERATING! THIS MANUAL IS AN IMPORTANT PART OF
THE GENERATOR AND MUST REMAIN WITH THIS UNIT!
©Copyright 2006, Mi-T-M Corporation®
37-0880-E/F/S-092222
Operator's Manual
1
Advertisement
Table of Contents
Related Manuals for Mi-T-M GEN-6000-0MH0
Summary of Contents for Mi-T-M GEN-6000-0MH0
- Page 1 OPERATOR’S MANUAL FOR GEN-6000/7500-0MH0/0MHE GEN-6000/8000-0MS0/0MSE GEN-6000/8000-0MK0/0MKE PORTABLE GENERATORS CAUTION RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE GENERATOR AND MUST REMAIN WITH THIS UNIT! ©Copyright 2006, Mi-T-M Corporation® 37-0880-E/F/S-092222 Operator’s Manual...
-
Page 2: Introduction
INTRODUCTION THANK YOU for purchasing a Mi-T-M product. The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the READ THIS MANUAL carefully to learn how to operate numbers to help in tracing the machine should it be stolen. -
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............................2 CONTENTS ..............................3 SAFETY ..............................5 CONTROLS .............................12 PREPARING THE GENERATOR.......................13 OPERATION .............................16 TROUBLESHOOTING ..........................20 SERVICE ..............................21 STORAGE ..............................26 SPECIFICATIONS ............................27 ACCESSORIES ............................28 STATEMENT OF WARRANTY ........................29 ALL INFORMATION, ILLUSTRATIONS AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST INFORMATION AVAILABLE AT THE TIME OF PUBLICATION. THE RIGHT IS RESERVED TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE. - Page 4 CONTENTS Operator’s Manual...
-
Page 5: Safety
Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your Mi-T-M Customer Service Representative. Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction. - Page 6 CARBON MONOXIDE - POISONOUS GAS Use generator outdoors, away from open windows, vents, or doors. Generator exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas. Never use a generator in enclosed or partially-enclosed spaces. Generators can produce high levels of carbon monoxide very quickly.
- Page 7 A GFCI will not work on generators that do not have the neutral wire bonded to the frame, or on generators which have not been properly grounded. All Mi-T-M generators have internally bonded ground wires. A GFCI will not work if the unit is not properly grounded.
- Page 8 (Ground Fault Circuit Interrupter). Test GFCI before each use, see Op- erations Instructions for further information. If GFCI fails test, DO NOT use your generator. Contact your Mi-T-M Customer Service Represen- tative. Plug appliances directly into the generator. Or, use a heavy duty, outdoor-rated extension cord that is rated (in watts or amps) at least equal to the sum of the connected appliance loads.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF INJURY, READ THIS OPERATOR’S MANUAL COMPLETELY BEFORE USING. WHEN USING THIS PRODUCT, THE FOLLOWING BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED: 1. Read all the instructions before using the product. 2. This product is equipped with a Ground Fault Circuit Interrupter (GFCI) in the power cord to reduce the risk of electrical shock.
- Page 10 WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropriate to the job. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine.
- Page 11 SAFETY SIGNS 34-0889 34-0889 083012 083012 34-0889 Location: Frame Assembly WARNING AVERTISSEMENT ADVERTENCIA WARNING: Cancer and Reproductive Harm — EXPLOSIVE FUEL SHOCK AVERTISSEMENT: Cancer et toxique pour la reproduction — CARBURANT EXPLOSIF DÉCHARGE ADVERTENCIA: Peligro de cáncer y daño reproductivo — COMESTIBLE EXPLOSIVO DESCARGA www.P65warnings.ca.gov/...
-
Page 12: Controls
CONTROLS CONTROLS A -- Fuel Tank D -- Oil Dipstick G-- Roll Over Valve B -- Control Panel E-- Fuel Gauge H-- Spark Arrestor C -- Oil Drain Plug F-- Fuel Cap I-- Muffler Operator’s Manual... -
Page 13: Preparing The Generator
PREPARING THE GENERATOR GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER IMPROPER CONNECTION EQUIPMENT-GROUNDING CONDUCTOR RESULT IN A RISK OF ELECTROCUTION. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE UNIT IS PROPERLY GROUNDED. - Page 14 PREPARING THE GENERATOR ENGINE OIL TEMPERATURE CHART Use oil viscosity based on the expected air temperature range during the period between oil changes. Use a high quality detergent oil with API classifications of SJ or higher. Check oil level before each operation and ensure that it is maintained.
- Page 15 PREPARING THE GENERATOR WARNING: DO NOT OVERFILL THE FUEL TANK, LEAVE ROOM FOR THE FUEL TO EXPAND. GENERAL RECOMMENDATIONS • Purchase gasoline in small quantities and store in clean, approved containers. • To minimize gum deposits in your fuel system and to insure easy starting, do not use gasoline left over from the previous season.
-
Page 16: Operation
OPERATION RECOIL START NOTE: Read Operator’s Manual carefully before operating this unit. Always make sure the unit is level and properly grounded. Check engine oil before starting. 1. Open fuel valve on unit or engine. (See Fig. 3) 2. Turn the idle control switch to the OFF position. 3. - Page 17 OPERATING THE GENERATOR until the condition is corrected. Do not jump start using another battery. 6. Once engine has started, slowly move choke lever to no choke. 7. Allow the unit to run for two (2) minute warm-up. 8. Turn main breaker to ON position (GEN-6000 units only). 9.
- Page 18 OPERATING THE GENERATOR NOTE: The 125 Volt, 30 Amp, 125/250 Volt, 20 Amp and 125/250 Volt, 30 Amp locking receptacles ARE NOT GROUND FAULT PROTECTED. If ground fault protection on these receptacles is necessary or desired, external protection devices must be used. Refer to the section on “Ground Fault Interrupter”...
- Page 19 OPERATING THE GENERATOR CABLE SIZE: Equipment damage can result from low voltage. Therefore, to prevent excessive voltage drop between the genera- tor and the equipment, the cable should be of adequate gauge for the length used. The cable selection chart gives the maximum cable lengths for various gauges of wire which can adequately carry the loads shown.
-
Page 20: Troubleshooting
If there is no spark, replace the plug. Reinstall the plug and start engine ac- cording to instructions in this manual. Consult Mi-T-M Customer Service. Generator has no output. Circuit breakers tripped. Reset circuit breakers Inadequate cord sets or extension Check cord sets or cords.capabilities... -
Page 21: Service
“click”. IF THE GFCI FAILS TO RESET PROPERLY, DO NOT USE EITHER OUTLET OF THE DUPLEX RECEPTACLE. Have the unit serviced by an authorized Mi-T-M Customer Service Representative immediately. 3. High vibration or severe mechanical shock loads may cause the GFCIs to trip. IF EITHER GFCI TRIPS BY ITSELF AT ANY TIME, reset it and perform test procedures 1 and 2. - Page 22 The idle control will not function properly when the idle speed is below the recommended limits or the carburetor is improperly adjusted. HAVE THE UNIT SERVICED BY AN AUTHORIZED MI-T-M CUSTOM- ER SERVICE REPRESENTATIVE.MAINTENANCE ENGINE: The engine for this generator is governed to operate at speeds close to 3600 RPM (60Hz) throughout the operating load range.
- Page 23 SERVICE 5. Reinstall the oil drain plug. 6. Remove oil gauge and refill with new oil. (Fig. 7) 7. Check the oil level as instructed in Preparing the Generator; Engine Oil Capacity section. 8. Wipe up any spilled oil. AIR CLEANER: WARNING: RISK OF FIRE OR EXPLOSION.
- Page 24 Inspect the screen for breaks or tears and replace it if necessary. 3. Install the spark arrester in the reverse order of removal. Spark arrestors are available from your local Mi-T-M Customer Service SPARK ARRESTOR SCREEN Representative. Other user requirements may apply, check with your Federal, State or local authorities.
- Page 25 * Perform these operations after the first 5 hours of use, then at the recommended intervals. ** Service more frequently under dusty conditions. NOTE: These items must be performed with the proper tools. See your Mi-T-M Customer Service Representative for service, unless you have the proper equipment and mechanical proficiency.
-
Page 26: Storage
STORAGE STORING GENERATOR SHORT TERM (1-6 MONTHS): 1. Add gasoline conditioner and stabilizer at the specified concentration. 2. Run the unit for two (2) minutes to ensure the mixed fuel is in the entire fuel system. Close the fuel valve and run the unit until it stops. 3. -
Page 27: Specifications
SPECIFICATIONS GEN-6000-0MH0/E GEN-6000-0MS0/E GEN-6000-0MK0 GEN-7500-0MH0/E GEN-8000-0MS0/E GEN-8000-0MK0/E Engine ......Honda ...... Subaru ....Kohler ....Honda ....... Subaru ....Kohler Watts (AC) Rated..5000 watts ....5000 watts ....5000 watts ....6500 watts ....6900 watts ..... 6900 watts Watts (AC) Max..6000 watts ....6000 watts ....6000 watts ....7500 watts ....8000 watts ..... 8000 watts Rated Voltage (AC) ..120/240V .... -
Page 28: Accessories
ACCESSORIES LIFTING HOOK KIT: AW-5090-0004 Used for lifting the generator safely. The Lifting Hook Kit includes the lifting hook, hardware and instructions needed to assemble the lifting hook to the generator. WHEEL AND HANDLE KIT: AW-5740-0010 Allows easier portability of the generator. The Wheel and Han- dle Kit includes the wheels, handles, hardware and instruc- tions needed to assemble the kit to the generator. -
Page 29: Statement Of Warranty
STATEMENT OF WARRANTY Mi-T-M warrants all parts, (except those referred to below), of your new generator to be free from defects in materials and workmanship during the following periods: For Two (2) Years from the date of original purchase. Defective parts not subject to normal wear and tear will be repaired or replaced at our option during the warranty period. - Page 30 SORE , but Mi-T-M cannot deny warranty coverage solely for the lack of receipts. -As the SORE owner, you should be aware that Mi-T-M may deny you warranty coverage if your SORE or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
- Page 31 WARRANTY (10) Mi-T-M shall provide any documents that describe that Mi-T-M warranty procedures or policies within five working days of request by the Executive Officer. (c) WARRANTED PARTS: The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if Mi-T-M demonstrates that the engine has been abused, neglected, or improperly maintained, and that such abuse , neglect ,or improper maintenance was the direct cause of the need for repair or replacement of the part.
