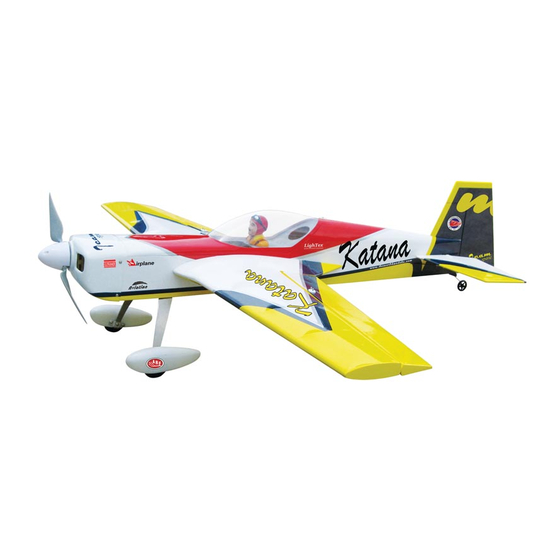

Katana EP
Requires : 4-channel radio w/ 4 micro servos,
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
* Specifications are subject to change without notice.*
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
All manuals and user guides at all-guides.com
S p ecifica tio n s
INSTRUCTION MANUAL
40 in / 1020 mm
301 sq in / 19.4 sq dm
27.5 oz / 780 g
35 in / 890 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
