DOREL ASIA
Model No:
DA1010-7MOV

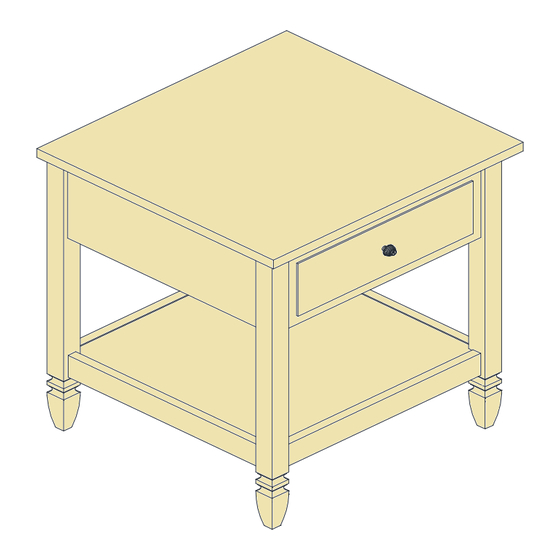

NIGHTSTAND
UPC CODE:
0-65857-17156-3
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA1010-7MOV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorel DA1010-7MOV

  • Page 1 DOREL ASIA Model No: DA1010-7MOV NIGHTSTAND UPC CODE: 0-65857-17156-3 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase.
  • Page 3: Hardware List

    NIGHTSTAND DA1010-7MOV HARDWARE LIST Ø8 X 30 mm Ø6 X 20 mm Ø15 X 11 mm LARGE WOOD DOWEL SMALL WOOD DOWEL LARGE CAM LOCK 16 PCS 2 PCS 14 PCS Ø7 X 36 mm Ø13 X 10 mm Ø7 X 28 mm...
  • Page 4: Parts List

    NIGHTSTAND DA1010-7MOV PARTS LIST TOP PANEL LEFT SIDE FRAME RIGHT SIDE FRAME 1 PC 1 PC 1 PC BOTTOM PANEL FRONT RAIL BACK PANEL 1 PC 1 PC 1 PC DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE 1 PC...
  • Page 5 NIGHTSTAND DA1010-7MOV STEP 1 Insert large cam bolts (4) into the left side frame (B) and right side frame (C) as shown below.
  • Page 6 NIGHTSTAND DA1010-7MOV STEP 2 Insert large cam locks (3) into the front and back rails (E & F) and bottom panel (D). Insert large wood dowels (1) into the left side frame (B) and right side frame (C). Secure front and back rails (E & F) and bottom panel (D) to the left side frame (B) and right side frame (C) by rotating the large cam locks (3) 1/2 turn clockwise using a Phillips head screwdriver (not included).
  • Page 7 NIGHTSTAND DA1010-7MOV STEP 3 Insert large cam bolts (4) into the top panel (A).
  • Page 8 NIGHTSTAND DA1010-7MOV STEP 4 Insert large wood dowels (1) into the left side frame (B) and right side frame (C). Insert large cam locks (3) into the left side frame (B) and right side frame (C). Fasten top panel (A) to the assembled unit by rotating large cam locks (3) 1/2-turn...
  • Page 9 NIGHTSTAND DA1010-7MOV STEP 5 Insert small cam bolts (6) and small wood dowels (2) into the front drawer panel (G). Insert small cam locks (5) into the left drawer side (H) and right drawer side (I). Attach drawer sides (H & I) to the front drawer panel (G). Secure the drawer sides by rotating small cam locks (5) 1/2-turn clockwise using a Phillips head screwdriver (not included).
  • Page 10 NIGHTSTAND DA1010-7MOV STEP 6 Attach drawer back (J) to the drawer sides (H & I) with flat head screws (7). Use a Phillips head screwdriver (not included) to tighten the screws. Attach knob (8) to the front drawer panel (G) with bolt (9).
  • Page 11 NIGHTSTAND DA1010-7MOV STEP 7 Insert the drawer into the assembled unit.
  • Page 12 NIGHTSTAND DA1010-7MOV CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. That's it! You've finished assembling your nightstand.
  • Page 13 MODEL #: DA1010-7MOV Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
  • Page 14 _______ / _______ / _______ NO DEVUELVA EL PRODUCTO A LA TIENDA. Si falta una pieza o está dañada, contacte nuestro departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo. Tel #: 1-800-295-1980 Correo electrónico: das@dorel.com Fax #: 514-353-7819...
  • Page 15: Cuidado Y Limpieza

    Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario. GARANTÍA LIMITADA Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a remediar cualquiera de esos defectos. Esta garantía cubre 1 año a partir de la fecha de compra original.
  • Page 16: Lista De Accesorios

    MESA DE LUZ DA1010-7MOV LISTA DE ACCESORIOS Ø8 X 30 mm Ø6 X 20 mm Ø15 X 11 mm CLAVIJA DE MADERA CLAVIJA DE MADERA SEGURO DE LEVA GRANDE PEQUEÑA GRANDE 16 PZAS 2 PZAS 14 PZAS Ø7 X 36 mm Ø13 X 10 mm...
  • Page 17: Lista De Piezas

    MESA DE LUZ DA1010-7MOV LISTA DE PIEZAS MARCO LATERAL MARCO LATERAL TAPA DE MESA IZQUIERDO DERECHO 1 PZA 1 PZA 1 PZA PANEL INFERIOR SOPORTE ANTERIOR SOPORTE POSTERIOR 1 PZA 1 PZA 1 PZA FRENTE CAJÓN LADO IZQUIERDO CAJÓN LADO DERECHO CAJÓN...
  • Page 18 MESA DE LUZ DA1010-7MOV ETAPA 1 Inserte pernos de leva grandes (4) en el marco lateral izquierdo (B) y el marco lateral derecho (C) como ilustrado.
  • Page 19 MESA DE LUZ DA1010-7MOV ETAPA 2 Inserte seguros de leva grandes (3) en los soportes anterior y posterior (E y F) y en el panel inferior (D). Inserte clavijas de madera grandes (1) en el marco lateral izquierdo (B) y el marco lateral derecho (C).
  • Page 20 MESA DE LUZ DA1010-7MOV ETAPA 3 Inserte pernos de leva grandes (4) en la tapa de la mesa (A).
  • Page 21 MESA DE LUZ DA1010-7MOV ETAPA 4 Inserte clavijas de madera grandes (1) en el marco lateral izquierdo (B) y el marco lateral derecho (C). Inserte seguros de leva grandes (3) en el marco lateral izquierdo (B) y el marco lateral derecho (C).
  • Page 22 MESA DE LUZ DA1010-7MOV ETAPA 5 Inserte pernos de leva pequeños (6) y clavijas de madera pequeñas (2) en el frente del cajón (G). Inserte seguros de leva pequeños (5) en el lado izquierdo del cajón (H) y el lado derecho del cajón (I).
  • Page 23 MESA DE LUZ DA1010-7MOV ETAPA 6 Una el lado posterior del cajón (J) con los lados del cajón (H e I) con tornillos de cabeza plana (7). Utilice un destornillador Phillips (no incluido) para ajustar los tornillos. Coloque el pomo (8) en el frente del cajón (G) con un perno (9).
  • Page 24 MESA DE LUZ DA1010-7MOV ETAPA 7 Coloque el cajón en la mesa ya armada.
  • Page 25 ¡Listo! ¡Ya ha terminado de ensamblar su mesa de luz. NO DEVUELVA EL PRODUCTO A LA TIENDA. Si falta una pieza o está dañada, contacte nuestro departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo. Tel #: 1-800-295-1980 Correo electrónico: das@dorel.com Fax #: 514-353-7819...
  • Page 26 MODELO #: DA1010-7MOV Servicio a la Clientela POR FAVOR, NO DEVUELVA ESTE PRODUCTO A LA TIENDA POR FAVOR, CONTACTE LOS REPRESENTANTES DEL SERVICIO A LA CLIENTELA A LOS SIGUIENTES NÚMEROS SI FALTA UNA PIEZA O ESTÁ DEFECTUOSA. Número de teléfono del Servicio a la Clientela 1-800-295-1980 Número de fax del Servicio a la Clientela 514-353-7819...
  • Page 27 _______ / _______ / _______ NE RETOURNEZ PAS LE PRODUIT AU MAGASIN. Si une pièce est manquante ou endommagée, veuillez communiquer avec notre service à la clientèle. Nous la remplacerons GRATUITEMENT. Tél : 1-800-295-1980 Courriel : das@dorel.com Fax : 514-353-7819...
  • Page 28: Service À La Clientèle

    Veuillez vérifier les boulons et les vis périodiquement et serrez-les si cela s'avère nécessaire. GARANTIE LIMITÉE Dorel garantit que ce produit est exempt de tout défaut de matériaux et de fabrication et s'engage à remédier à un tel défaut. Cette garantie a une validité de 1 an à compter de la date originelle d'achat.
  • Page 29 TABLE DE NUIT DA1010-7MOV LISTE DE QUINCAILLERIE Ø8 X 30 mm Ø6 X 20 mm Ø15 X 11 mm GOUJON DE BOIS VERROUILLAGE À GOUJON DE BOIS PETIT GRAND CAME GRAND 2 PCES 16 PCES 14 PCES Ø7 X 36 mm Ø13 X 10 mm...
  • Page 30: Liste De Pièces

    TABLE DE NUIT DA1010-7MOV LISTE DE PIÈCES PANNEAU DU DESSUS CADRE LATÉRAL GAUCHE CADRE LATÉRAL DROIT 1 PCE 1 PCE 1 PCE SUPPORT INFÉRIEUR PANNEAU INFÉRIEUR SUPPORT POSTÉRIEUR 1 PCE 1 PCE 1 PCE DEVANT TIROIR CÔTÉ GAUCHE TIROIR CÔTÉ DROIT TIROIR...
  • Page 31 TABLE DE NUIT DA1010-7MOV ÉTAPE 1 Insérez des boulons à came grands (4) dans le cadre latéral gauche (B) et dans le cadre latéral droit (C) comme illustré.
  • Page 32 TABLE DE NUIT DA1010-7MOV ÉTAPE 2 Insérez des verrouillages à came grands (3) dans les supports antérieur et postérieur (E et F) et dans le panneau inférieur (D). Insérez des goujons de bois grands (1) dans le cadre latéral gauche (B) et le cadre latéral droit (C).
  • Page 33 TABLE DE NUIT DA1010-7MOV ÉTAPE 3 Insérez des boulons à came grands (4) dans le panneau supérieur (A).
  • Page 34 TABLE DE NUIT DA1010-7MOV ÉTAPE 4 Insérez des goujons de bois grands (1) dans le cadre latéral gauche (B) et dans le cadre latéral droit (C). Insérez des verroillages à came grandes (3) dans le cadre latéral gauche (B) et dans le cadre latéral droit (C).
  • Page 35 TABLE DE NUIT DA1010-7MOV ÉTAPE 5 Insérez des boulons à came petits (6) et des goujons de bois petits (2) dans le devant du tiroir (G). Insérez des verrouillages à came petits (5) dans le côté gauche du tiroir (H) et dans le cô...
  • Page 36 TABLE DE NUIT DA1010-7MOV ÉTAPE 6 Attachez le côté postérieur du tiroir (J) aux côtés du tiroir (H et I) avec des vis à tête plate (7). Utilisez un tournevis cruciforme (non compris) pour serrer les vis. Attachez un bouton (8) au devant du tiroir (G) avec un boulon (9).
  • Page 37 TABLE DE NUIT DA1010-7MOV ÉTAPE 7 Insérez le tiroir dans la table déjà assemblée.
  • Page 38 TABLE DE NUIT DA1010-7MOV ATTENTION: Cette unité est conçue pour être utilisée seulement avec les produits et/ou les poids maximum indiqués. L'utilisation avec d'autres produits et/ou des produits plus lourds que les poids maximum indiqués peut entraîner de l'instabilité et causer des blessures.
  • Page 39 MODÈLE #: DA1010-7MOV Service à la Clientèle S.V.P. NE PAS RETOURNER CE PRODUIT AU MAGASIN S.V.P. CONTACTEZ NOS REPRÉSENTANTS DU SERVICE À LA CLIENTÈLE AUX NUMÉROS SUIVANTS SI VOUS AVEZ DES PIÈCES MANQUANTES OU DÉFECTUEUSES. No. de téléphone du Service à la clientèle: 1-800-295-1980 Courriel: das@dorel.com...
