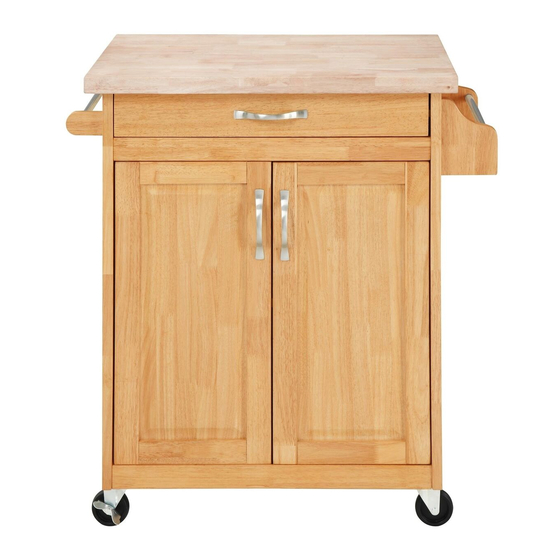

DOREL ASIA
KITCHEN CART
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
DA6545N (Natural)
DA6545W (White)
0-65857-18228-6 (Natural)
0-65857-18229-3 (White)
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTA
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRO
E-MAIL:DAS@DOREL
Model No:
UPC CODE:
NOTE:
Lot number:
Advertisement
Table of Contents
Related Manuals for Dorel DA6545N
Summary of Contents for Dorel DA6545N
- Page 1 DOREL ASIA KITCHEN CART Model No: DA6545N (Natural) DA6545W (White) UPC CODE: 0-65857-18228-6 (Natural) 0-65857-18229-3 (White) NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
KITCHEN CART DA6545N / DA6545W HARDWARE LIST CAM BOLT CAM LOCK 8 PCS 8 PCS Ø5/32" x 1" Ø1/4" x 1-3/4" FLAT HEAD SCREW HEX SOCKET HEAD BOLT 8 PCS 8 PCS ALLEN KEY WOOD DOWEL 1 PC 16 PCS... - Page 4 KITCHEN CART DA6545N / DA6545W HARDWARE LIST Ø5/32" x 7/8" Ø1/8" x 3/8" ROUND HEAD BOLT PLATE FLAT HEAD SCREW 6 PCS 2 PCS 2 PCS Ø5/32" x 5/8" DRAWER STOPPER ROUND HEAD SCREW SHELF SUPPOTR 1 PC 16 PCS 4 PCS Ø1/4"...
-
Page 5: Parts List
KITCHEN CART DA6545N / DA6545W PARTS LIST RIGHT SIDE LEFT SIDE TOP PANEL BOTTOM PANEL PANEL - 1 PC PANEL - 1 PC 1 PC - 1 PC BACK PANEL- BACK MIDDLE BACK UPPER FRONT UPPER 2 PCS RAIL - 1 PC... - Page 6 KITCHEN CART DA6545N / DA6545W PARTS LIST RACK LEFT RACK RIGHT RACK METAL METAL TUBE- 1 PC PANEL- 1 PC PANEL- 1 PC TUBE- 1 PC DRAWER DRAWER FRONT- RACK SHELF - DRAWER BACK- 1 PC 1 PC SIDE- 2 PCS...
- Page 7 KITCHEN CART DA6545N / DA6545W STEP 1 Insert cam bolts (1) into the rack left and right panels (N&O). Insert cam locks (2) into the rack shelf (Q). Attach the rack left and right panels (N&O) to the rack metal tube (P) and the rack shelf (Q) and secure by...
- Page 8 KITCHEN CART DA6545N / DA6545W STEP 2 Attach the assembled rack to right side panel (C) with hex socket head bolts (14). Use Allen key (5) to tighten the bolts.
- Page 9 KITCHEN CART DA6545N / DA6545W STEP 3 Insert wood dowels (6) into the bottom panel (D). Attach right side panel (C) to bottom panel (D) with hex socket head bolts (4). Use Allen key (5) to tighten bolts.
- Page 10 KITCHEN CART DA6545N / DA6545W STEP 4 Insert wood dowels (6) into bottom panel (D). Attach back middle rail (H) to bottom panel (D). Slide back panels (E) into the grooves of back middle rail (H), right side panel (C) and bottom panel (D).
- Page 11 KITCHEN CART DA6545N / DA6545W STEP 5 Insert metal tube (M) into tube supports (L). Insert wood dowels (6) into tube supports (L) and attach to left side panel (B) with hex socket head bolts (14). Use Allen key (5) to tighten the bolts.
- Page 12 KITCHEN CART DA6545N / DA6545W STEP 6 Insert wood dowels (6) into back upper rail (F), front upper rail (G) and bottom panel (D). Attach left side panel (B) to the assembled unit with hex socket head bolts (4). Use Allen key (5) to tighten the bolts.
- Page 13 KITCHEN CART DA6545N / DA6545W STEP 7 Attach handle (7) to right door (K) with round head bolts (8). Attach plate (9) to right door (K) with flat head screw (10). Repeat this step for the left door (J). Attach drawer stopper (11) to front upper rail (G) with round head screw (15).
- Page 14 KITCHEN CART DA6545N / DA6545W STEP 8 Insert cam bolts (1) into the top panel (A). Insert cam locks (2) into the left side panel (B) and right side panel (C). Fasten top panel (A) to the assembled unit by rotating cam locks (2) 1/2-turn clockwise.
- Page 15 KITCHEN CART DA6545N / DA6545W STEP 9 Attach drawer sides (S) to drawer front (R) with flat head screws (3). Slide drawer bottom (U) into the grooves of the drawer sides (S) and drawer front (R). Attach drawer back (T) to drawer sides (S) with flat head screws (3). Make sure that drawer bottom (U) fits into the groove of the drawer back (T).
- Page 16 KITCHEN CART DA6545N / DA6545W STEP 10 Insert shelf supports (13) into right side panel (C) and left side panel (B). Place adjustable shelf (I) onto the shelf supports (13). Insert the drawer...
- Page 17 KITCHEN CART DA6545N / DA6545W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 18: Customer Service
MODEL #:DA6545N / DA6545W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
