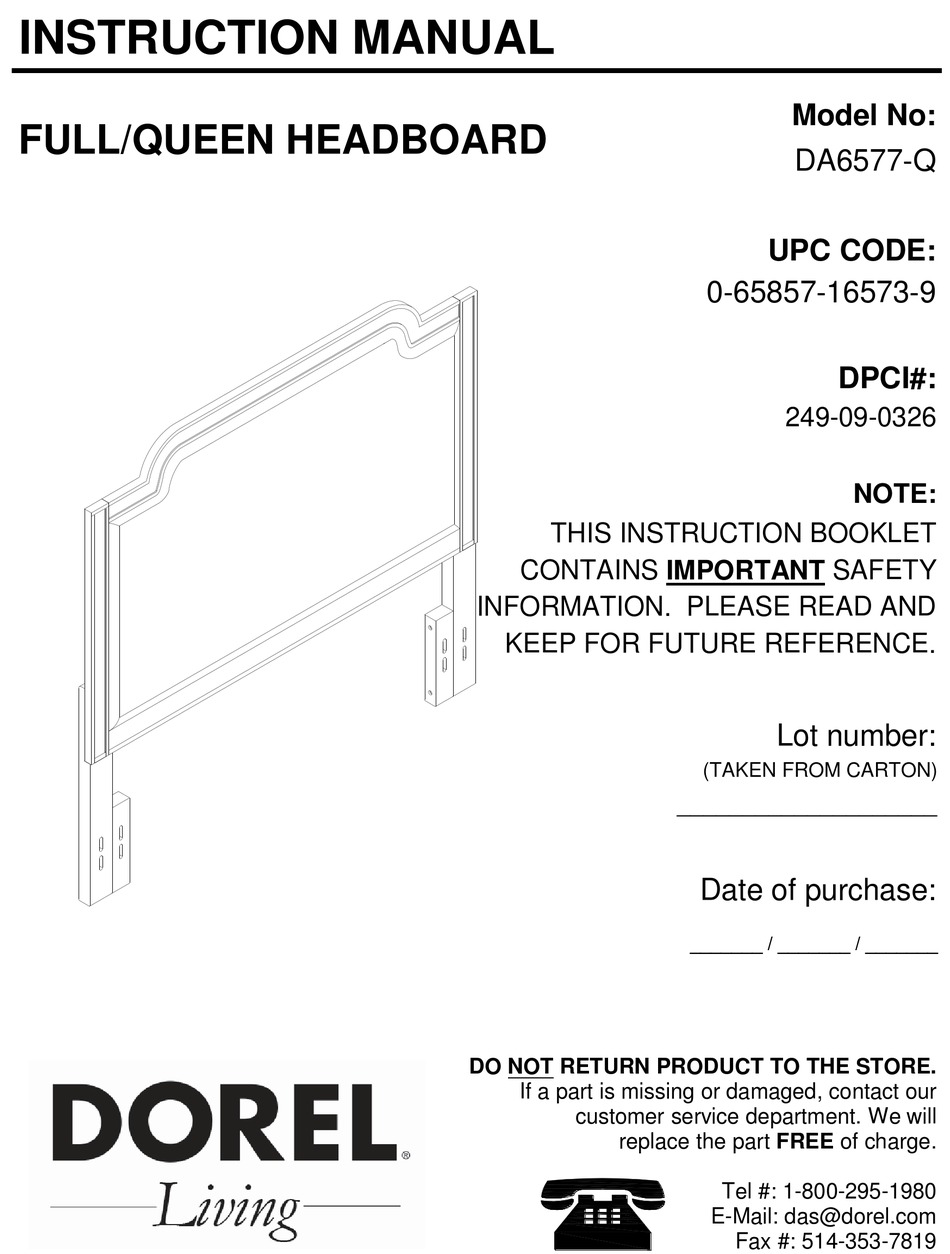

INSTRUCTION MANUAL

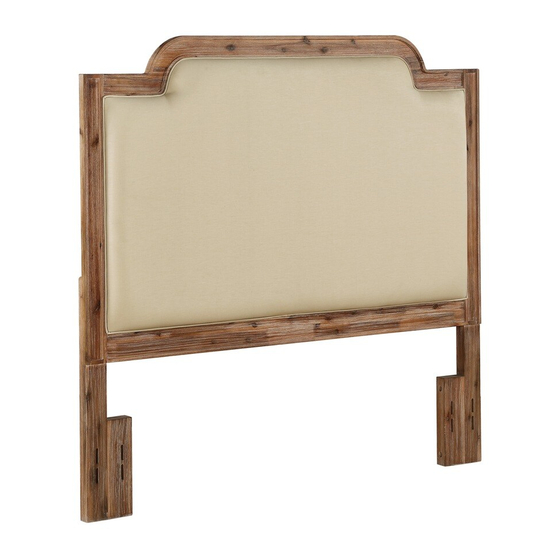

FULL/QUEEN HEADBOARD
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will
replace the part FREE of charge.
Model No:
DA6577-Q
UPC CODE:
0-65857-16573-9
DPCI#:
249-09-0326
NOTE:
Lot number:
(TAKEN FROM CARTON)
____________________
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR AS
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN
E-MAIL:DAS@DO
Advertisement
Table of Contents
Related Manuals for Dorel DA6577-Q
Summary of Contents for Dorel DA6577-Q
- Page 1 INSTRUCTION MANUAL Model No: FULL/QUEEN HEADBOARD DA6577-Q UPC CODE: 0-65857-16573-9 DPCI#: 249-09-0326 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ____________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase.
- Page 3 FULL/QUEEN HEADBOARD DA6577-Q HARDWARE LIST Ø5/16" X 1-1/2" Ø5/16" X 3-1/2" HEX SOCKET HEAD BOLT HEX SOCKET HEAD BOLT 6 PCS 4 PCS Ø10 X 20mm Ø12.5 X 1.2mm Ø16 X 1.8mm Ø8mm WOOD DOWEL SPRING WASHER FLAT WASHER 4 PCS...
-
Page 4: Parts List
FULL/QUEEN HEADBOARD DA6577-Q PARTS LIST HEADBOARD BODY LEFT LEG 1 PC 1 PC RIGHT LEG 1 PC... - Page 5 FULL/QUEEN HEADBOARD DA6577-Q STEP 1: Place all parts on a clean, smooth surface. Insert wood dowels (3) into headboard body (A). Attach legs (B & C) to headboard body (A), secure with flat washers (5), spring washers (4) & head bolts (1). Use Allen key (7) to tighten the bolts.
- Page 6 FULL/QUEEN HEADBOARD DA6577-Q NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Attach the bed frame (purchased separately) to bed posts using head bolts (2), spring washers (4), flat washers (5) and nuts (6). Use Allen key (7) to tighten bolts and use wrench (8) to tighten nuts (6).
- Page 7 FULL/QUEEN HEADBOARD DA6577-Q CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Dust regularly with a soft, dry cloth to prevent soil build up.
-
Page 8: Customer Service
MODEL #: DA6577-Q Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
