Dorel DA775 Instruction Booklet

Dorel DA775 Instruction Booklet

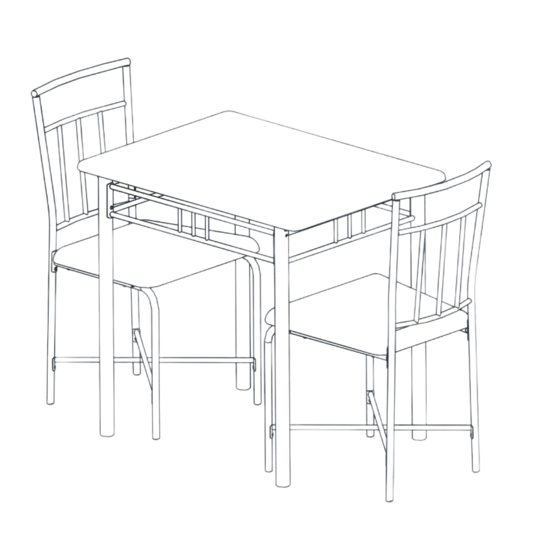

3-piece wood & metal dining set

Advertisement

Quick Links

DOREL ASIA
3-PIECE WOOD & METAL
DINING SET
DorelLiving.com/3pcDining
DA775 (Deep Walnut)
DA775-DC (Deep Walnut)
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ
AND KEEP FOR FUTURE
(TAKEN FROM CARTON)
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace
NEED HELP!
CALL US FOR ASSISTAN
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Model No:
UPC CODES:
0-65857-17419-9
0-65857-17455-7
NOTE:
REFERENCE.
Lot number:
Date of purchase:
the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA775 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorel DA775

  • Page 1 DOREL ASIA Model No: 3-PIECE WOOD & METAL DA775 (Deep Walnut) DINING SET DA775-DC (Deep Walnut) UPC CODES: 0-65857-17419-9 0-65857-17455-7 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON)
  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 3: Hardware List

    3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC HARDWARE LIST Φ1/4"×1-1/4" Φ5/32"×1-1/8" HEX SOCKET HEAD BOLT PHILLIPS COUNTERSINK HEADSCREW 4 PCS 8 PCS Φ1/4"×1/2" Φ1/8"×5/8" HEX SOCKET HEAD BOLT PHILLIPS ROUND HEADSCREW 20 PCS 4 PCS Φ1/4"×2-1/8" ALLEN KEY...
  • Page 4: Parts List

    3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC PARTS LIST BACK FRAME LEFT LEG RIGHT LEG 2 PCS 2PCS 2 PCS SEAT SUPPORT TUBE BASE SEAT CUSHION 2 PCS 2 PCS 2 PCS TABLE LEGS APRON TABLE TOP 2 PCS...
  • Page 5 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 1 Attach table legs (G) to aprons (H) with hex socket head bolts (6) and (3) as shown. Use Allen Key (5) to tighten the bolts.
  • Page 6 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 2 Place the tabletop (I) upside down on a clean, smooth surface. Place the previously assembled table frame upside down on the tabletop and center the frame on it. Use a Phillips head screwdriver (not included) to install the Phillips round head screws (4).
  • Page 7 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 3 Attach left leg (B) and right leg (C) to the back frame (A) with hex socket head bolts (3). Use Allen Key (5) to install the bolts. NOTE: Do not fully tighten the bolts. Loose bolts will facilitate...
  • Page 8 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 4 Attach seat support (D) to legs (B) and (C) with hex socket head bolts (1). Use Allen Key (5) to install the bolts. NOTE: Do not fully tighten bolts. Loose bolts will facilitate...
  • Page 9 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 5 Attach tube base (E) to the chair frame with hex socket head bolts (3). Use Allen Key (5) to install the bolts. NOTE: The mounting brackets on tube base (E) have to be positioned in a way that they follow the angle with the chair legs.
  • Page 10 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC STEP 6 Place seat cushion (F) and the chair frame upside down on a smooth, flat surface as shown. Attach seat cushion (F) to chair frame with Phillips countersink head screws (2). Use a Phillips head screwdriver (not included) to install the screws.
  • Page 11 3-PIECE WOOD & METAL DINING SET DA775 / DA775-DC CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 12 MODEL #: DA775 / DA775-DC Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...

This manual is also suitable for:

Da775-dc0-65857-17419-90-65857-17455-7
