Jet 16-32 PLUS Specifications

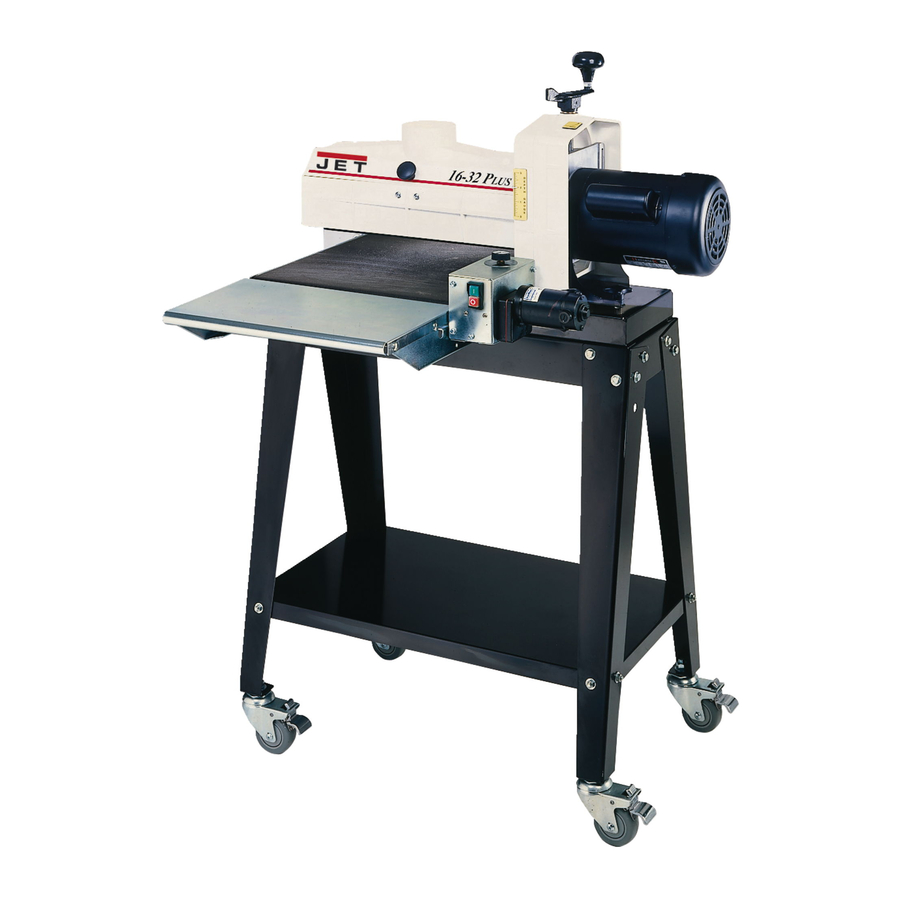

JET 16-32 Plus Drum Sander
The JET 16-32 Plus Drum Sander elevates the primary
woodworking tasks of sanding from long and slow to short and
fast, one may even venture to say fun. The JET 16-32 Plus Drum
Sander can transform your work from machined quality lumber
to a finish quality project of all shapes and sizes. The open-
ended design enables the JET 16-32 Plus Drum Sander to handle
boards up to 32" in width but has an overall footprint of only
35"-wide by 24 ¾"-deep and 48"-tall.
The generous use of heavy-duty components insures the
durability and long-term accuracy of the JET 16-32 Plus Drum
Sander. Its 164-lb weight is testament to that durability and the
stability of the JET 16-32 Plus Drum Sander. That attention to
said quality and durability allows JET to offer a full 5-year warranty on the JET 16-32
Plus Drum Sander.

Capacity

The unique design of the JET 16-32 Plus Drum Sander provides
ample capacity to handle small and large jobs with ease. One can
sand material up to 3"-thick, as thin as 1/32" and anywhere in-
between. Unlike planers which often have a minimum length
requirement of a foot or more, the JET 16-32 Plus Drum Sander can
Being able to sand
safely handle pieces as short as 2 ¼". The open frame design also
wood from 3"-thick
lets you sand pieces up to 32"-wide by making two passes. An easy
down to 1/32"-thick
gives the JET 16-32
to use camber adjustment makes it easy to prevent "witness marks"
Plus exceptional
when making two passes on wide boards.
versatility.
The infinitely variable feed rate and the wide range of sanding grits available make a
great team allowing the JET 16-32 Plus Drum Sander to handle fast rough work or fine
sanding on any species of wood. The generous, stable conveyor platform makes truing
material very accurate while smoothing the surface at
the same time.

Power and Control

The JET 16-32 Plus Drum Sander actually has two high
quality motors. A 1 1/2HP, (rated using continuous
duty cycle) 1 phase, 110V, 14 amp spins the sanding
drum at a consistent 1725 RPM while a direct drive 43-
in.-lbs torque motor drives the conveyor belt separately.
The JET 16-32 Plus Drum
Sander has the power,
durability and accuracy you
need.
Twin motors provide the sanding power
you need along with fine control of the
conveyor.
