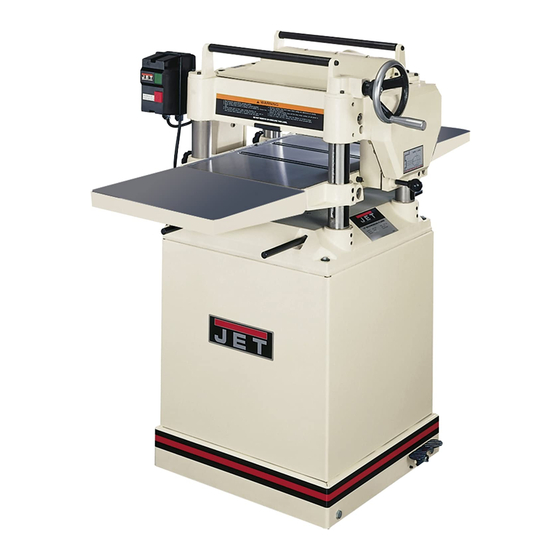

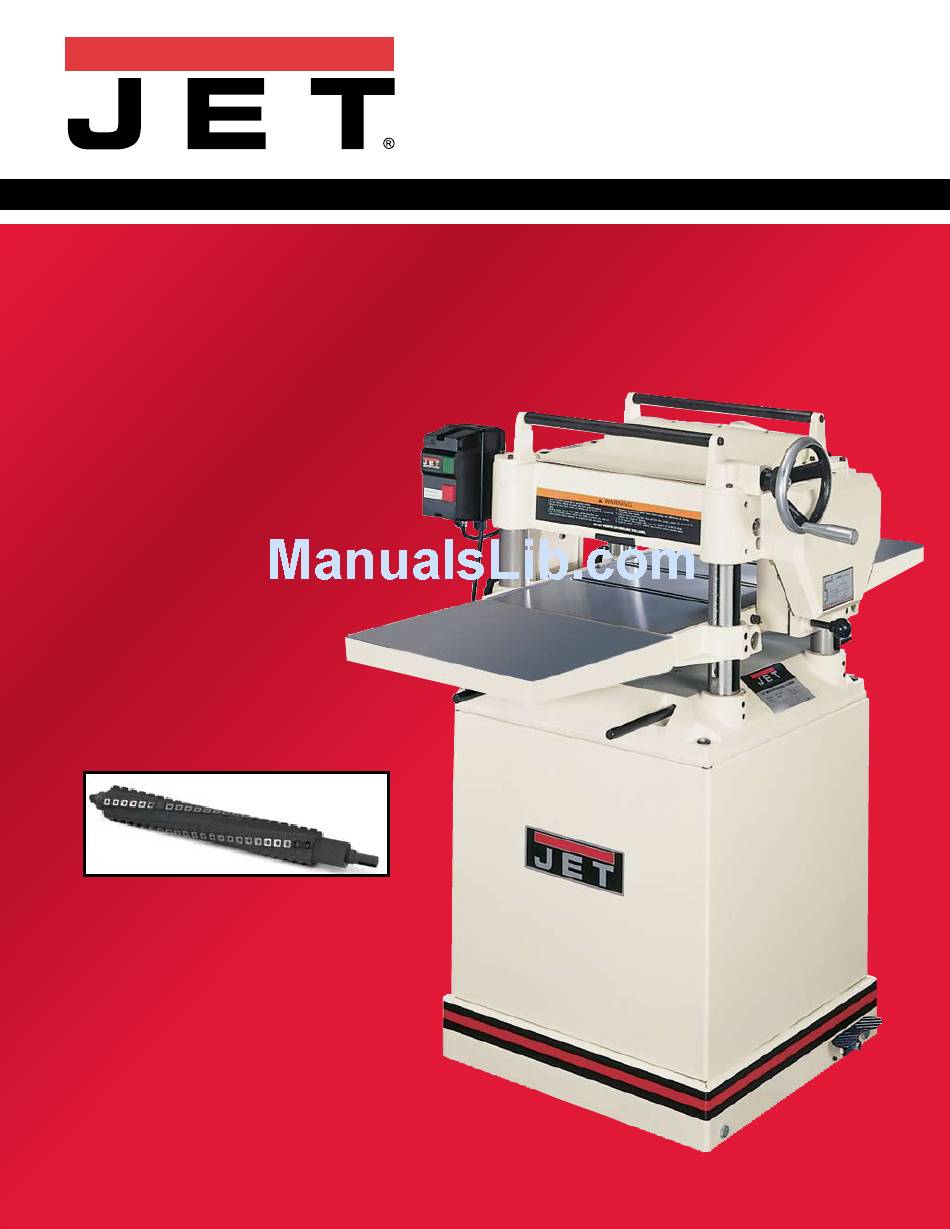

15" HH PLANER
This new 15" planer has a helical
style cutterhead that provides
unmatched surface finish and much
quieter operation. The indexable
carbide inserts make blade changes
easier than ever before. A 3HP motor
and solid cast iron infeed and outfeed
tables are just a few of the other
features that round out this well
designed machine.
Helical head with indexable carbide inserts
makes better finish cuts in material.
Stock No. 900499
10m
07/07
©2007 WmH TOOL GROUP, Inc. All Rights Reserved.
jettools.com
Advertisement
Table of Contents
Related Manuals for Jet JWP-15HH
Summary of Contents for Jet JWP-15HH
- Page 1 15" HH PLANER This new 15" planer has a helical style cutterhead that provides unmatched surface finish and much quieter operation. The indexable carbide inserts make blade changes easier than ever before. A 3HP motor and solid cast iron infeed and outfeed tables are just a few of the other features that round out this well designed machine.
- Page 2 Feed Rate (FPm): Number of Knives: Dust Port Diameter (OD/in.): Dust Collection minimum CFm Required: Blade Size: Amps: motor HP: motor Phase: motor Voltage: 708543 JWP-15HH 14-7/8 2-7/8 4500 16 and 20 68 carbide inserts 150 x 1 x 1/8 230V jettools.com...
