Electrical Schematic-Bdb-1340A - Jet BDB-1340A Parts List

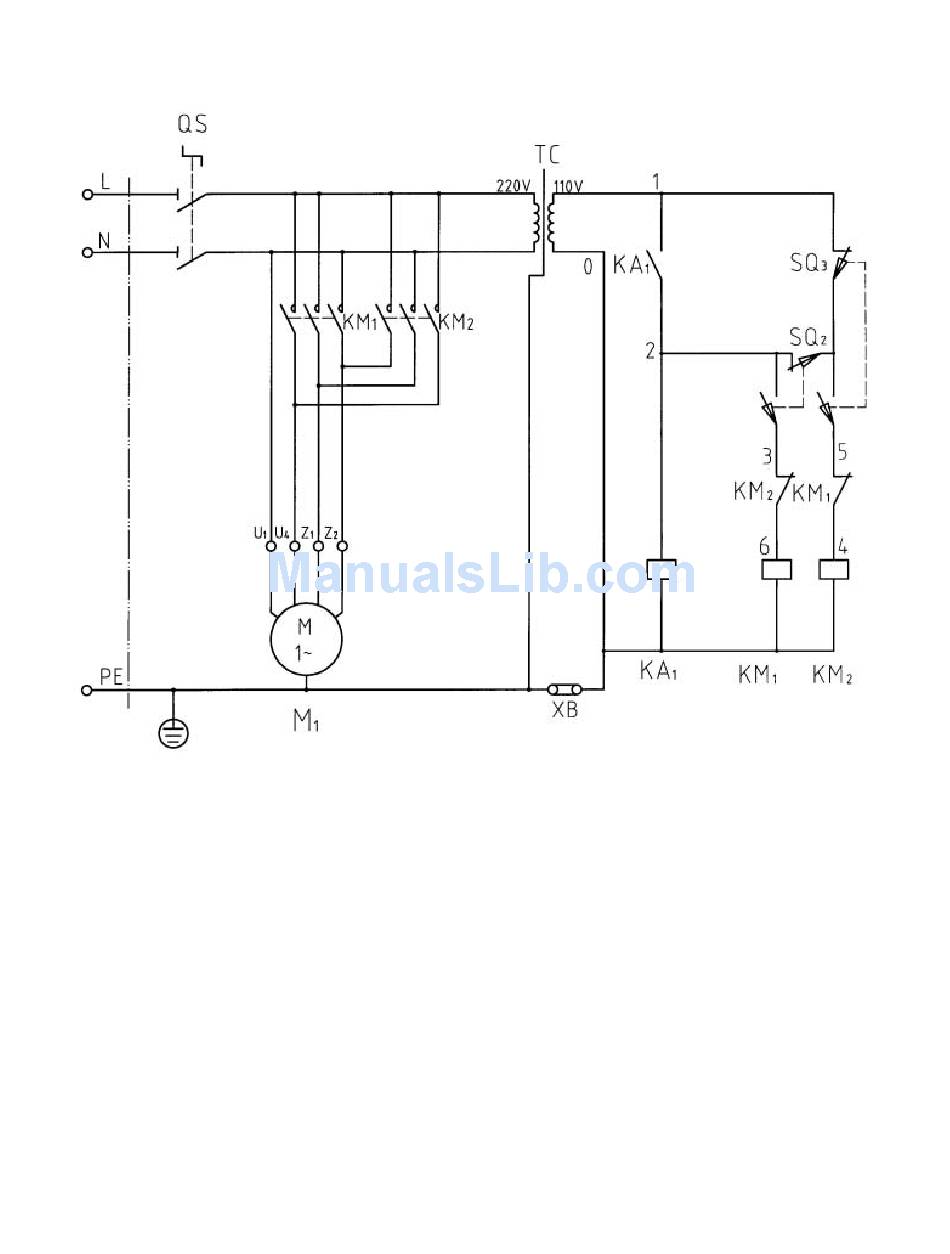

Electrical Schematic-BDB-1340A

Electrical Schematic - BDB-1340A
Index Part
No. No. Description Size Qty.
1 ........GHB1340-KA1 ............. Relay........................................................................CA2-DN140............... 1
2 ........GHB1340-KM1............. A.C. Contactor ..........................................................LC1-D259.................. 1
3 ........GHB1340-KM2............. A.C. Contactor ..........................................................LC1-D259.................. 1
4 ........GHB1340-TC ............... Control Transformer..................................................JBK3-63 .................... 1
5 ........GHB1340A-SQ2........... Stroke Switch............................................................LXW5-11D1............... 1
6..........GHB1340A-SQ3........... Stroke Switch............................................................LXW5-11D1............... 1
7..........GHB1340-XT1.............. Wiring Board.............................................................JHY1-32 .................... 1
8..........GHB1340-XT2.............. Wiring Board.............................................................JHY1-16 .................... 1
9..........GHB1340-XB ............... Copper Plate (for grounding)....................................................................... 1
45
