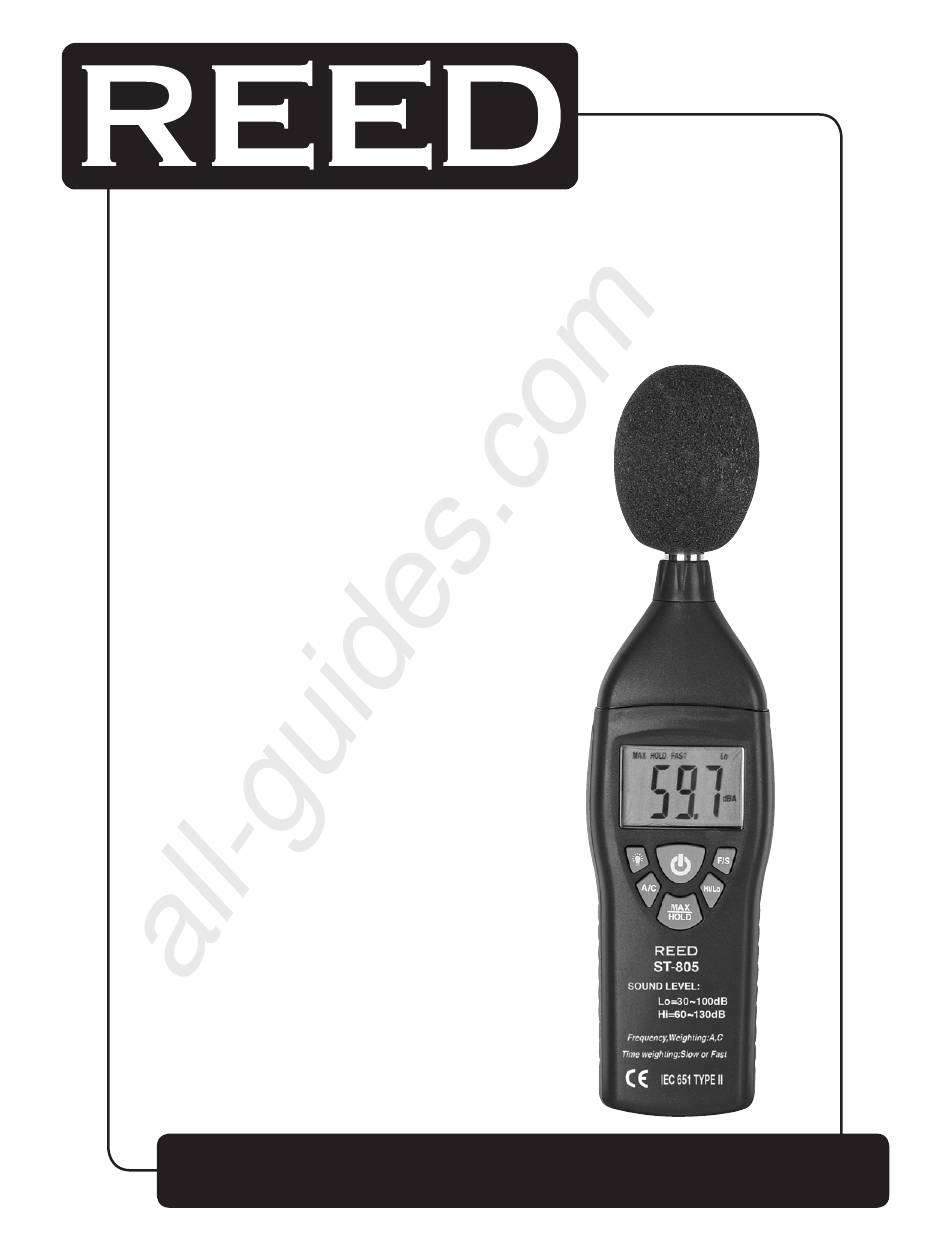

- Page 1 All manuals and user guides at all-guides.com Black ST-805 Model Pantone 534 Blue - 100/80/30/5 Sound Level Meter Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...
- Page 2 All manuals and user guides at all-guides.com Table of Contents Safety .................... 2 Specifications ................3 Instrument Description ...............4-6 Operating Instructions ..............6-7 Battery Replacement ..............7 Safety Read the following safety information carefully before attempting to operate or service this meter. Use this meter only as specified in this manual;...
- Page 3 All manuals and user guides at all-guides.com Specifications Standard Applied: IEC651 type 2, ANSI S1.4 type 2 Frequency Range: 31.5Hz~8KHz Measuring Level Range: 30~130 dB Resolution: 0.1 dB Accuracy: ±1.4 dB (under reference conditions) Frequency Weighting: A & C Time Weighting: Fast: 125mS: Slow: 1 sec.

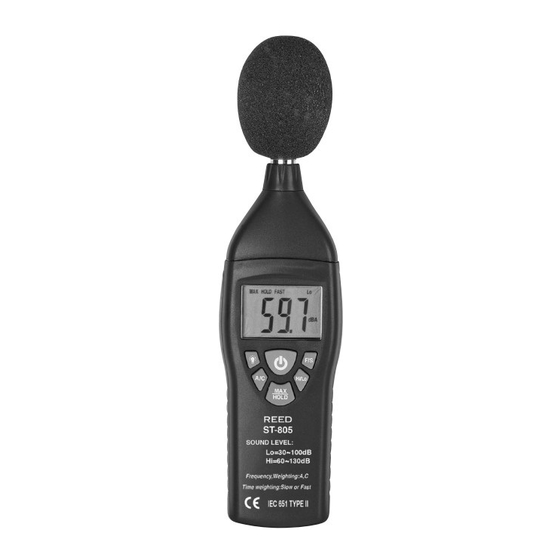

- Page 4 All manuals and user guides at all-guides.com Instrument Description Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100...
- Page 5 All manuals and user guides at all-guides.com 1. Windscreen If you operate at wind speeds over 10m/sec, please put protective accessories in front of the microphone. 2. display SYMBOL FUNCTION 4-digits Max. value hold OVER Over range Fast response Slow response A-weighting C-weighting Low range...
- Page 6 All manuals and user guides at all-guides.com MAX/HOLD 8. MAX/Hold Button The MAX Hold position is used to measure the maximum level of sounds. The maximum measured level is updated continuously. Pressing the button a second time will release the maximum hold function and allow another measurement.
- Page 7 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com...
- Page 8 All manuals and user guides at all-guides.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow...
