Summary of Contents for REED SD-4307

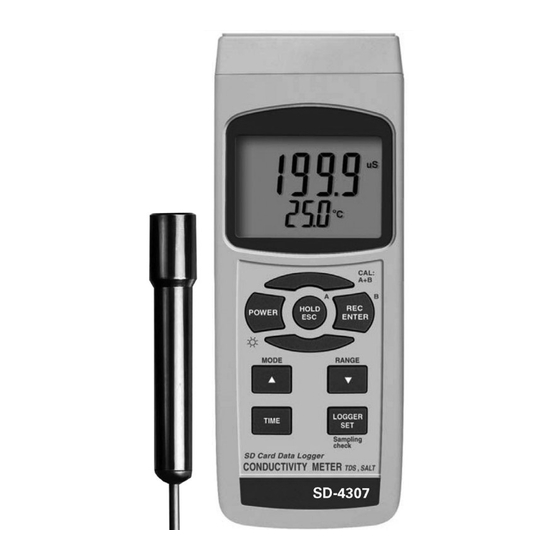

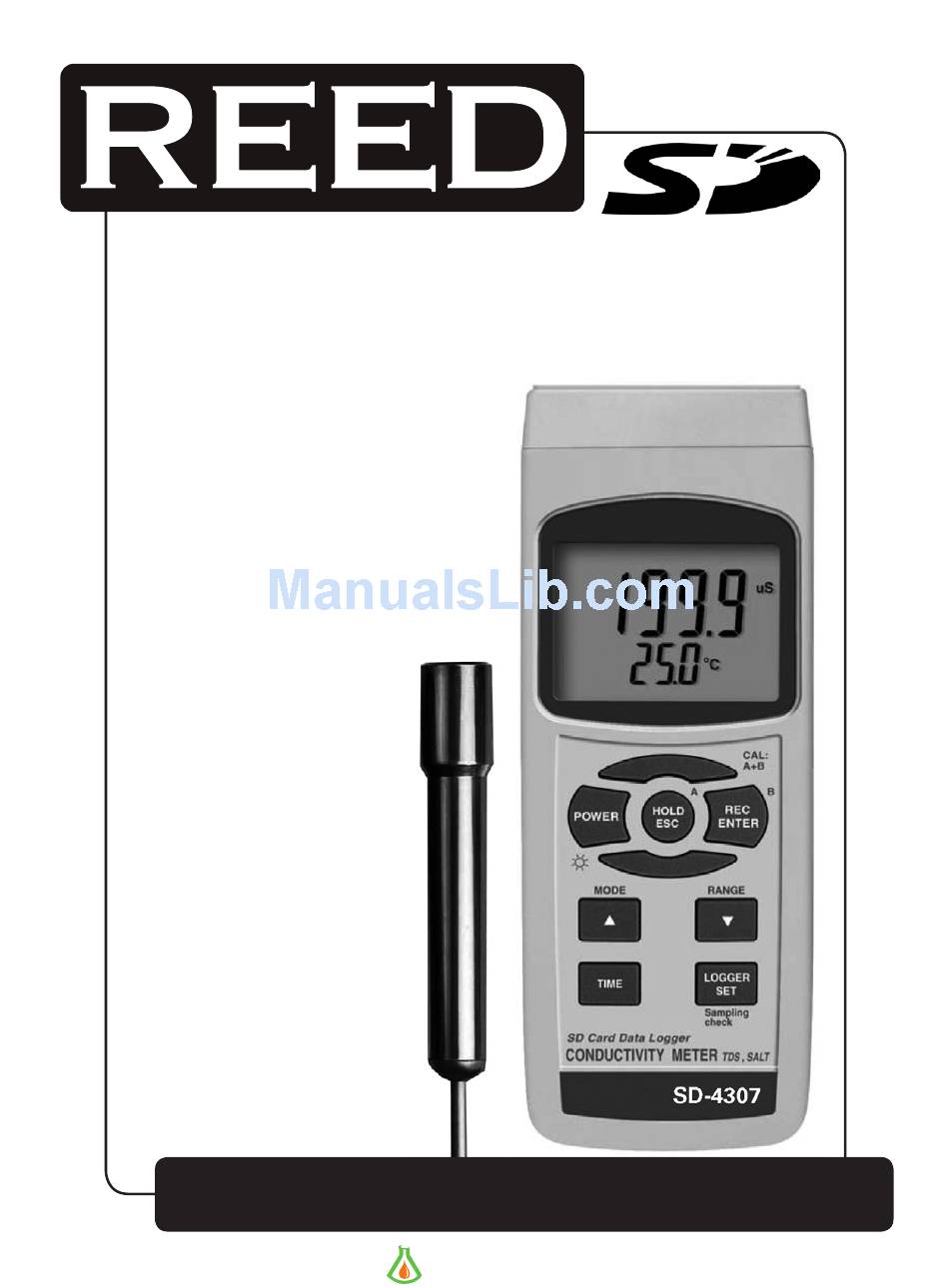

- Page 1 Rich Black - 20/20/20/100 SD-4307 Model Salt/TDS/Conductivity Only if you REALLY need them: Datalogger Instruction Manual reedinstruments GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www. .com The Laboratory Supply Company!
-
Page 2: Table Of Contents
Table of Contents Features ...................... 3 Specifications ..................4-5 Instrument Description ................6 Operating Instructions ................7-11 Function selection..................7 Conductivity Measurement ..............7 Changing the Air velocity unit ..............7 Manual Range ..................7 Zero Adjustment ..................8 TDS Measurement .................. 8 Salt Measurement ................... 8 Calibration .................... -
Page 3: Features
Features • Multi-purpose meter, measuring Conductivity, TDS (Total dissolved solids), and Salt • Conductivity: 200µS/2mS/20mS/200mS • Salt: 0 to 12% salt (% weight) • Conductivity measurement can select Temp. Coefficient of Measurement Solution • Real time SD memory card datalogger with a built-in clock and calendar •... -
Page 4: Specifications
Specifications Circuit: Custom microprocessor LSI circuit Display: 52mm x 38mm LCD with backlight Conductivity Units: µS, mS TDS Units: Salt Units: % (of weight) Conductivity Probe: Carbon rod electrode Auto Sampling Time: 1 second to 9 hours Memory Card: SD memory card, 1 GB to 16 GB Sampling Time of Display: Approx. - Page 5 0.5% Salt value Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com...
-
Page 6: Instrument Description
Instrument Description 11. Battery Cover Screw 1. Display 12. Tripod Fix Nut 2. Power & Backlight Button 13. Probe Socket 3. Hold & ESC Button 14. AC/DC 9V Power Adapter Input 4. REC & Enter Socket 5. Mode & Up Button 15. -
Page 7: Operating Instructions
Operating Instructions Function selection 1) Turn on the meter by pressing the Power Button. To turn the meter off, hold the Power Button for over 2 seconds. 2) The meter has 3 measuring functions to choose from: Conductivity, TDS, and Salt. When the meter is on, press and hold the Function Button. -
Page 8: Zero Adjustment
Zero Adjustment If the probe is not immersed in the measuring solution and the display will not show a Zero Value. Press and hold the Up Button for about 10 sec- onds and the display will then show zero. The Zero function is only valid for the 200µS range and not when the Zero Value is <... -
Page 9: Data Record (Max., Min. Reading)
5) Press the REC Button and HOLD Button at the same time. The display will show the symbol “Cd” and “CAL” 6) Press the Enter Button and the measuring value will show on both the upper and lower Display. Use the Up and Down Buttons to ad- just the upper display value to be the exact same as the standard conductivity value. -
Page 10: Backlight On/Off
Backlight ON/OFF After powering the meter ON, the LCD Backlight will turn on automati- cally. While taking measurements, press the Backlight Button and the LCD Backlight will turn off. Press the Backlight Button once again to turn the LCD Backlight back ON. Datalogger Preparation Before Executing the Datalogger Function: 1) Insert the optional SD card into the SD card socket. -
Page 11: Manual Datalogger
3) Stop Datalogging; while the Datalogger function is paused, press the REC Button for 2 seconds. The “REC” symbol will disappear indicating the Datalogging function has stopped. Manual Datalogger (Set sampling time = 0 seconds) 1) Set sampling time is to 0 second; Press the REC Button, and the “REC”... -
Page 12: Sd Card Data Structure
Value & Unit. Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com... -
Page 13: Advanced Settings
Advanced Settings During normal functions (not Datalogging), press and hold the SET Button for 2 seconds to enter the “Advanced Setting” mode. Press the Next But- ton scroll through eight main functions, shown on the lower display: dAtE Set clock time (Year/Month/Date, Hour/Minute/Second) Set SD card Decimal character PoFF Auto power OFF management bEEP Set beeper sound ON/OFF... -
Page 14: Setting The Decimal Point On The Sd Card
Setting the Decimal point on the SD Card 1) When the lower display shows “dEC”, use the Up or Down Buttons to toggle between “bASIC” (“.” Decimal Point) or “Euro” (“,” Deci- mal Point). 2) After the Decimal point character has been selected, press the Enter Button to save the setting as the default. -
Page 15: Set Sampling Time
Set sampling time 1) When the lower display shows “SP-t”, use the Up or Down Buttons to adjust the value. 2) After the Sampling value is selected, press the press the Enter Button to save the setting as the default. To exit “Advanced Settings”, press the Esc Button. -
Page 16: Pc Serial Interface
PC Serial Interface The instrument features an PC output via 3.5 mm terminal. The connector output is a 16 digit data stream which can be utilized to the user’s specific application. An USB RS232 lead with the following connection will be required to link the instrument with the PC serial input. -
Page 17: System Reset
34 Blue Yellow - 0/27/100/0 23 Yellow Red - 10/100/100/5 85 Red For service on this or any other REED product or information on other Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5... - Page 18 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow ________________________________________________ Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow Blue - 100/80/30/5 34 Blue reedinstruments Rich Black -...
- Page 19 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow ________________________________________________ Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow Blue - 100/80/30/5 34 Blue reedinstruments Rich Black -...
- Page 20 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow ________________________________________________ Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow Blue - 100/80/30/5 34 Blue reedinstruments Rich Black -...
